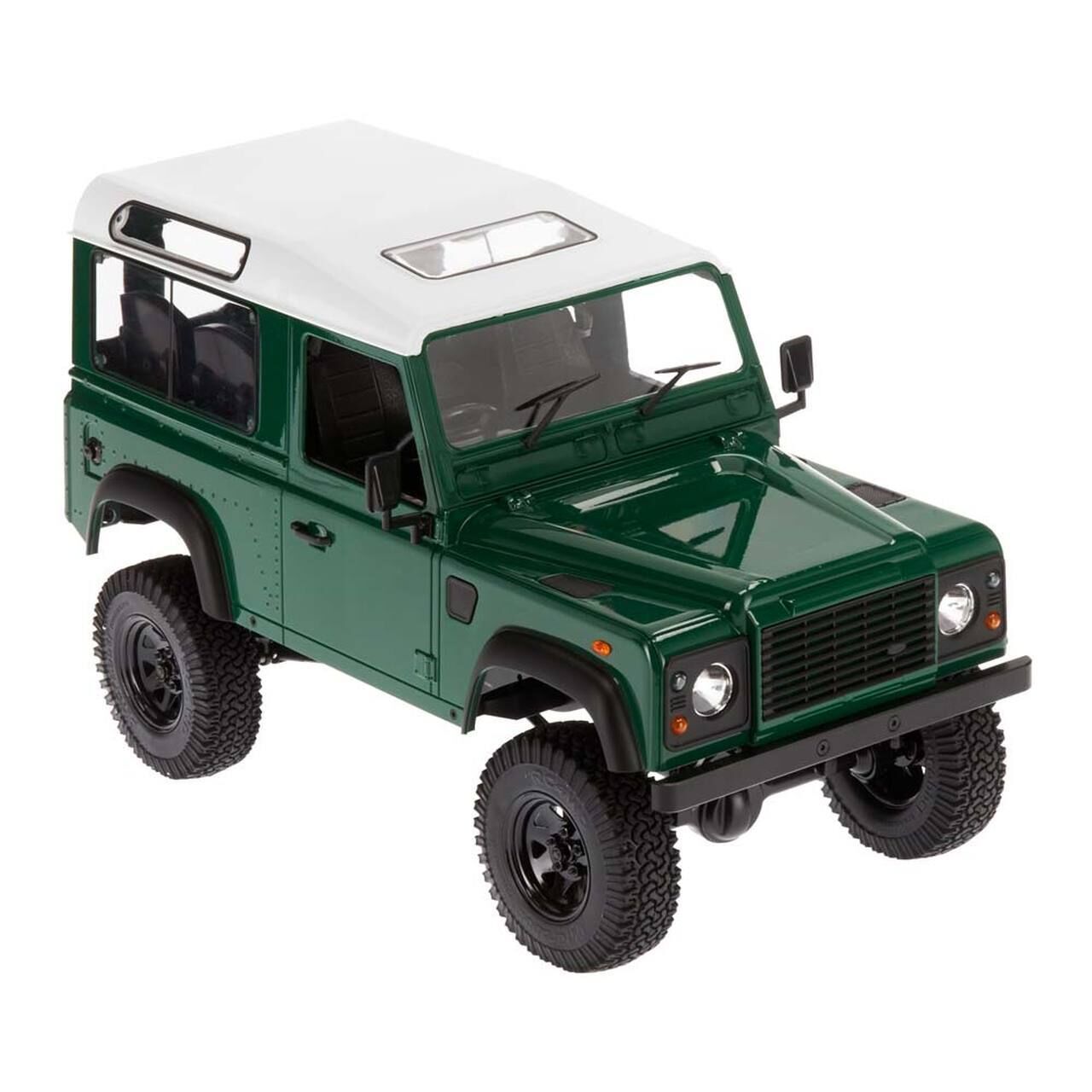

Rc 4Wd Gelande Ii Rtr Truck Kit with D90 Body Set - Z-Rtr0032

Experience the versatility and advanced design of the Gelande 2 for yourself. Packed full of capability, the Gelande 2 is ready for any challenging condition. Put your off-road driving to the test and see why the G2 can easily maneuver extreme descents and climb with ease.

The G2 is built with quality materials and craftsmanship like the R3 single speed transmission providing power down to the transfer case and out to the Yota II axles.

The G2 comes with a 4 link rear and 3 link panhard bar suspension as a standard feature. The chassis mounted servo is out of view for a more scale appearance.

The G2 is completely versatile and can pull off many looks and styles. With the countless options available, RC4WD let's you customize your G2 exactly how you want without sacrificing performance. From emergency and expedition vehicles to daily drivers and hard core rock climbing rigs, the core of the G2 is built for the true off-road enthusiast!

The G2 now includes everything you need down to the battery and charger to start hitting the trails right out of the box!

Are you ready for your off-road experience?

• Cast Metal Axles with Locked differentials
• Custom Designed for True to Scale Looks
• Twister High Torque Metal Gear Digital Servo
• Chassis Mounted Steering servo
• 540 Crawler Brushed Motor 45T
• 3 Link Front and 4 Link Rear Suspension
• Super Grip Dirt Grabber Tires
• R3 Single Speed Transmission
• Realistic Aluminum Ladder Frame Chassis
• Center Mounted Realistic 4x4 Transfer Case
• Outcry II Waterproof ESC
• Plastic Fuel Cell Receiver Box
• Dual Spring Oil Filled Shock Absorbers
• 1.9" Stamped Steel Beadlocks W/Lug Nuts
• 6-Cell 3000MAH NiMH Battery Pack
• NiMH Peak Battery Charger

Hammer Transfer Case

• Ratio: 1.47:1
• Gears: Wide 0.8 Mod Hardened Steel Gears
• Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Single Speed Transmission

• Ratios: Pinion/Spur 14/64 = 4.57:1 Internal Ratio: 1.78:1
• Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

Cast Yota II Axles

• Ratio: 15/40 = 2.67:1
• Width at Hex: 180.5mm

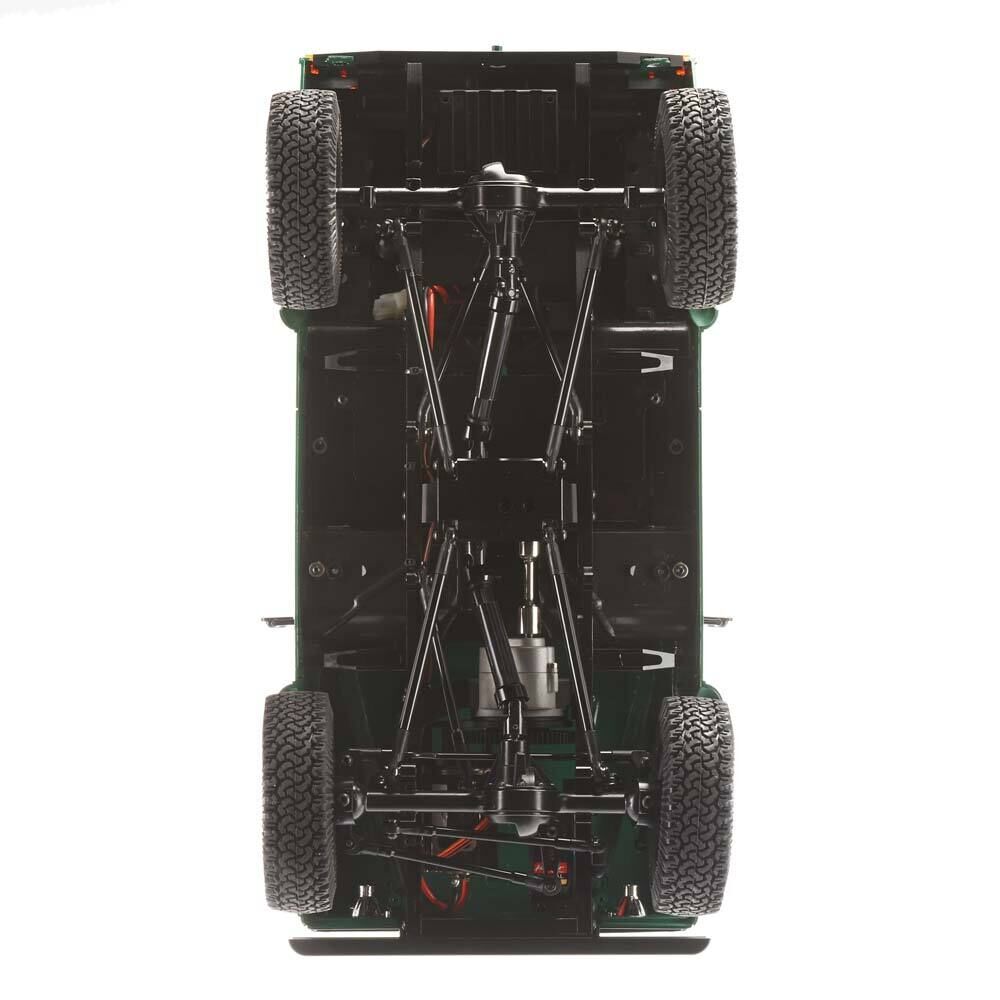

G2 Suspension

• Double Triangulated 4 Link Rear Suspension
• 3 Link Suspension with Panhard Bar

Shock Absorbers

• Dual Spring 80mm Shocks: Can be Oil Filled

Wheels

• Type: 1.9'' 5 Lug Wagon Wheels
• Hub: Pin Type
• Width: 25mm
• Back Spacing: 11mm

Bumpers
Machined Billet Aluminum, Lightweight

G2 Truck Dimensions

• Wheelbase: 275mm (10.8")
• Width: 220mm (8.7")
• Height: 254mm (10")
• Ground Clearance: 55mm (2.2")
• Final Drive Ratio: 31.9:1
• Weight: 7.08Lbs / 3.21Kg
