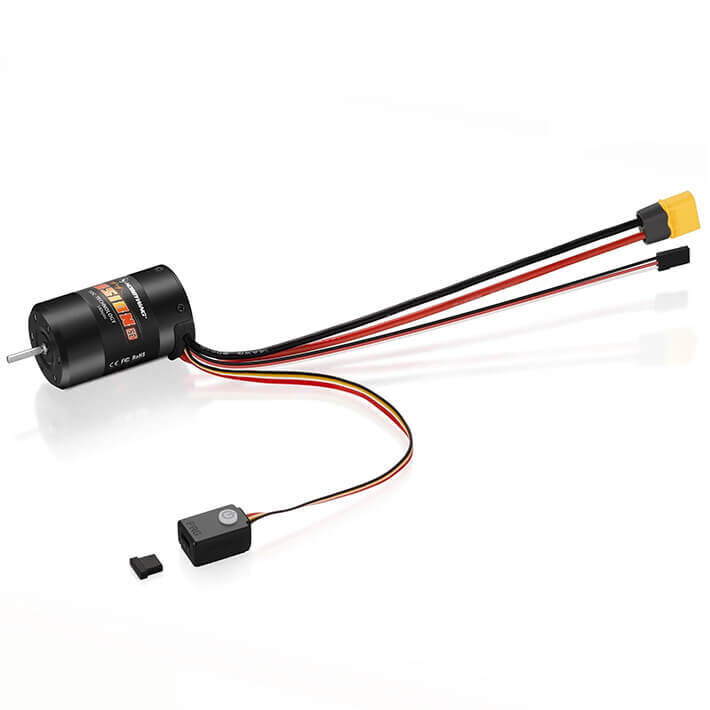

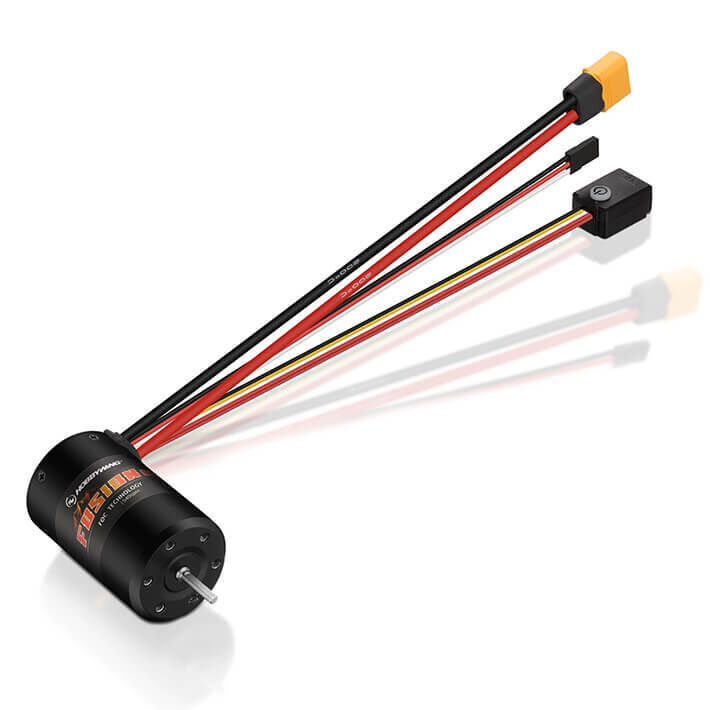

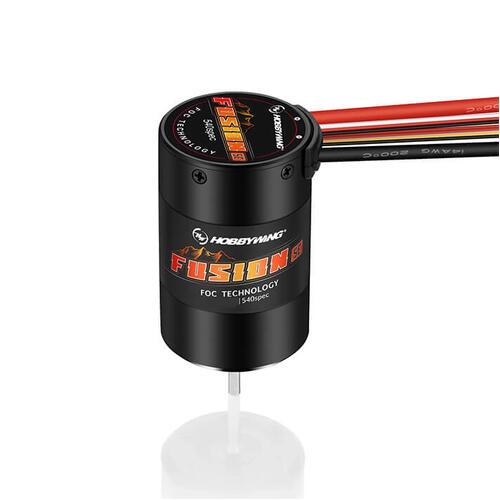

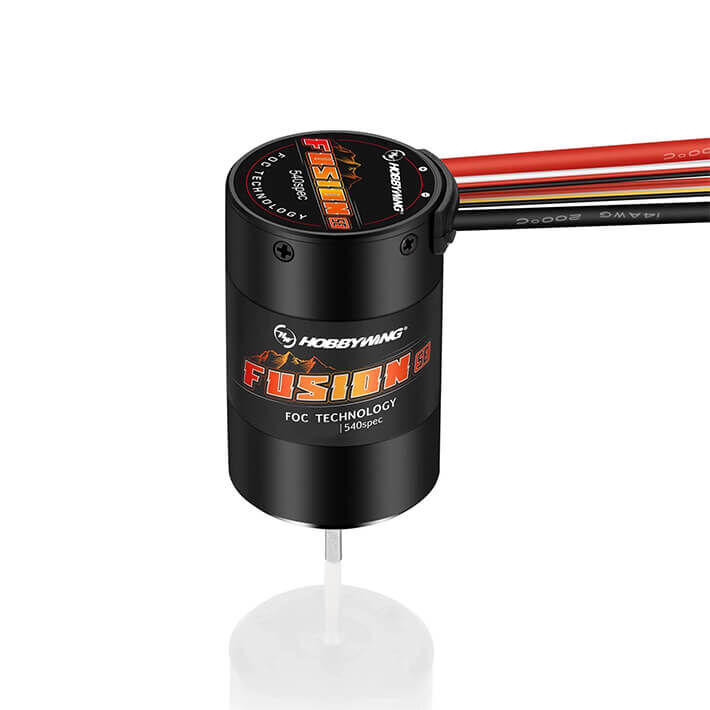

Quicrun fusion se for crawler-1800kv 540spec

specifications

type

scale: 1/10th
brushed/brushless: bl
sensored/sensorless: sd
waterproof: waterproof

specifications

cont. /peak current: 40a
input voltage: 2-3s lipo/6-9 cell nimh
bec output: 6v/7. 4v@4a 6a peak
motor kv: 1800kv
diameter/length of motor: 36mm / 58. 1mm
shaft diameter / exposed shaft length: 3. 175mm / 16. 5mm
motor poles:4

wires and; connectors

input wires: red-14awg-200mm*1 /' black-14awg-200mm*1
input connectors: xt60
(note: all the wire length above is the original length, not the length you see from the outside. )

esc programming via

set button on esc: not supporterd
led program box: supported
lcd program box: not supported
ota programmer: not supported
program port: independent programming interface (switch positionm)

firmware

firmware upgrade: not supported

size and; weight

size: 36 x 58. 1mm
weight: 201g (including wires and connectors)

applications

venicles: 1/10th rock crawler
