Q200 Quattro AC/DC Charger (WAS SK-100104 CODE UPDATED)

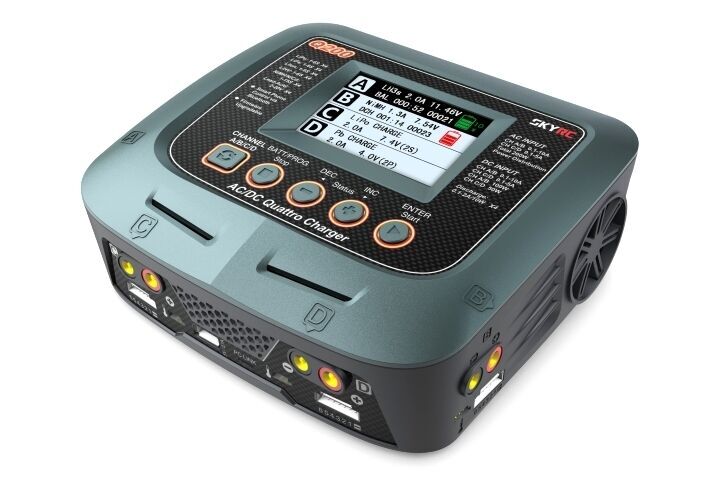

SkyRC Q200 is a Quad-channel charger with 4 independent circuits, which can charge four different kinds of batteries simultaneously. The charger adopts a 480 —320 color LCD display, and paired channels (AAND;C or BAND;D) support power distribution in AC mode. Moreover, users could either connect it to PC or mobile device to further expand their using experience. Firmware upgrade is available via PC software interface.

SCAN TO GO
A very unique feature of Q200 is SCAN TO GO (automatically charging system). As the range of battery types and capacity becomes more and more, each battery requires its own dedicated charging process. It is easy to set up the charger incorrectly for a specific type of battery, resulting damage the battery or even cause accident.

The revolutionary SCAN TO GO provides a solution to this problem by allowing the user to assign a QR Code which contains all the relevant data for the battery for charging or discharging. The user can create a unique QR Code by using € œSkyCharger €  apps. Print it and paste it on the battery.

Using your smart phone and launch € œSkyCharger €  app. Since all the essential information is stored in the QR Code. All you need to do is press the Scan button, and the charge or discharge process will start automatically.

Power Distribution
Q200 supports power distribution in AC mode. For example, Channel B is 79W, then Channel D will be 21W, but total power will remain 100W. Channel A and C works the same way.

LiHV Mode Available
Q200 is capable of charging / discharging the new generation of Lithium battery whose maximum voltage is 4.35V.

Voltage Calibration
During the manufacturing process every Q200 production unit gets tested and calibrated after highest factory standards. Ambitious users who trust their own expensive equipment more or who prefer their personal fluke to serve as reference have the possibility to adjust the Q200 factory calibration by a few counts.

The Bluetooth 4.0 connectivity allows the user to remote control and monitor the Q200 comfortably through an app on a portable device such as smartphone, iPad, or iPhone. The iOS app can be downloaded from iTunes Store, the Android app from Google Play Store. Operation of the app is self-explanatory and the same on iOS and on Android. Explicit pairing is not required; after download and installation just activate Bluetooth on your mobile device and launch the app. Q200 and your device will establish Bluetooth connection automatically.
