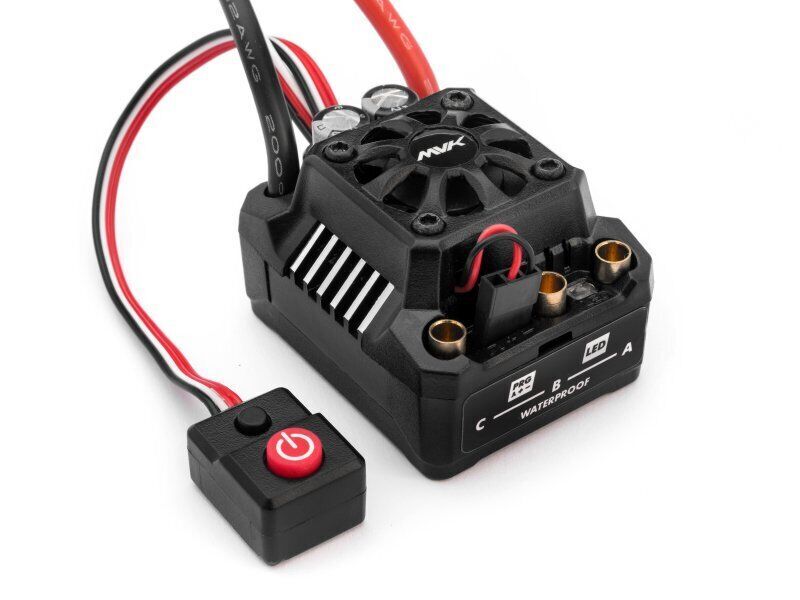

150244 - FLX10-3S100 Flux ESC

The FLX10-3S100 Flux ESC is the perfect match for theFLX10-3665-3100KV 1/10th scale brushless motor - it's able to pumpup to 100 amps of power to the motor for amazing stunts, colossaltop speeds, and wheel-spinning sideways action!

Complete waterproof protection means you can take your truckequipped with the FLX10-3S100 ESC into territory that would scareoff other drivers: puddles, mud, and more! A large fan sits on topof the case inside a protective cover to keep things cool when theweather's warm and you've been driving hard. Finally, a sealedelectronic push button on/off switch with a long cable let you putthe button just about anywhere you want on your car or truck.

Technical Specifications:
Input Voltage: 2-3S LiPo
Continuous Current: 100A
Burst Current: 650A
Motor Limit: 2S LiPo <5500KV, 3S <3500KV
BEC: 6V/7.4V Switching BEC, 3A Continuous Current
Battery Connector: T-Plug
Motor Connector: 4.0mm Bullet
Dimensions: 49x39.5x347mm (W/Fan)
Weight: 105g
Application: 1/10th Buggy/Monster Truck

The FLX10-3S100 ESC AND; FLX10-3665-3100KV Motor requires verypowerful batteries to get the most out of them - please make surethat you use the right combination! HPI highly recommend the use ofhigh quality LiPo batteries. Using batteries with low ratings, orthe use of lower quality LiPo batteries, may cause damage to yourbatteries and/or speed control. Using batteries below the specifiedratings may void the warranty of the speed controller and/orbatteries.

NOTE: Before driving in wet conditions, make sure that otherelectronics fitted to the vehicle are safe to use (marked aswater-resistant or waterproof), or that they are fully enclosed andprotected from water and moisture (such as in a sealedreceiver/battery case). Fans mounted on speed controllers are notwater resistant - we recommend to disconnect the fan from the ESCbefore driving in wet conditions and allow it to dry fully beforereconnecting the fan power. Lubricate exposed metal drivetrainparts such as bearings, outdrives and diff shafts before driving inwet conditions. Motors are not intended for submerged use and maybe damaged if used when under water. After driving in wetconditions, make sure to rinse off dirt and any corrosive liquidslike saltwater with plain water and re-lubricate metal drivetrainparts.
