Description

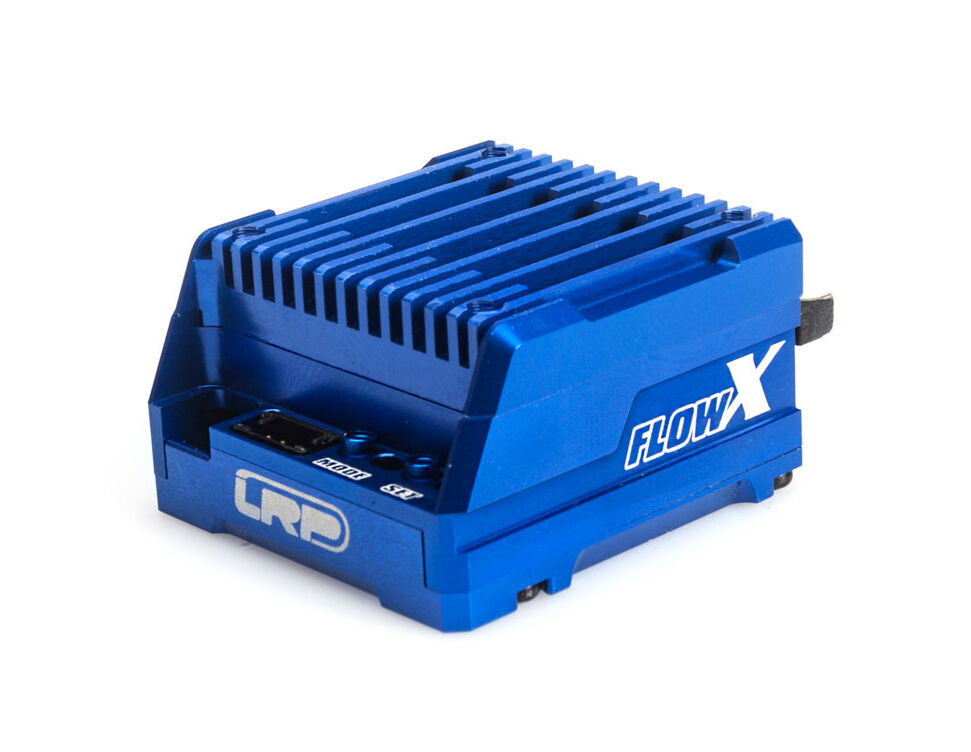

the wait is over! The world champion esc flow x tc spec has been delivered to the first shops. Here you can find a collection of the most important data and specifications.

features:

• lrp. S exclusive customized super fets (csf-01) for highest power output and efficiency
• heavy duty 2. 8mm 8-layer power board for minimum resistance and lowest core temperatures
• ifmar worlds winning v4. 1 software specialized for touring car racing
• bulletproof 6v/6a bec for the most reliable power output
• full aluminium case in exclusive state of the art design

technical data:

• cont. Current: 220a
• peak current: up to 1800a
• voltage input: 7. 4v (2s)
• motor limit: >2. 5t
• bec: 6v/6a
• software: v4. 1
• case size: 33. 7x32. 6x19. 8mm
• weight: 44g (excl. Wires)
• power system: sensored brushless
• driving function: forward/brake
• power wires: worksteam 12 awg black
