Description

Latest high-performance mr-04 chassis
now the standard mini-z rwd model!

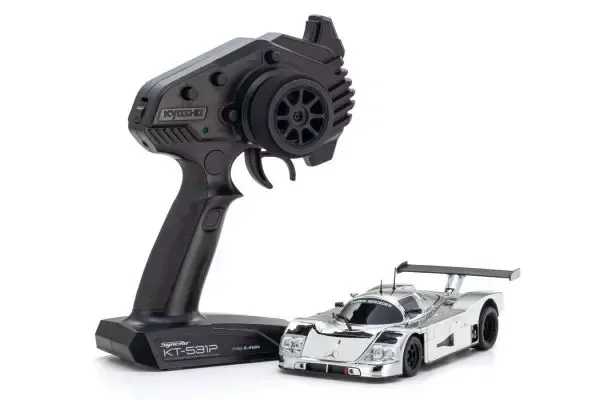

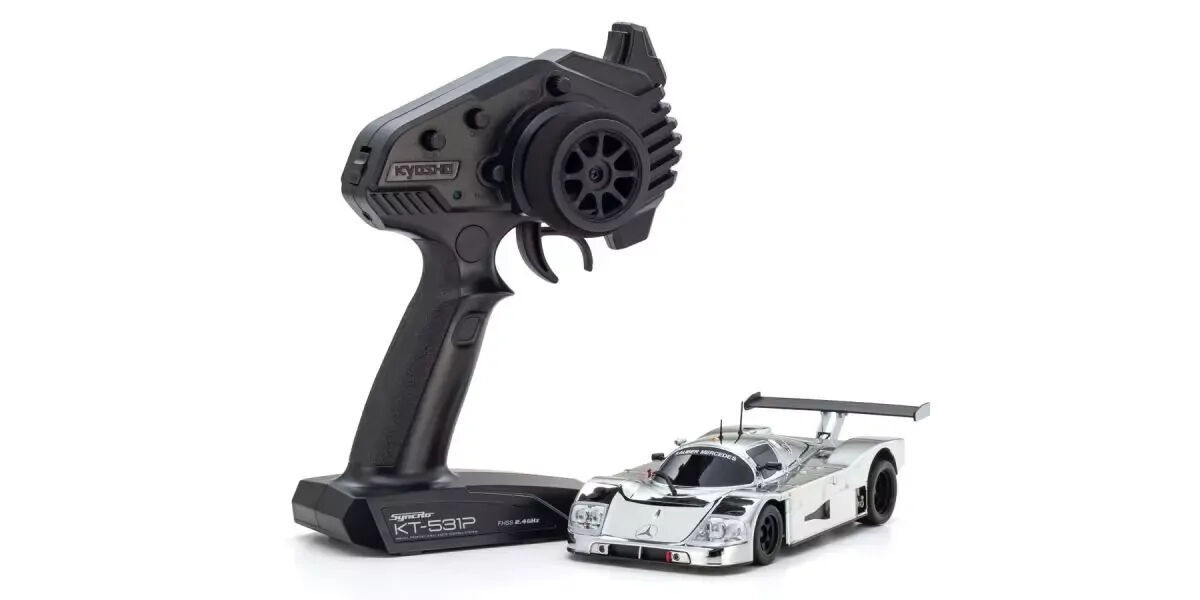

Enjoy the full experience of high-performance r/c car racing right out of the box; just insert batteries into the car and transmitter. This is the simplicity of kyosho readyset packages. The small scale of the mini-z racer is ideal for driving indoors and for people just becoming familiar with r/c cars. This mini-z rwd readyset includes a renewed 2-wheel drive chassis at its core. Previous readyset packages incorporated the 3rd generation mr-03 chassis, but the new rwd readyset includes the 4th generation mr-04 chassis that was first released in 2023. While retaining some basic elements of the mr-03 design, the new mr-04 demonstrated its lower center of gravity and remodeled steering design with blistering speed and excellent handling in the top-of-the-line evo2 debut model. The mr-04 chassis is mounted with r/c system and features a completed body finished to display model standard. This readyset includes the same standard mr-04 chassis as other high-end mr-04 models and includes user-friendly 130-class brushed motor and the reliable syncro kt-531p pistol grip transmitter. Just insert 4 x aaa alkaline batteries into both the car and the transmitter, and youre ready for the fun to begin. High-performance comes straight from the standard setup, but you can tune up for elite-level performance with a wide range of mini-z optional parts. With its dynamic maneuverability display model finish, the updated mr-04 chassis takes the authentic r/c experience to a higher level.

»the separately sold led light unit set (no.mzw429r) cannot be installed on the sauber-mercedes gruppe-c-rennsportwagen c9.

—authentic ep (electric) small scale r/c car that can be driven indoors.
—readyset package includes fully assembled chassis, body and transmitter.
—includes ultra reliable multi-function syncro kt-531p transmitter.
—features the mr-04 chassis, a major evolution from the previous mr-03 model.

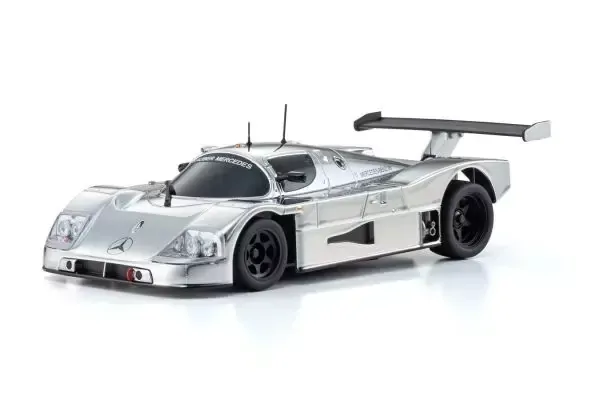

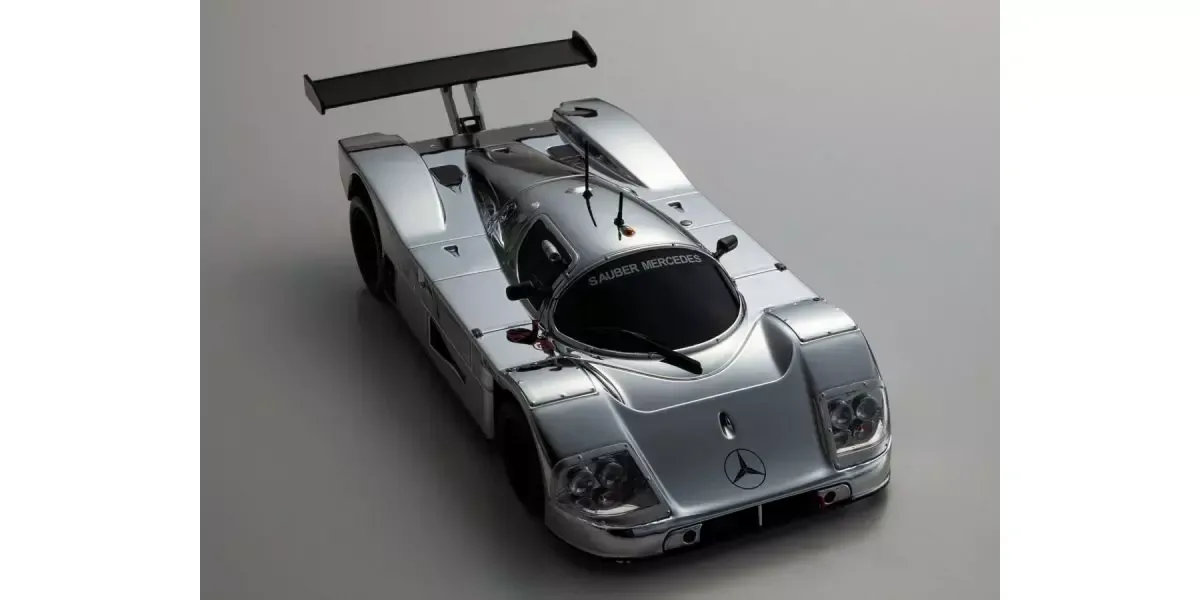

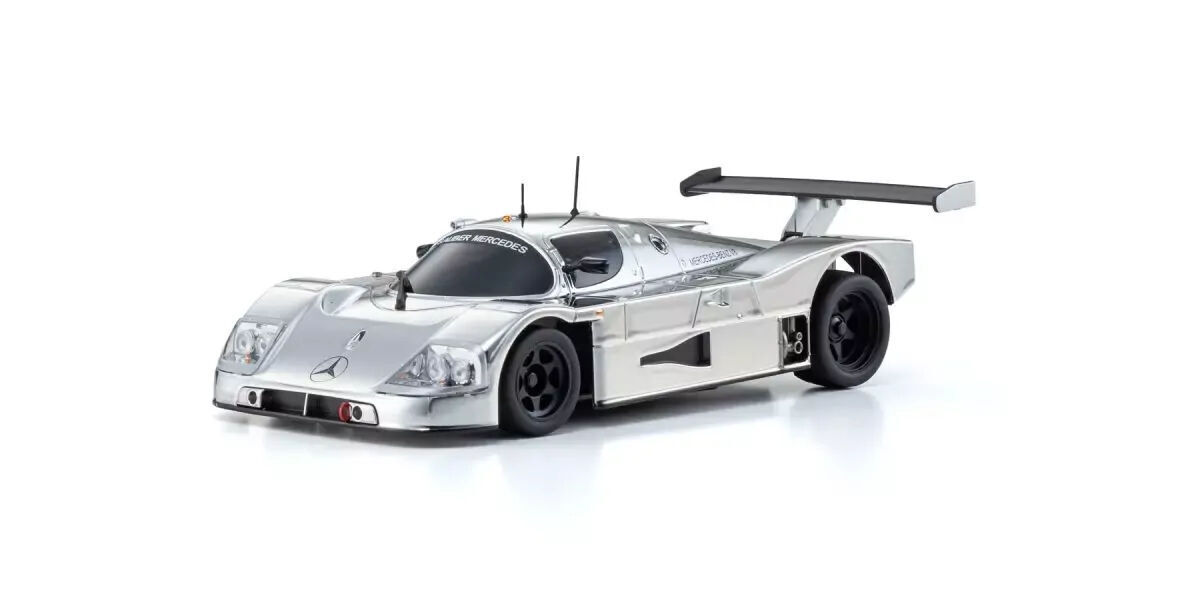

—includes high-quality painted body with decals applied, finished to display model standard.
—compatible with all bodies for the mini-z racer series. *motor case and differential gear assembly suitable for the body are required separately.
—geared differential (gear diff) delivers smooth cornering.
—full ball bearing specifications
—can be fitted with an optional gyro unit (mzw711) for even easier control. Gyro sensitivity can be adjusted using the volume on the chassis.
—compatible with wide range of mini-z racer optional parts so you can enjoy tuning and enhancing your model.



technical data

– length 181.0mm
– width 78.0mm
– height 40.0mm
– chassis mr-04w-lm
– wheelbase 102.0mm (3l)
– tread  f:68.5mm r:66.0mm
– front wheel offset narrow +2.7mm
– rear wheel offset wide  +0.8mm
– weight 179.5g
– r/c system syncro kt-531p

kit content

<readyset contents>
—factory assembled chassis
—pre-painted body, complete with markings
—2.4ghz perfex kt-531p 2.4ghz transmitter
—front tread adjustment parts set
—pinion gears 6t, 7t, 8t, 9t
—spare nuts
—wheel wrench
—pinion gear tool
—tires, wheels

requirement to run

<required for operation>
—aaa-size alkaline batteries x 4 for chassis.
—aaa-size alkaline batteries x 4 or ni-mh batteries x 4 for transmitter

Read More
Specifications
SKU KYO-32362CRG
Barcode # 4548565512782
Brand KYOSHO
