Newly designed IC lap counter provides adaptable installation and precision time measurement.

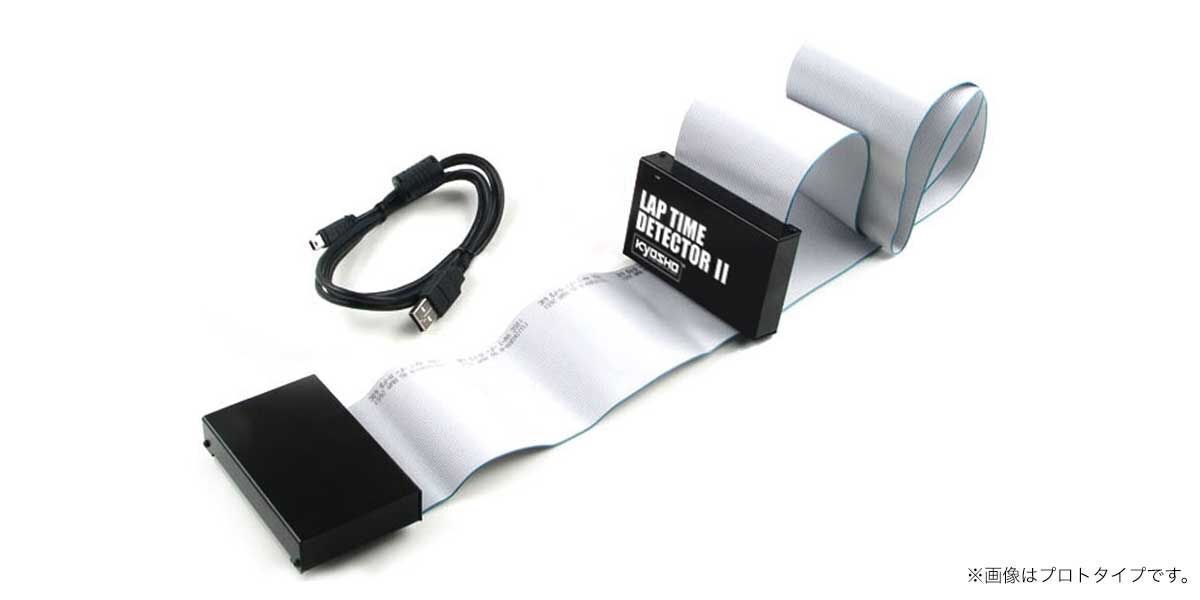

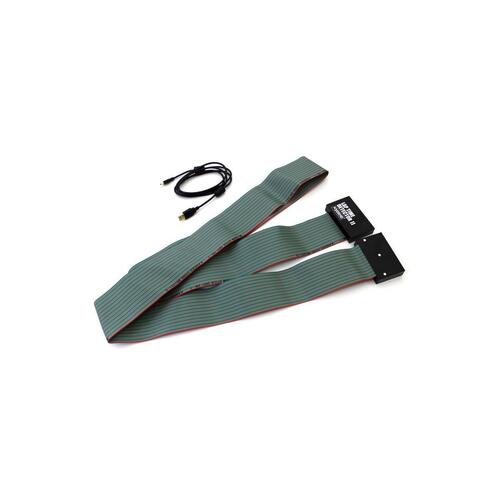

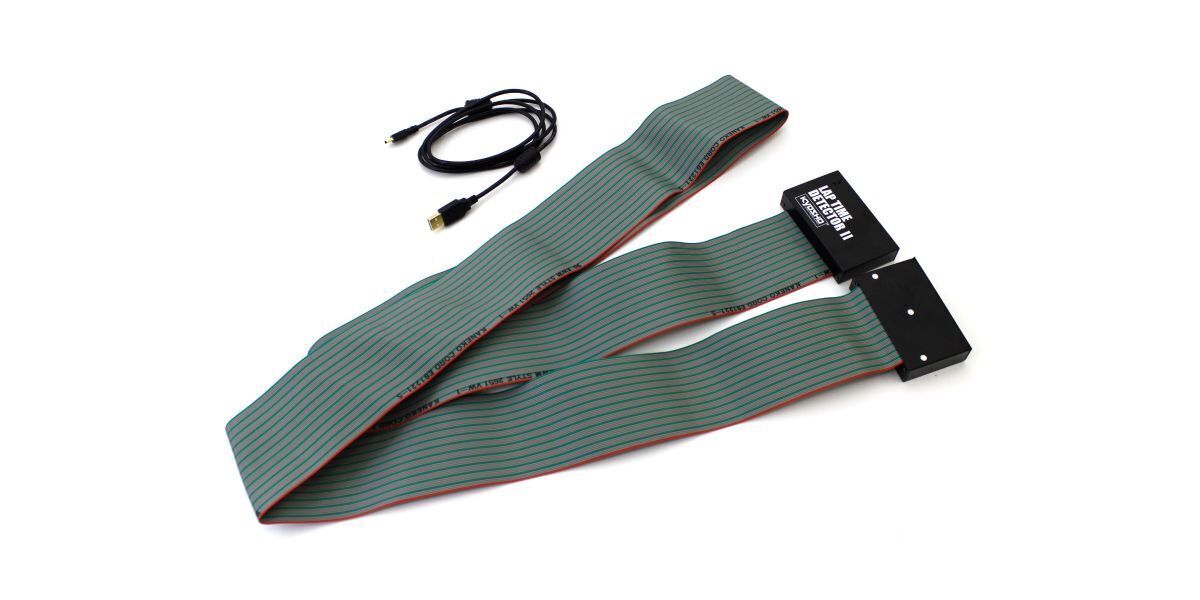

Newly designed next generation KYOSHO IC Tag Lap Counter ‘II’ can be connected to a PC for easy time measurement of small indoor RC cars equipped with IC tags.

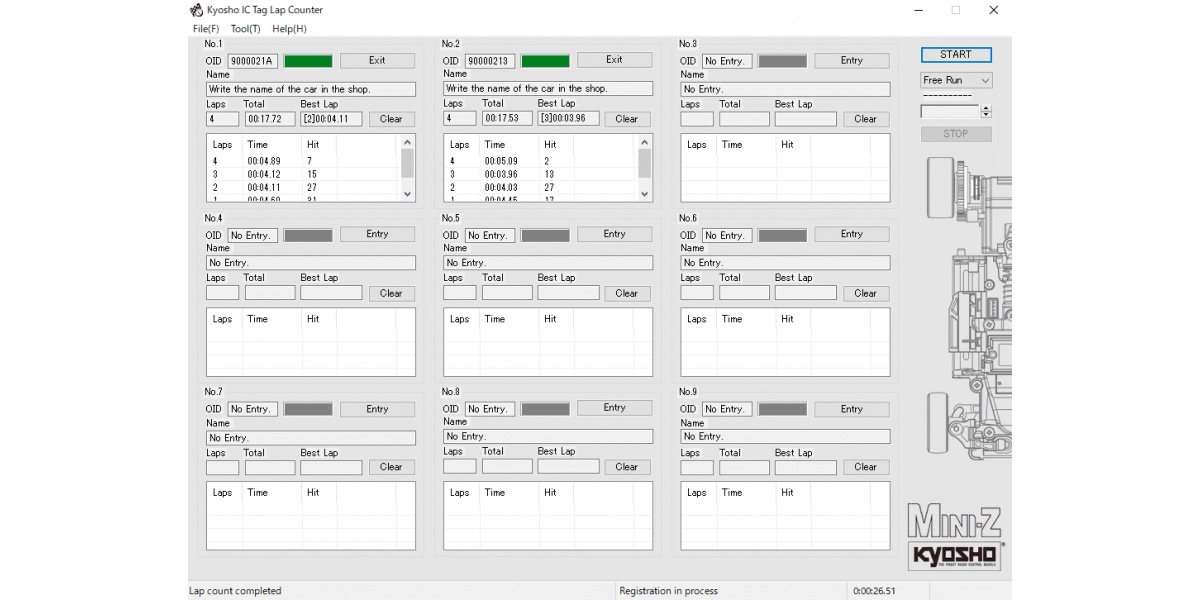

Place the lap time detector (antenna) underneath the carpet or urethane course and the special measuring software records the lap times of cars mounted with IC tags as they pass over it. The evolved ‘II’ version delivers improved usability with the following enhancements.

*Lap time detector length increased from 1m to 2m
The 1m width of Kyosho’s original lap time detector which was compatible with 2 urethane panels of the MINI-Z Grand Prix Circuit 50, has been increased to 2m in the Lap Counter II. Previously, the lap time detector needed to be installed at narrow parts of the course such as chicanes. The 2m detector in the new version can be installed in wider sections on the course allowing greater course width for beginners to drive. Also, due to the extra width, mini RC cars (resin chassis only) other than the Kyosho MINI-Z fitted with an IC tag can be run on indoor carpet courses. Now its easier than ever for course owners to introduce a simpler lap measurement system.

*Max speed of measurement increased to 28km/h (from 17km/h approx.)
Together with increased width, the lap detector can measure at speeds up to 28km/h allowing it to be installed at straight sections of the course. Previous restrictions on installation at chicanes with maximum measurement speed of 17km/h have been lifted, providing increased flexibility for installation and operation.

*Continues measuring other cars, even if a car stops on the measurement line
The Lap Counter II features a new function that continues to measure other cars even if one stops on top of the lap time detector line. The new ‘invalidate car stopped on detector’ function allows the race recording to continue without having to manually adjust times afterwards.
