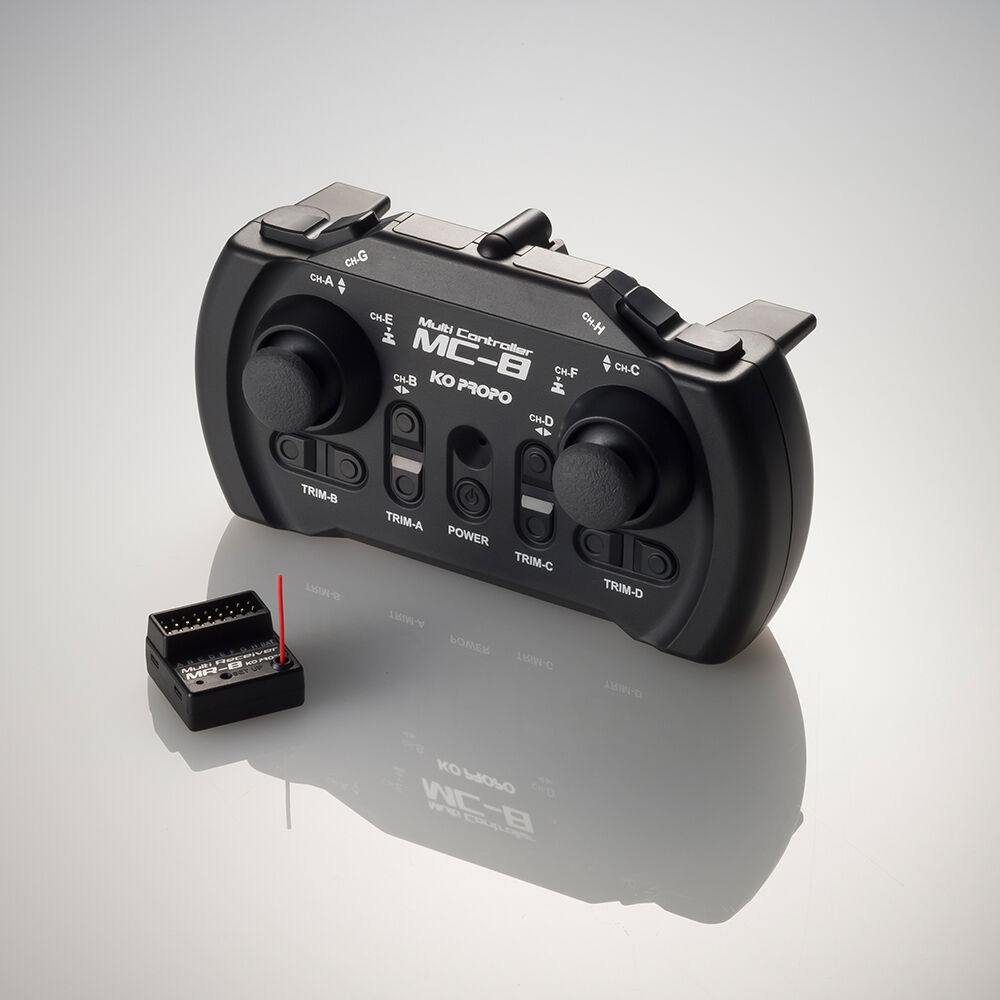

KO PROPO MC-8 2.4GHz MX-F TR set (w/MR-8) - KO80710

[MC-8 Specifications]
ƒ»2.4GHz MX-F Multi controller
ƒ»Dimensions: 150.0 x 84.5 x 61.0mm
ƒ»Weight: 145.5g (not included battery)

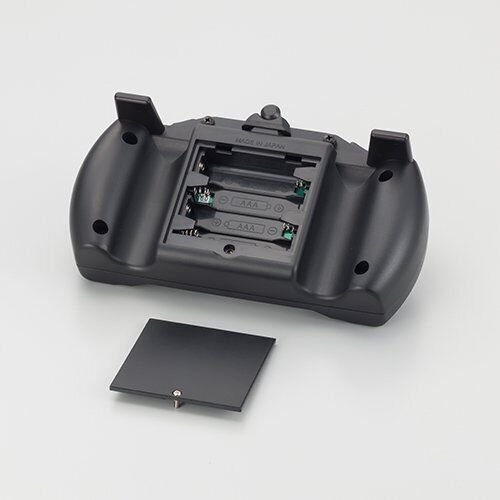

ƒ»Battery: Dry battery AAA x4(Separate sales)
ƒ»Current:less than 50mA
ƒ»Continual use time: 17 hours ( It will be different by each situation.)
ƒ»Number of channels: 8
  Stick operation x4 + Switch operation x4
ƒ»Frequency: 2.4GHz
ƒ»Control distance: each direction 50m
 *It depends on operating conditions and situations of receiving antenna.
ƒ»Compatible receiver: MR-8
*Can not use an FHSS receiver like the KR-211FH.

[MR-8 Specifications]
ƒ»2.4GHz MX-F multi receiver
ƒ»Dimensions:27.0 x 28.0 x 15.0mm
ƒ»Weight: 7.0g
ƒ»Operation voltage: 3.0 - 7.4V
ƒ»Battery types for use: Dry battery, Rechargeable batteries.
    ¼ Ni-MH 3~5s €Li-Fe 1~2s €Li-Po 1s ¼‰
 *Do not mix different types of batteries.
 *Please notice voltage down when using Lithium batteries.
ƒ»Current : less than 40mA (whilw receiving)
ƒ»Number of channels: 8
ƒ»Frequency: 2.4GHz
ƒ»Compatible transmitter: MC-8

Made in Japan

When using with an RC car. € ‹
Generally, 2 channels are to be used, one for steering of car and the other is for throttle (acceleration and brake) of the car. The both are controlled by stick operation. Movement amount of each channel is the same value for each stick. So you can control the machine as you visualize.

Required units for 1/10 touring car or M-Chassis. for example.
ƒ»Radio controller: MC-8 ¼‹MR-8
ƒ»Speed Controller: VFS-FR2
ƒ»Steering Servo: PDS-2503
ƒ»Battery Lithium Ferrite battery ¼ Li-Fe 2cell ¼‰

Required units for Star unit, for example.
ƒ»Radio Controller: MC-8 ¼‹MR-8
ƒ»Speed Controller: MD-1 RC Car ESC Type or MD-1 Quick Reverse Type
ƒ»Steering Servo: PDS-2503
ƒ»Battery: AAA Alkaline battery
ƒ»Switch harness BEC ¼ for MR-8 ¼‰

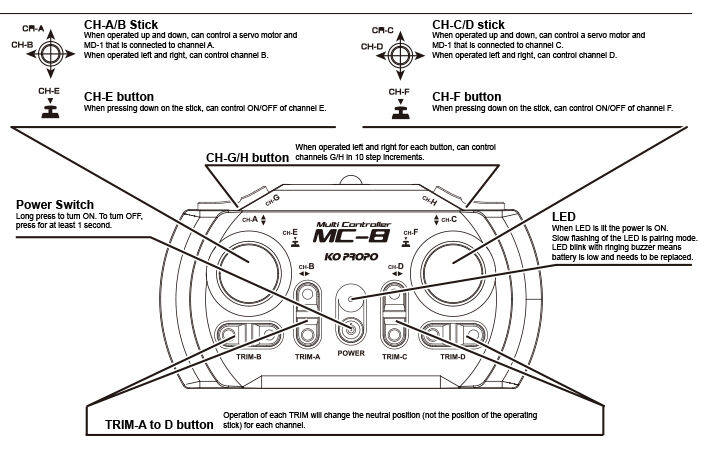

You can select operation method by channel setting.
1)If you assign the steering to CH-B, throttle to CH-C; you can operate like a game controller.
2)If you assign the steering to CH-D, throttle to CH-A, you can operate like a stick radio for general RC cars.

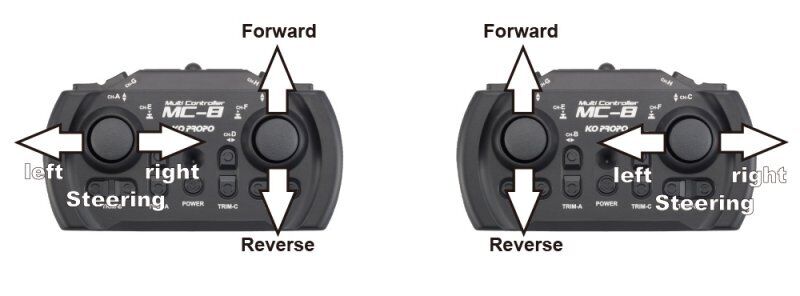

1,Setting like a game controller.                         2, Setting like a RC stick transmitter.
