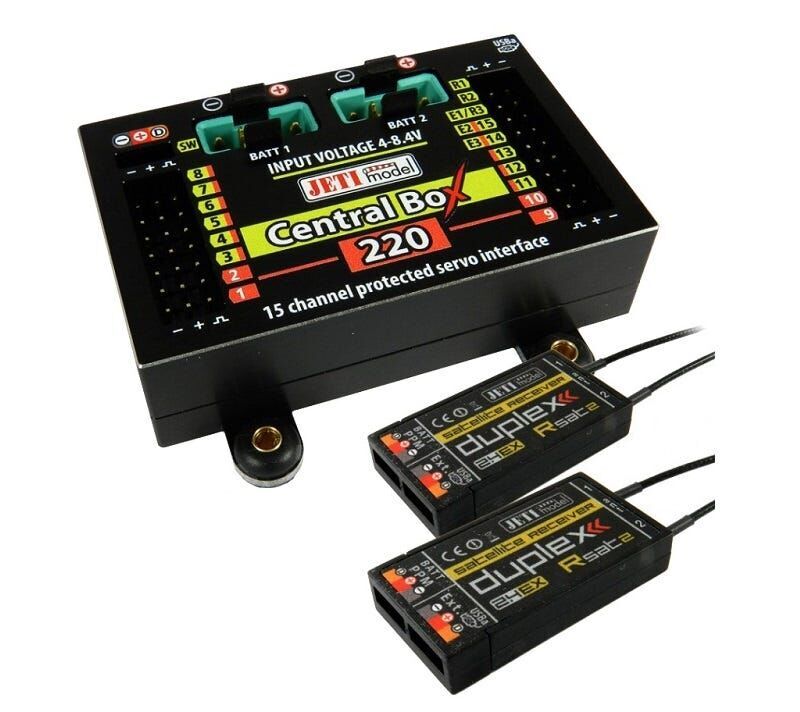

The Central Box 220 has a unique design that provides overload protection at each servo output. The Central Box can manage up to two batteries and fully supports the JETI EX telemetry system. Up to three receivers with serial (PPM, EX Bus, S.BUS, UDI) output can be connected to the Central Box 220. With JETI DC/DS transmitter, the full potential of the Central Box can be used, such as an easy way to configure the Central Box, EX telemetry, and very fast servo response.
- Central Box 220 has overload protection on each channel
- Channels 1, 2, 9 and 10 have protection for high-torque servo up to 60 Kg.cm.
- Channels 3 - 8 and 11 - 15 have protection for standard servo up to 30 Kg.cm.
- Support of DITEX telemetry servos
- Possibility to connect up to 3 receivers with serial interface
- Built-in Expander function for up to 3 sensors
- Input for a magnetic switch or RC switch
- 2x MPX battery input connectors
- 100Hz mode of servo outputs (10ms period)
- Supports EX telemetry (voltage, current, capacity, temperature measurement, etc)
| SKU | J-CB-220-RS |
| Barcode # | 8595245914462 |
| Brand | JETI |
Help other RC Hobbyland users shop smarter by writing reviews for products you have purchased.
Write A Review
The Central Box 220 has a unique design that provides overload protection at each servo output. The Central Box can manage up to two batteries and fully supports the JETI EX telemetry system. Up to three receivers with serial (PPM, EX Bus, S.BUS, UDI) output can be connected to the Central Box 220. With JETI DC/DS transmitter, the full potential of the Central Box can be used, such as an easy way to configure the Central Box, EX telemetry, and very fast servo response.
- Central Box 220 has overload protection on each channel
- Channels 1, 2, 9 and 10 have protection for high-torque servo up to 60 Kg.cm.
- Channels 3 - 8 and 11 - 15 have protection for standard servo up to 30 Kg.cm.
- Support of DITEX telemetry servos
- Possibility to connect up to 3 receivers with serial interface
- Built-in Expander function for up to 3 sensors
- Input for a magnetic switch or RC switch
- 2x MPX battery input connectors
- 100Hz mode of servo outputs (10ms period)
- Supports EX telemetry (voltage, current, capacity, temperature measurement, etc)
| SKU | J-CB-220-RS |
| Barcode # | 8595245914462 |
| Brand | JETI |
Help other RC Hobbyland users shop smarter by writing reviews for products you have purchased.
Write A Review
In Stock
