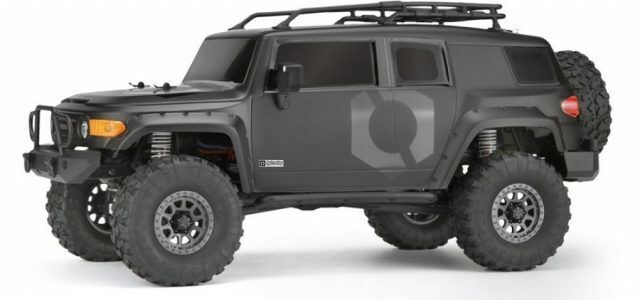

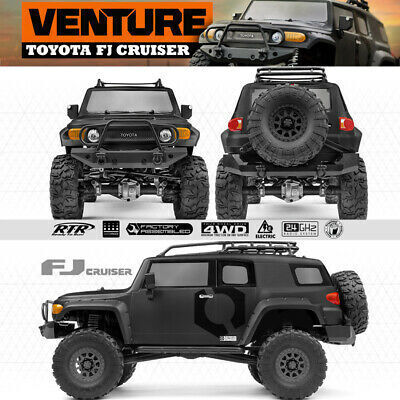

The HPI Venture Toyota FJ Cruiser Scale Crawler combines a forward mounted motor, metal chassis rails and transfer case equipped drivetrain with a licensed replica Toyota FJ40 body that includes front and rear bumpers, mirrors, roof rack and rear tire mount. This gives the Venture a level of scale realism that is rare in an RTR.

Features:

Factory-assembled & pre-painted electric-powered full-time 4WD 1/10 scale off-road truck
Officially licensed replica Toyota FJ Cruiser body with functional roof rack plus side mirrors
Front bumper features brush guard, light mounts, D-ring shackles and swing-away rear spare tire mount
Adjustable rock rail side sliders help the truck get over tough obstacles
Steel C-channel chassis rails
Front-mount motor and transmission position for ultimate scale realism and front weight bias to improve climbing traction and provides more realistic driving
All-metal gear drivetrain for extreme durability
Central transfer case with slider driveshafts to front and rear differentials prevents motor stall for the best climbing action and also straightens & lowers center driveshafts for more efficient power transfer
Axles feature locked differentials with small diff case and aluminum differential pumpkin cover
HPI water-resistant SS-20WR high torque steering servo with CMS (Chassis Mounted Servo) realistic steering setup
HPI waterproof SC-3sWP2 Crawler Edition adjustable electronic speed control
HPI 35-turn crawler spec motor provides speed as well as crawling torque
12mm hex hubs to fit any available crawler wheels
Shock towers have multiple shock mounting positions to allow for wheelbase options
BTA (Behind The Axle) steering linkage for improved approach and departure angles
Panhard bar with aluminum panhard mount for scale looks and optimized geometry with zero bump steer
Zero Ackermann high steer knuckle design for improved obstacle clearance and tighter turning radius
3-link front and triangulated 3-link rear suspension
Oil-filled aluminum coilover shock absorbers (63-90mm stroke) with adjustable threaded shock bodies for quick ride height changes and dual-stage shock springs
Aluminum lower link/shock mounts
Adjustable fully braced body mounting to fit any style of off-road body
All-terrain Rockthorn 109mm x 38mm soft S-Compound tires with chunky tread blocks
Beadlock style CR-10 ten-spoke 1.9 wheels
HPI TF-40 2.4GHz radio system with carry handle
HPI waterproof 2.4GHz receiver in protective case
Full set of ball bearings
Includes NiMH battery and charger and 4 AA batteries for radio transmitter

Specifications:

Dimensions

Length: 527mm (20.7)
Width: 227mm (9")
Height: 238mm (9.4") with roof rack, 217mm (8.5") without (will vary depending on tire choice and suspension settings)
Wheelbase: 313mm (12.3")
Front overhang: 101mm (3.9")
Rear overhang: 135mm (5.3")

Weight

Running weight: 2.4kg (5.3lbs)
Weight without battery: 2.1kg (4.7lbs)

Capability

Break-over angle: 44.5 degrees
Approach angle: 55 degrees
Departure angle: 45.5 degrees
Max climb angle: 49 degrees
Max tilt angle: 28 degrees
Axle articulation: 30 degrees
Ground clearance: 68mm capable (2.7")
Ground clearance at standard ride height: 60mm (2.4")
Axle ground clearance: 32mm (1.3")

Gearing

Drivetrain ratio: 7.6:1
Transmission gearing: 1.53:1
Axle gearing: 3.31:1
Transfer case gearing: 1.5:1

Needed to Complete: Nothing! Everything you need is included in the box.
"
