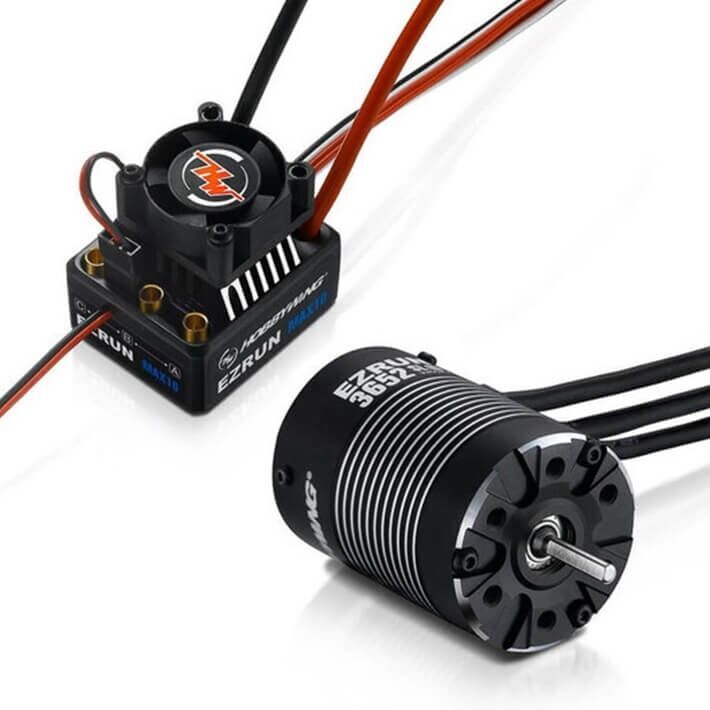

Hobbywing EZRUN MAX10 G2S 80A ESC & 3652SD G3 4100KV Sensored Brushless Motor Combo – HW38010207

The Hobbywing EZRUN MAX10 G2S 80A & 3652SD G3 4100KV Combo (HW38010207) is a powerful next-generation sensored brushless system designed for high-performance 1/10 scale RC cars. Pairing Hobbywing's latest MAX10 G2S 80A ESC with the 3652SD G3 4100KV sensored motor, this combo delivers strong acceleration, smooth low-speed control and plenty of top-end performance. Hobbywing confirms part number 38010207 as the 80A/4100KV combination.

Ideal for 1/10 on-road, buggy, rally and lightweight short course applications, the system combines full sensored operation with modern tuning features including built-in Bluetooth, internal data logging and adjustable BEC voltage.

Built-In Bluetooth Programming

The MAX10 G2S features a Bluetooth module built directly into its power switch, eliminating the need for a separate Bluetooth programming module.

Connect the ESC directly to the Hobbywing HW LINK App on a compatible smartphone to adjust parameters, view operating data and perform firmware updates.

3652SD G3 4100KV Sensored Motor

The included EZRUN 3652SD G3 4100KV motor provides significantly higher RPM than the 3300KV version, making this combo particularly well suited to applications where strong acceleration and higher top speed are desired.

Full sensored operation provides smooth throttle response from low speeds through to full throttle, helping make the car easier to control while still providing serious performance.

Integrated Data Logging

The MAX10 G2S can internally record the latest 10 minutes of operating data. After a run, the information can be viewed graphically through the HW LINK App.

Recorded information can include throttle input, battery voltage, current, ESC temperature and motor speed, making it particularly useful when experimenting with gearing and ESC settings.

Adjustable High-Voltage BEC

A powerful adjustable BEC allows the output voltage to be set to 6.0V, 7.4V or 8.4V, allowing the system to take advantage of compatible high-voltage steering servos.

Hobbywing rates the MAX10 G2S 80A BEC at 5A continuous output, with up to 10A maximum output stated in its product information.

IP67 Protection

The MAX10 G2S features IP67-rated water and dust protection, making it an excellent choice for rally, buggy and general off-road applications where electronics can be exposed to dirt and moisture.

Features

• Hobbywing EZRUN MAX10 G2S 80A ESC
• EZRUN 3652SD G3 4100KV sensored brushless motor
• Full sensored brushless operation
• Designed for high-performance 1/10 scale RC vehicles
• 2S–3S LiPo compatible ESC
• Built-in Bluetooth connectivity
• Direct connection to Hobbywing HW LINK App
• Internal 10-minute data logging
• Real-time operating data support
• Adjustable ESC parameters
• Firmware update capability
• Adjustable 6.0V / 7.4V / 8.4V BEC
• IP67 water and dust protection
• XT60 battery connector
• 4.0mm motor connectors
• Capacitor thermal protection
• Smooth low-speed response
• Strong acceleration and top-end performance
• Suitable for on-road and off-road applications

Specifications

• Brand: Hobbywing
• Part Number: HW38010207 / 38010207
• Series: EZRUN
• ESC: MAX10 G2S 80A
• Continuous Current: 80A
• Peak Current: 520A
• ESC Input: 2–3S LiPo
• Motor: EZRUN 3652SD G3
• Motor KV: 4100KV
• Motor Type: Sensored Brushless
• Scale: 1/10
• BEC: 6.0V / 7.4V / 8.4V, 5A
• ESC Dimensions: 53 x 39.5 x 37.2mm
• ESC Weight: 125g including wires
• Battery Connector: XT60
• Motor Connectors: 4.0mm Gold
• Battery Wires: 12AWG
• Protection: IP67
• Programming: Bluetooth HW LINK App / compatible LCD programming box
• EAN: 6938994407786

Recommended Applications

Suitable for compatible:

• 1/10 Touring Cars
• 1/10 On-Road Cars
• 1/10 Buggies
• 1/10 Rally Cars
• 1/10 Lightweight Short Course Trucks

Hobbywing rates the MAX10 G2S 80A for up to a 6000KV 3652 motor on 2S and up to 4200KV on 3S, placing the included 4100KV motor close to the upper end of its recommended 3S range. Correct gearing and temperature monitoring are therefore especially important when using this combo on 3S.

What's Included

• 1 x Hobbywing EZRUN MAX10 G2S 80A Sensored Brushless ESC
• 1 x Hobbywing EZRUN 3652SD G3 4100KV Sensored Brushless Motor

Please Note

This is the 4100KV version – HW38010207. Compared with the HW38010206 3300KV combo, the 4100KV version is aimed more towards applications where greater motor RPM and outright speed are desired.

When operating on 3S LiPo, carefully select gearing and regularly monitor ESC and motor temperatures, particularly when using aggressive timing settings.
