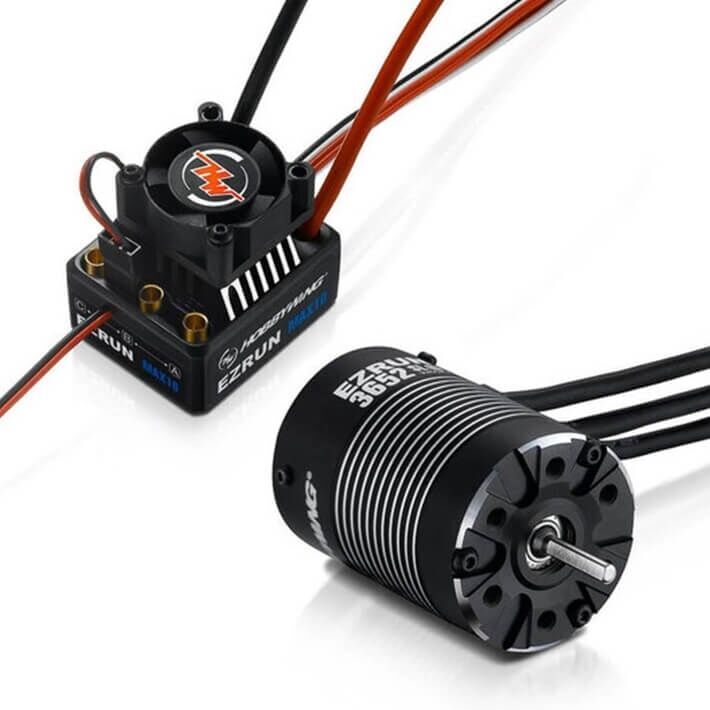

The Hobbywing EZRUN MAX10 G2S 80A Combo (HW38010206) combines the latest-generation MAX10 G2S electronic speed controller with the EZRUN 3652SD G3 3300KV sensored brushless motor, creating a powerful and highly adjustable system for 1/10 scale RC cars.

Designed for 1/10 touring cars, buggies, rally cars and lightweight short course trucks, this new-generation system brings features normally associated with higher-end racing electronics into Hobbywing's popular EZRUN range. These include built-in Bluetooth programming, data logging, adjustable Turbo Timing and a selectable high-voltage BEC.

MAX10 G2S – Built-In Bluetooth

One of the biggest improvements with the MAX10 G2S is integrated Bluetooth. The Bluetooth module is incorporated into the power switch, allowing the ESC to connect directly to the HW LINK smartphone app without requiring an additional OTA programmer.

From the app you can adjust ESC parameters, review recorded operating data and perform firmware updates, making setup at home or at the track quick and convenient.

Sensored 3652SD G3 3300KV Motor

The included EZRUN 3652SD G3 3300KV is a sensored brushless motor designed to work seamlessly with the MAX10 G2S.

Sensored operation provides smooth and predictable power delivery from low RPM, while the 3300KV rating provides a versatile balance between speed, torque and manageable temperatures for a wide range of 1/10 applications.

The 3300KV version supports both 2S and 3S LiPo operation, giving you plenty of flexibility depending on the performance required from your vehicle.

Turbo Timing

When paired with a compatible Hobbywing motor such as the supplied 3652SD G3, the MAX10 G2S supports Turbo Timing.

Hobbywing states that this function can increase maximum motor RPM by approximately 25%, allowing additional top-end performance when correctly configured for the vehicle, gearing and operating conditions.

Data Logging

The G2S adds internal data recording, allowing important operating information to be reviewed after a run. This is particularly useful when tuning gearing and ESC settings or checking how the power system is performing under load.

High-Voltage BEC

The MAX10 G2S also adds an 8.4V BEC option, complementing its lower selectable voltage settings and making the ESC suitable for compatible high-voltage steering servos.

IP67 Protection

Both the ESC and motor feature IP67-rated protection, making the system suitable for the demanding environments encountered by off-road, rally and general-purpose RC vehicles.

Features

• MAX10 G2S 80A sensored brushless ESC
• EZRUN 3652SD G3 3300KV sensored brushless motor
• Designed for 1/10 scale RC vehicles
• 2S and 3S LiPo compatible with the supplied 3300KV motor
• Built-in Bluetooth connectivity
• Direct programming through the Hobbywing HW LINK app
• Internal data logging
• Turbo Timing functionality
• Up to approximately 25% additional maximum RPM with compatible setup
• Adjustable high-voltage BEC
• 8.4V BEC option for compatible HV servos
• Sensored operation for smooth low-speed response
• IP67 ESC and motor protection
• Low-voltage protection
• Thermal protection
• Radio signal-loss protection
• Motor thermal protection with compatible Hobbywing motors
• Firmware updates through the HW LINK app

Specifications

• Brand: Hobbywing
• Part Number: HW38010206 / 38010206
• Series: EZRUN
• ESC: MAX10 G2S
• ESC Continuous Current: 80A
• Motor: EZRUN 3652SD G3
• Motor KV: 3300KV
• Motor Type: Sensored Brushless
• Battery Compatibility: 2S–3S LiPo with supplied 3300KV motor
• Scale: 1/10
• Programming: Built-In Bluetooth / HW LINK App
• Protection Rating: IP67
• EAN: 6938994407779

Recommended Applications

Ideal for compatible:

• 1/10 Touring Cars
• 1/10 On-Road Cars
• 1/10 Buggies
• 1/10 Rally Cars
• Lightweight 1/10 Short Course Trucks

What's Included

• 1 x Hobbywing EZRUN MAX10 G2S 80A ESC
• 1 x Hobbywing EZRUN 3652SD G3 3300KV Sensored Brushless Motor

Please Note

Correct gearing is important when running high-performance brushless systems, particularly on 3S LiPo. Monitor motor and ESC temperatures when changing gearing, battery voltage or Turbo Timing settings.

The HW38010206 is specifically the 3300KV version. The closely related HW38010207 is the 4100KV version, while HW38010208 is the 5400KV version.
