Hobbywing EZRUN MAX10 G2S 140A ESC & 3665SD G3 3200kV Motor Combo

Control a compatible RC motor with this electronic speed controller. Check the specified motor type, battery requirements and installation dimensions when planning your power system.

Product information "Hobbywing Ezrun MAX10 G2S 140A Combo with 3665SD-3200kV-G3"

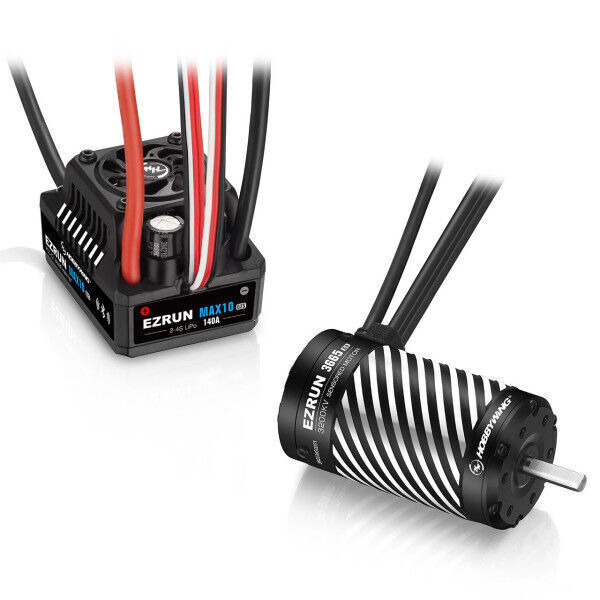

This combo pairs the Ezrun MAX10 G2S with 140A and the matching Ezrun 3665SD G3 rated 3200kV - a factory-matched 1/10 scale drivetrain package.

The MAX10 G2S is the consistent evolution of the MAX10 G2: identical power ratings, identical case - but an ESC that can be set up without any additional hardware. The Bluetooth module sits inside the power switch, the connection to the smartphone runs through the HW LINK app, and parameter setup, data review and firmware updates all run through it. Also new over the G2 are the internal data logging and the third BEC step of 8.4V for high-voltage servos.

This pairing is exactly where the ESC plays to its strength: turbo timing can only be enabled with Hobbywing motors and raises maximum RPM by up to approx. 25%. Motor overheat protection likewise only works with a supported Hobbywing motor. The supplied Ezrun 3665SD G3 provides both out of the box.

Features

• Bluetooth module integrated into the power switch - programming straight from a smartphone, no extra devices
• Internal data logging of the last 10 minutes of runtime, reviewed graphically in the HW LINK app
• Turbo timing up to 32 degrees - up to approx. 25% higher maximum RPM with the supplied motor
• Three-step BEC: 6V / 7.4V / 8.4V at 5A in switch mode
• Frameless fan with side air discharge, switched in by temperature
• ESC and motor dust- and waterproof to IP67, with waterproof sensor cable
• Capacitor overheat protection
• Protection against low voltage, overheating and loss of signal
• 4-pole rotor for high torque, quick acceleration and stable performance
• CNC machined aluminium housing and high-precision bearings on the motor

Technical Specifications

• ESC (Ezrun MAX10 G2S 140A)
• Type : 1/10 brushless, sensored and sensorless
• Current (cont./peak) : 140A / 880A
• Input Voltage : 2-4S LiPo
• BEC : 6V / 7.4V / 8.4V adjustable, 5A continuous (switch mode)
• Motor Limits : 2S LiPo: KV <= 6000 (3652 size motor)
  3S LiPo: KV <= 4000 (3665 size motor)
  4S LiPo: KV <= 2600 (4268 size motor)
• Turbo Timing : up to 32 degrees
• Fan : Yes, powered by the BEC
• Programming : Bluetooth (HW LINK app)
  LCD program box
  OTA program module
• Programming Port : Separate, 3-pin
• Waterproof : Yes, to IP67
• Input : XT60
• Output : Gold bullet sockets
• Dimensions : 53 x 39.5 x 37.2 mm
• Weight : 125 g (incl. wires and connectors)
• Application : 1/10 Short Course Truck, Truck and Monster Truck
• Motor (Ezrun 3665SD G3)
• Type : Brushless, Sensored
• kV Rating : 3200kV
• No-Load Current : <= 7.1A
• Cells : 2-3S LiPo
• Poles : 4
• Length : 65.8 mm
• Diameter : 37 mm
• Shaft Diameter : 5 mm
• Weight : 304 g
• Waterproof : Yes, to IP67
• Application : 1/10 Short Course Truck, Truggy / Monster

Note: A 3S battery or larger is required for 7.4V or 8.4V at the BEC. The effective Bluetooth range is approx. 5 m by design.

Delivery

• 1x Ezrun MAX10 G2S ESC 140A
• 1x Ezrun 3665SD G3 motor rated 3200kV

Optional Accessories

• HW30502002 LCD Program Box Pro
• HW30850400 OTA Bluetooth Program Module

Product Details

• Brand: Hobbywing
• Product Code: HW38010210
