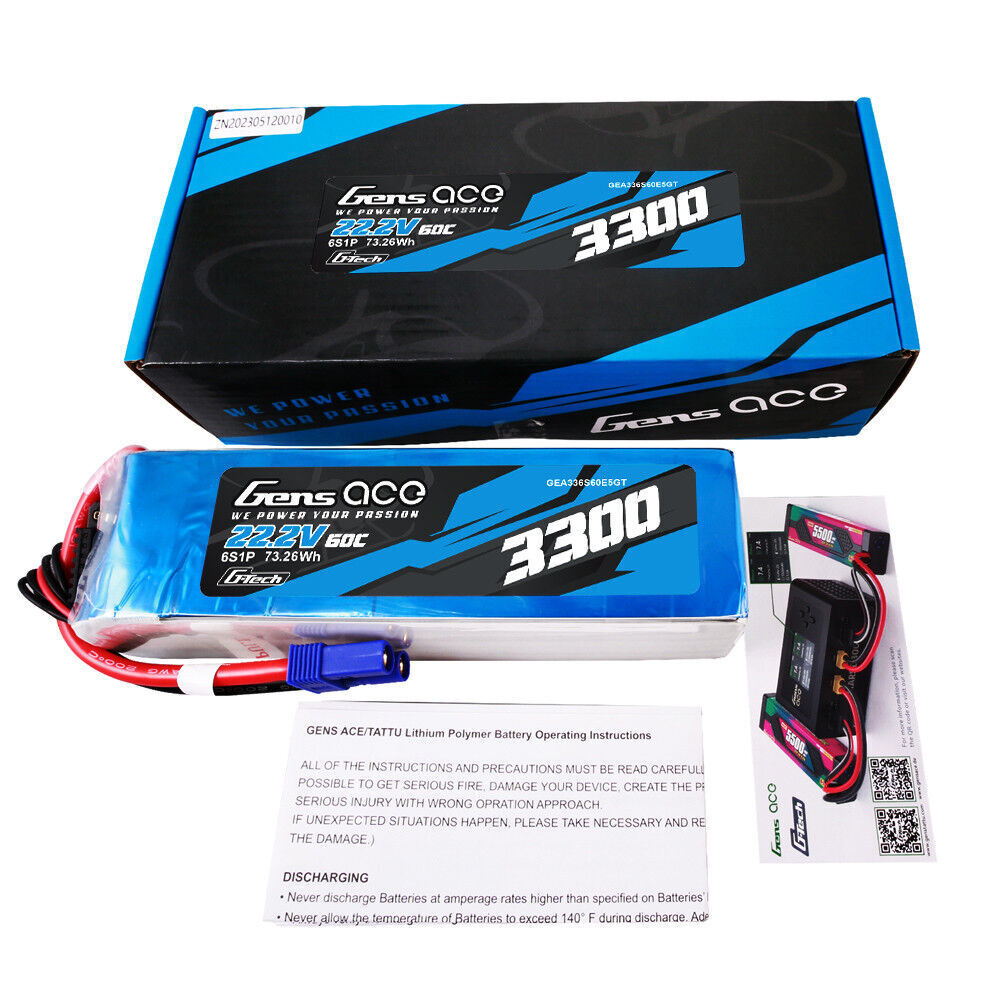

Gens Ace G-Tech 3300mAh 22.2V 6S 60C LiPo Battery with EC5 Connector – GEA336S60E5GT

The Gens Ace G-Tech 3300mAh 22.2V 6S 60C LiPo Battery provides rechargeable power for compatible RC helicopters, aircraft and EDF jets. Combining 3300mAh capacity, a 60C continuous discharge rating and G-Tech smart charging technology, this pack is a practical replacement or spare for suitable six-cell applications.

Equipped with an EC5 power connector and a separate G-Tech balance connection, it connects to matching model power systems and supports automatic battery recognition with compatible Gens Ace chargers.

3300mAh Capacity

The 3300mAh capacity provides an energy reserve for compatible models while keeping the pack’s size manageable. Actual operating time depends on motor load, propeller or fan setup, model weight and throttle use.

For aircraft and helicopters, install the battery in the recommended position to maintain the correct centre of gravity.

60C Continuous Discharge Rating

The manufacturer-rated 60C continuous discharge capability supports demanding motor loads during acceleration and sustained operation. Gens Ace also specifies a 120C burst discharge rating for brief periods of increased demand.

Match the battery to your power system’s requirements, including the current capacity of its connectors and wiring.

22.2V Six-Cell Configuration

The 6S1P configuration delivers 22.2V nominal voltage and 25.2V when fully charged. Your model’s ESC and motor system must support standard 6S LiPo operation.

Confirm the recommended voltage, capacity and pack weight before installation, particularly when changing from a different battery size.

G-Tech Smart Charging

The G-Tech balance connector communicates battery information to a compatible smart charger. Supported charging parameters can then be recognised and configured automatically, simplifying charging setup.

Soft-Pack Construction

Measuring approximately 138 × 42 × 43mm and weighing approximately 506g, this battery suits compartments and mounting trays with sufficient space for the pack and its leads.

Secure it using your model’s battery retention system and protect the soft case from sharp edges, excessive pressure and moving components.

EC5 Power Connection

The fitted EC5 connector suits a matching model power input. Confirm connector compatibility and polarity before connecting the battery.

Key Features

• 3300mAh capacity.

• 22.2V nominal voltage with a 6S1P configuration.

• 60C continuous discharge rating.

• 120C burst discharge rating.

• EC5 main power connector.

• G-Tech smart balance connection.

• Soft-pack construction.

• Suitable for compatible 6S aircraft, helicopter and EDF applications.

Specifications

Compatible Applications

Suitable for RC helicopters, aircraft and EDF jets that specify 6S LiPo power, accept the pack’s dimensions and weight, and use a matching EC5 connection. Check your model’s recommended battery requirements before fitting.

Package Contents

• 1 × Gens Ace G-Tech 3300mAh 22.2V 6S 60C LiPo battery with fitted EC5 power connector and smart balance lead.

Required for Use

• Compatible 6S-capable RC model.

• Suitable 6S LiPo balance charger and charging connections.

• Compatible G-Tech charger to use automatic battery recognition.

Charging Note: Follow the battery’s supplied instructions. When configuring charging manually, select standard 6S LiPo, with a maximum charge voltage of 25.2V.
