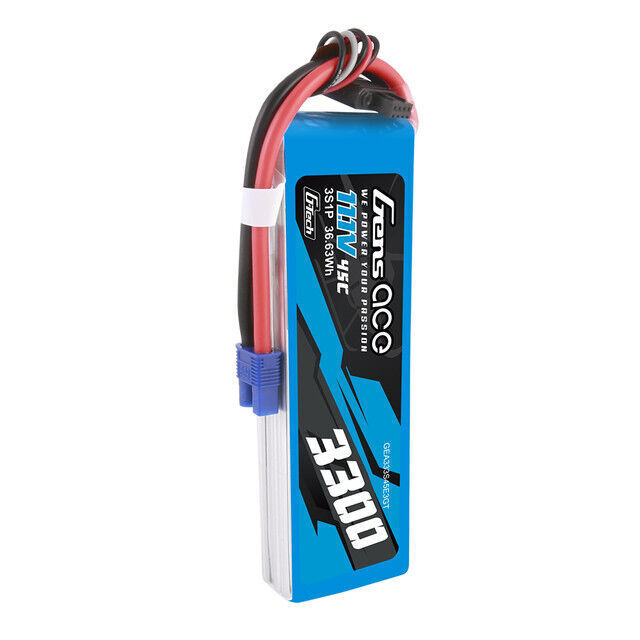

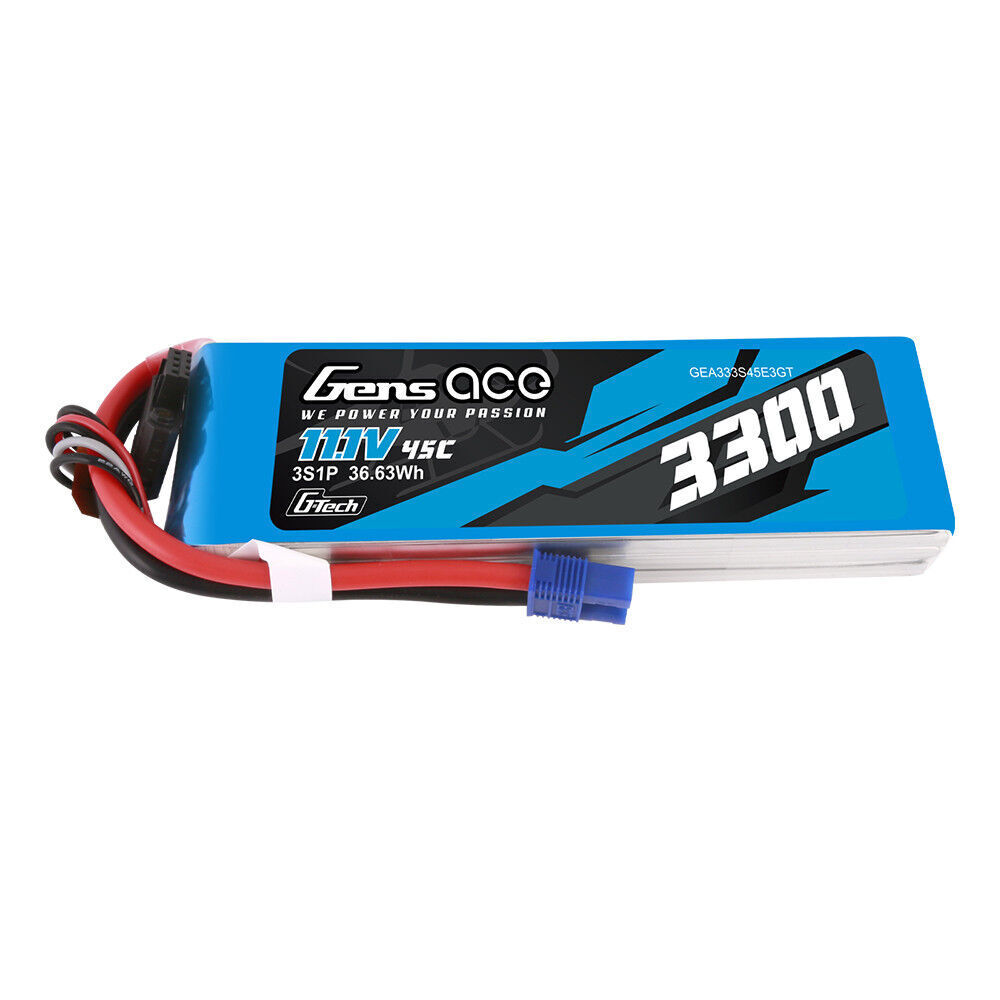

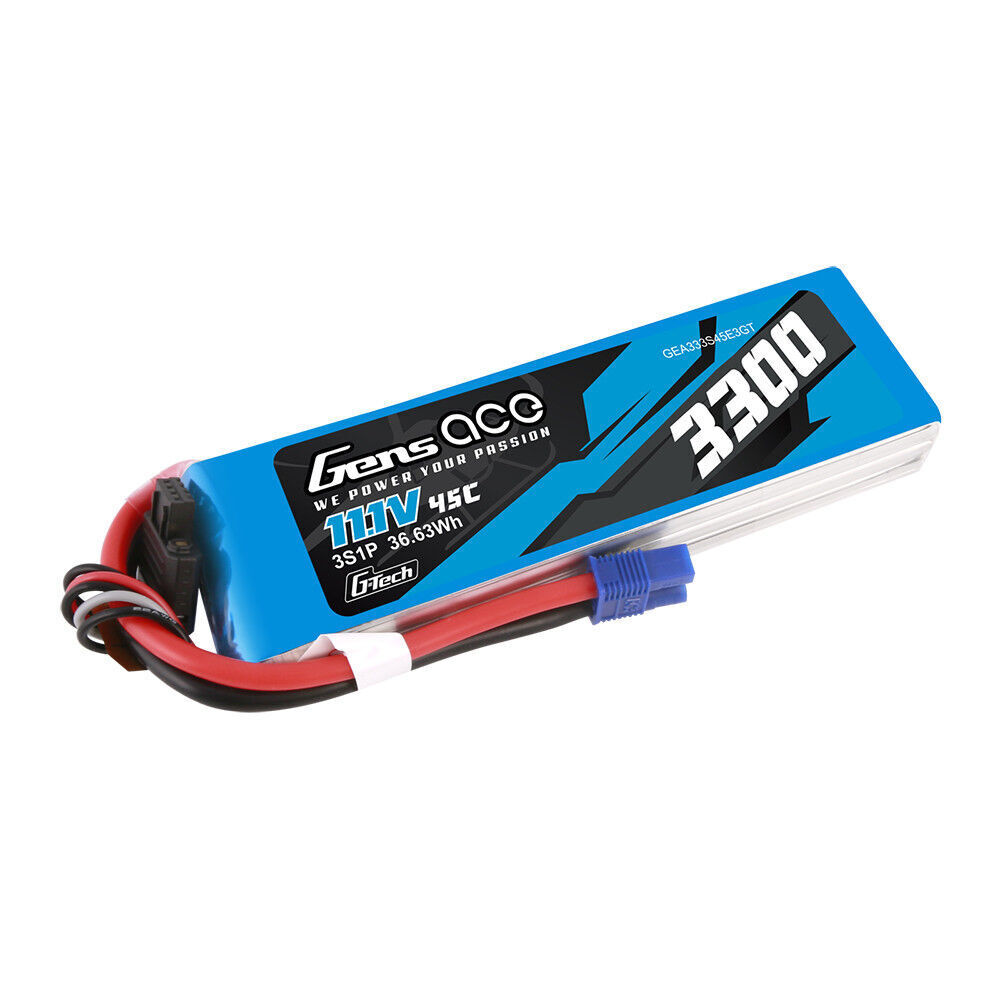

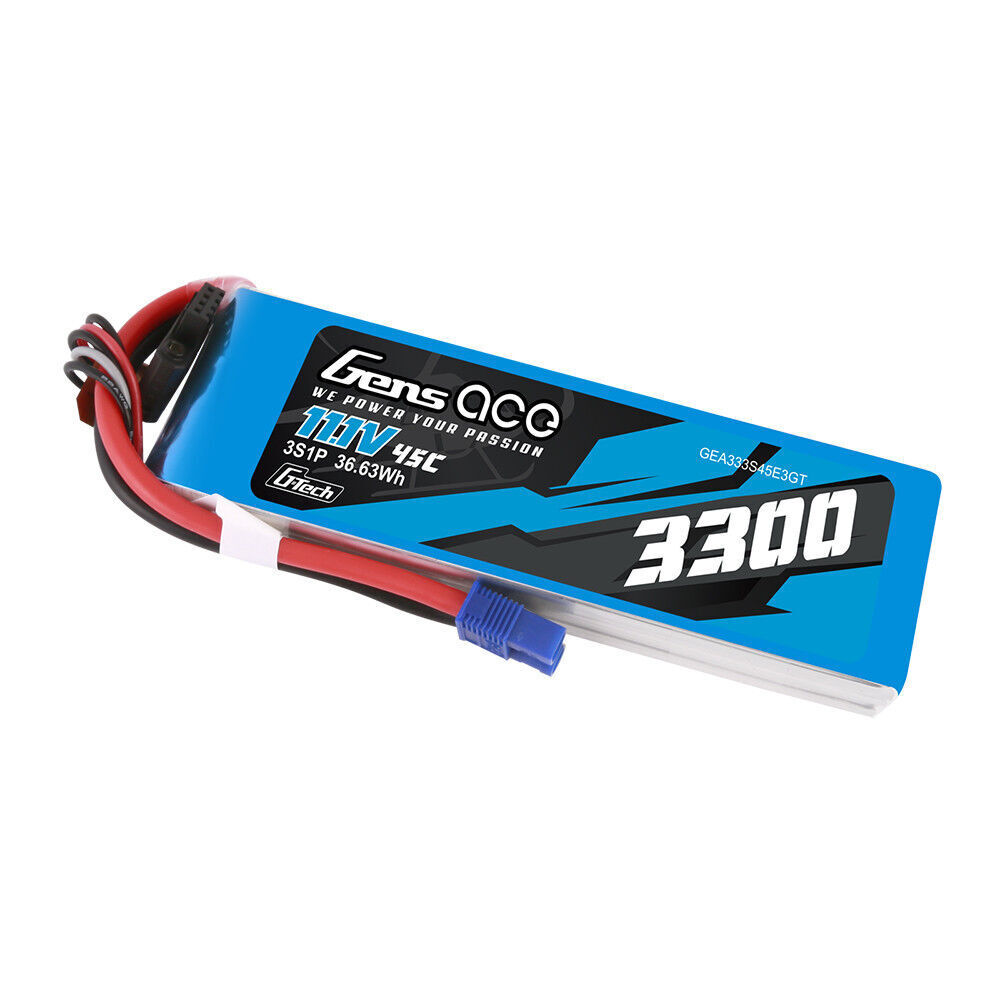

Gens Ace G-Tech 3300mAh 11.1V 3S 45C LiPo Battery with EC3 Connector – GEA333S45E3GT

The Gens Ace G-Tech 3300mAh 11.1V 3S 45C LiPo Battery provides rechargeable power for compatible RC aircraft and other models requiring a three-cell LiPo pack. Combining 3300mAh capacity, a 45C continuous discharge rating and G-Tech smart charging technology, it is a practical replacement or spare battery for your RC setup.

The fitted EC3 power connector connects to matching model power systems, while the G-Tech smart balance connection enables automatic battery recognition with compatible Gens Ace chargers.

3300mAh Capacity

The battery’s 3300mAh capacity provides an energy reserve for compatible models without moving to a larger-capacity pack. Actual operating time depends on motor load, propeller or gearing, model weight and throttle use.

For aircraft installations, position the battery according to the model’s instructions to achieve the correct centre of gravity.

45C Continuous Discharge Rating

The manufacturer-rated 45C continuous discharge capability supports changing motor loads during acceleration and sustained operation. Gens Ace also specifies a 90C burst discharge rating for short periods of increased demand.

Match the battery to your model’s electrical requirements, including the current limits of its connectors and wiring.

11.1V Three-Cell Configuration

The 3S1P configuration delivers 11.1V nominal voltage and 12.6V when fully charged. Your model’s ESC and motor system must support standard 3S LiPo operation.

Check the recommended battery specifications before replacing a pack with a different voltage, capacity or weight.

G-Tech Smart Charging

The smart chip in the G-Tech balance connector communicates battery information to a compatible G-Tech charger. This allows supported charging parameters to be recognised and configured automatically, simplifying charging setup.

Soft-Pack Construction and EC3 Connection

Measuring approximately 138 × 42 × 20.5mm, the battery has a flat soft-pack format for suitable compartments and mounting trays. Allow clearance for its leads and secure it using your model’s battery retention system.

The fitted EC3 connector suits a matching power input. Confirm connector polarity and protect the pack from sharp edges and moving components.

Key Features

• 3300mAh capacity.

• 11.1V nominal voltage with a 3S1P configuration.

• 45C continuous discharge rating.

• 90C burst discharge rating.

• EC3 main power connector.

• G-Tech smart balance connection.

• Flat soft-pack construction.

• Suitable replacement or spare for compatible 3S-powered models.

Specifications

Compatible Applications

Suitable for RC aircraft and other models that specify a compatible 3S LiPo battery, accept the pack’s dimensions and weight, and use a matching EC3 connection. Check your model’s battery requirements before installation.

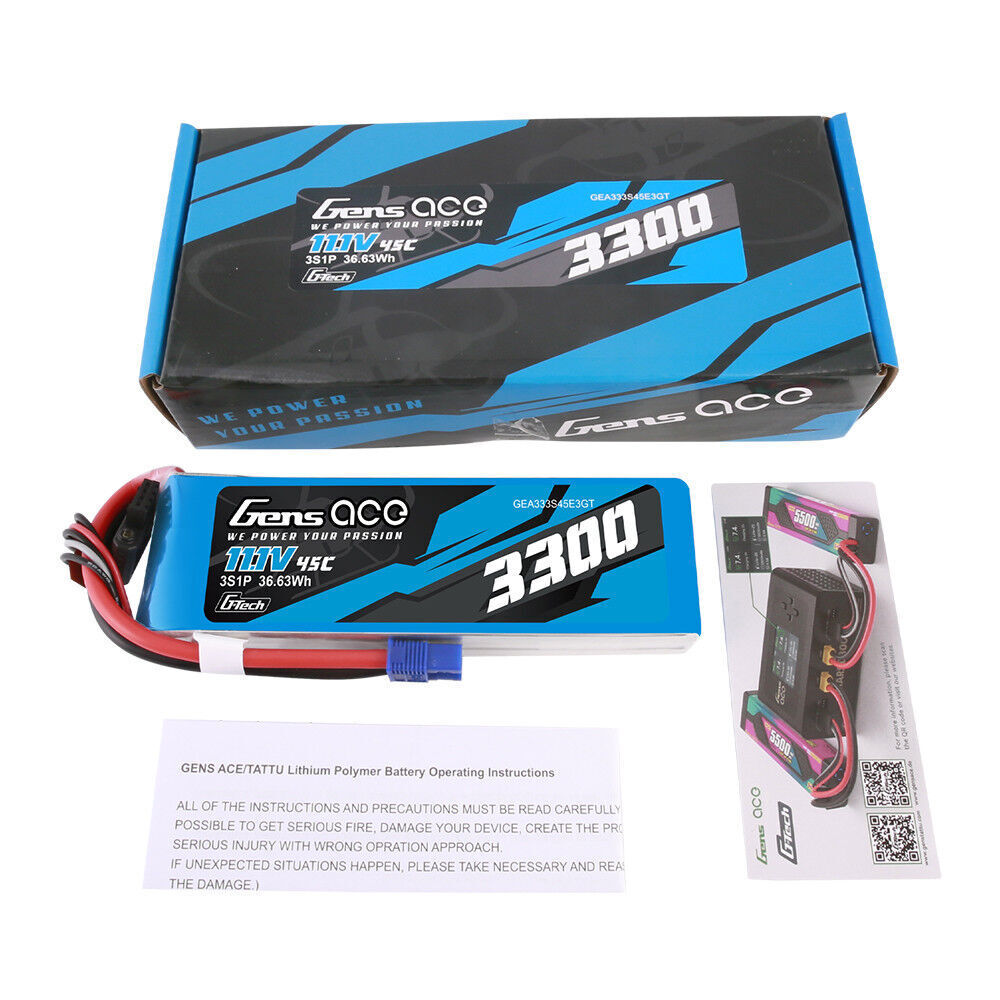

Package Contents

• 1 × Gens Ace G-Tech 3300mAh 11.1V 3S 45C LiPo battery with fitted EC3 power connector and smart balance lead.

Required for Use

• Compatible 3S-capable RC model.

• Suitable 3S LiPo balance charger and charging connections.

• Compatible G-Tech charger to use automatic battery recognition.

Charging Note: Follow the battery’s supplied instructions. When configuring charging manually, select standard 3S LiPo, with a maximum charge voltage of 12.6V.
