Description

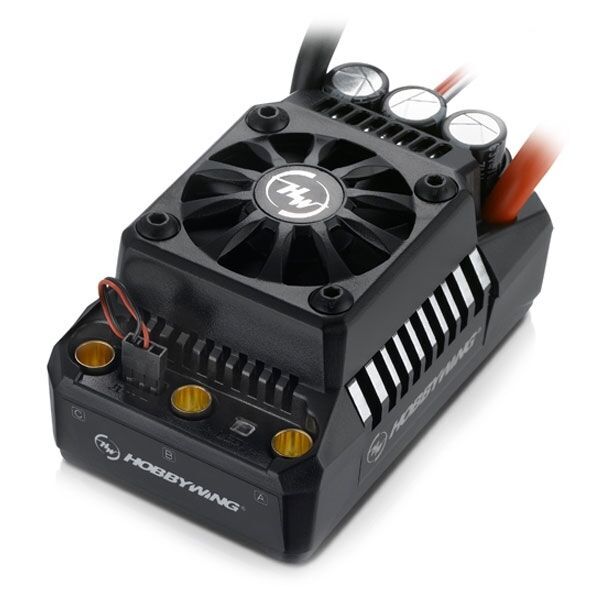

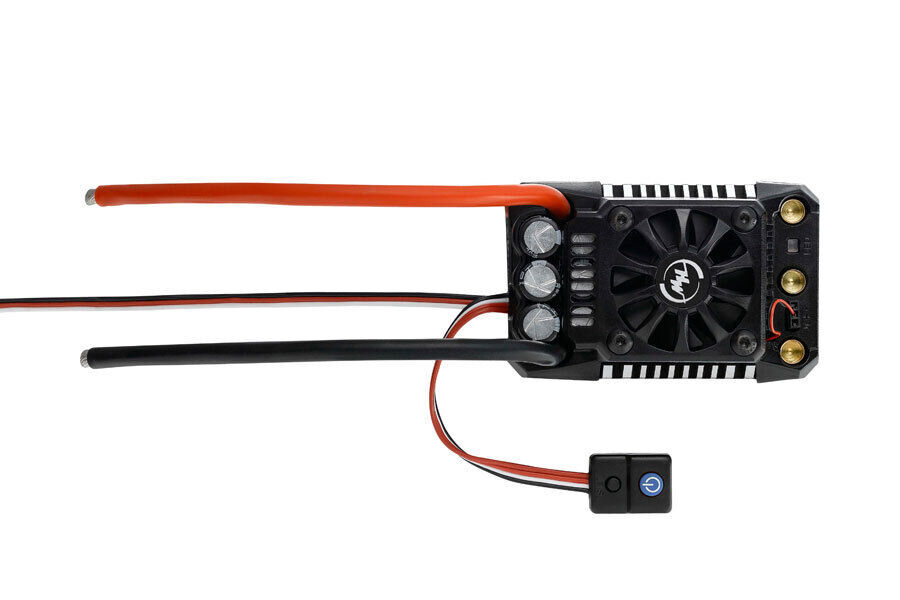

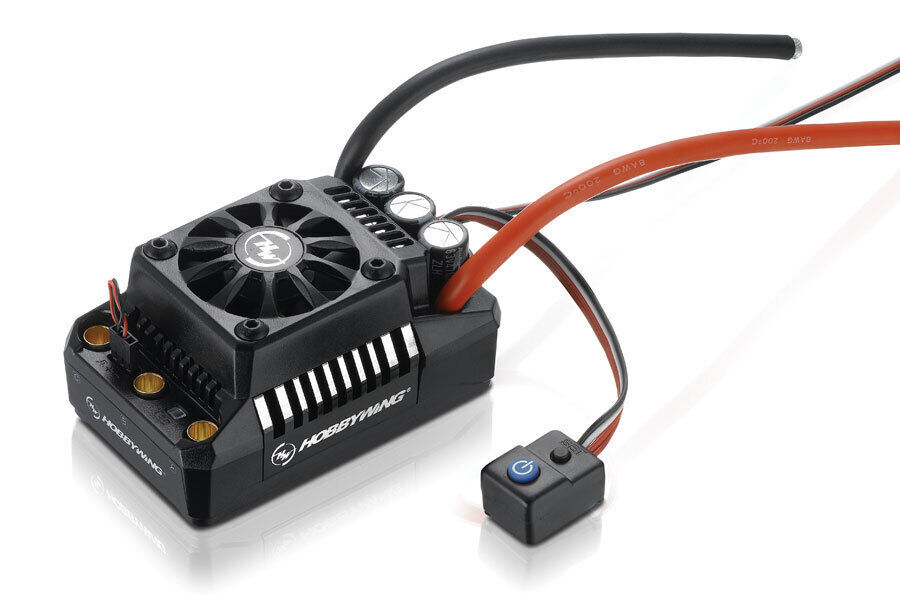

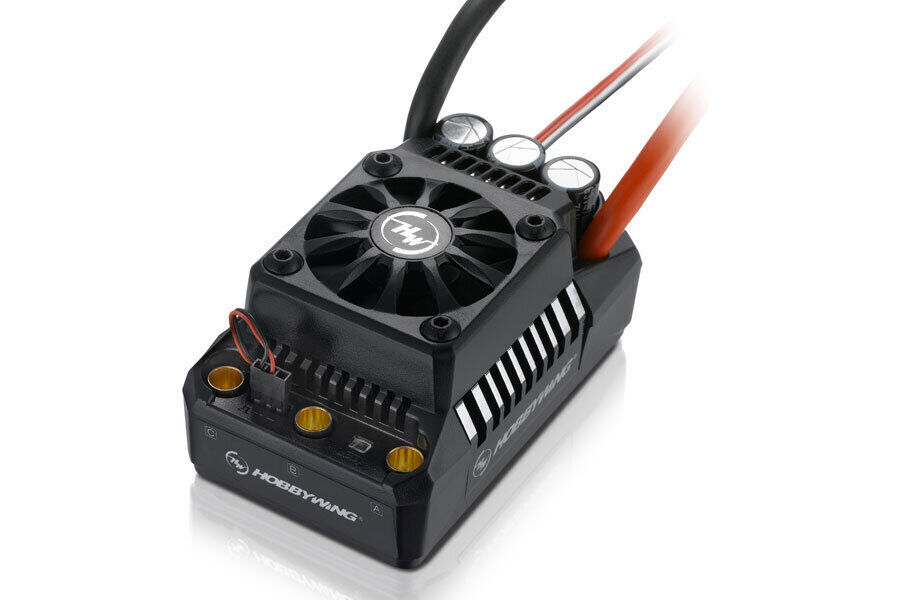

Ezrun max5-v3 200amp 1/5 esc 3-8s

what is the box?
  • (1) ezrun max5 esc
  • (3) 10 awg, 200c black wires for a brushless motor
  • (1) extra set of 8 awg 200c red power wire
  • (1) extra set of 10 awg 200c black power wire
  • (1) double side tape
  • (2) heat shrink tube
  • user's manual
  • a hobbywing decal

bottomline

  • compatible with sensorless brushless motors and sensored brushless motors (only in sensorless mode).

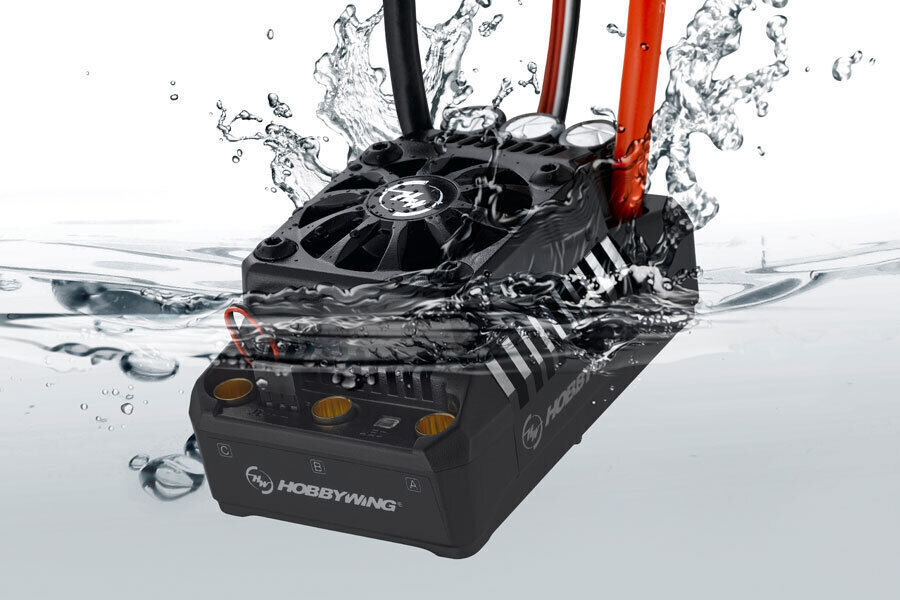

  • fully waterproof design for all weather conditions.
  • super internal switch-mode bec with switchable voltage of 6v/7. 4v and a cont. /peak current of 6a/25a for easily driving big torque servos and high voltage servos.

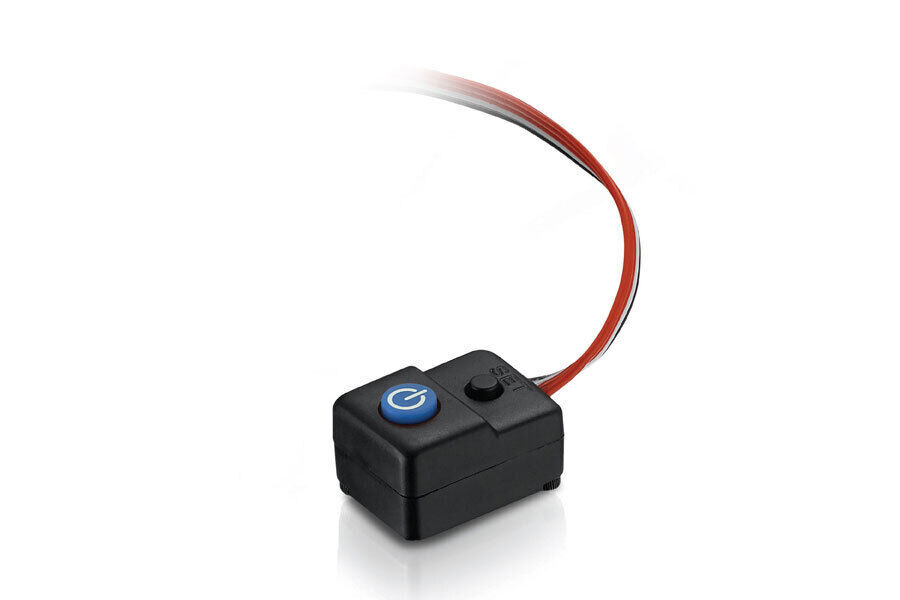

  • highly reliable electronic switch avoids troubles which may happen to traditional mechanical switch due to dirt, water, dash and etc.
  • the built-in spark-proof circuit effectively protects not only battery and esc connectors from damage but also users from physical injury (to hands) caused by strong electrical sparks
  • produced at the battery and esc connecting moment.
  • separate programming port to easily connect the led program card or the lcd program box to the esc. (purchase separately)
  • proportional brake with 9 levels of brake amount/maximum brake force and 9 levels of drag brake force.
  • 5 levels of acceleration /punch from soft to aggressive for different vehicles, tires and tracks.
  • multiple protections: motor lock-up protection, low-voltage cutoff protection, thermal protection, overload protection, and fail safe (throttle signal loss protection).
  • capacitor protection(only max5) ¼šinnovative capacitor protection effectively protects capacitors from exploding and causing irreversible damage to the esc because of overload.
  • single-button esc programming and factory reset.
  • advanced programming via portable led program card or multifunction lcd program box.  or wireless programming device (purchase separately)
  • firmware upgrade via hobbywing multifunction lcd program box or wireless programmer (item sold separately).

Read More
Specifications
SKU HW30104000
Barcode # 6938994405386
Brand HOBBYWING
