Description

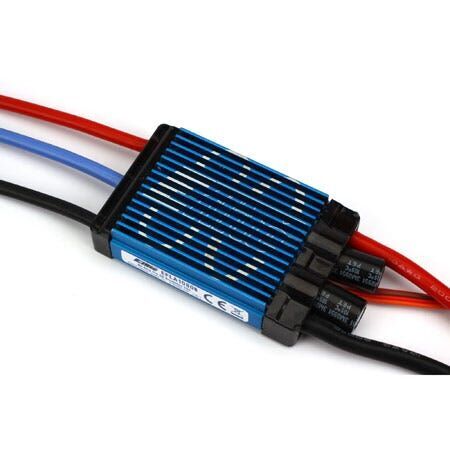

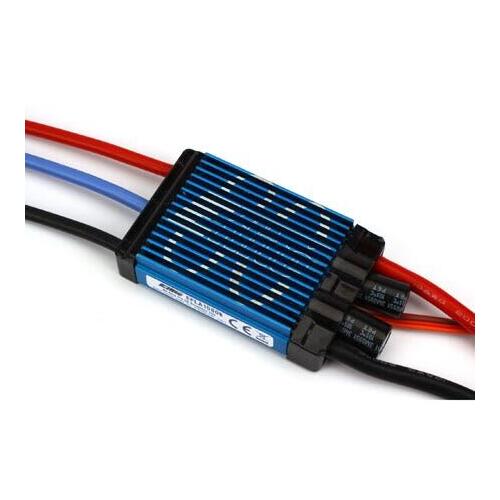

When performance matters in your high-current applications, look no further than the e-flite 80-amp pro switch-mode esc. This is a high-quality, efficient sensorless brushless electronic speed control with an integrated switch-mode bec. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication. It is capable of up to 80 amps continuous current when using 3- to 6-series li-po battery packs. You can drive up to 7 analog or 6 digital standard-size servos with the bec on any recommended input voltage. Featuring an exposed, finned heat sink aluminum case with lightweight plastic end-caps, safe power-arming along with advanced programmable features such as low voltage cutoff, braking, timing, throttle input range and more, the e-flite 80-amp pro switch-mode esc is truly a â‘pro series ⒠electronic speed control

This product is not intended for use by children under 14 years of age without direct adult supervision.

  • up to 80 amps continuous current with proper air flow and 100 amps burst current (15 seconds)
  • 5v switch-mode bec capable of 5 amps continuous current with 6 amps max burst on any recommended input voltage
  • drive up to 7 analog or 6 digital standard-size servos with the bec on any recommended input voltage
  • 3- to 6-cell li-po, 9- to 18-cell ni-mh/ni-cd input voltage
  • programmable motor braking
  • safe power-arm mode prevents accidental starts
  • programmable low voltage cutoff with settings for 3-cell li-po (9. 2v), 4-cell li-po (12v), 5-cell li-po (15v), 6-cell li-po (18v) or 74% of battery starting voltage
  • programmable throttle input range (1. 1ms â–1. 9ms or 1. 2ms â–1. 8ms)
  • programmable soft start-up rate -. 25 second or 1 second
  • auto motor shut down if signal is lost or there is interference
  • programmable timing â—5 user-selectable ranges â–use with a large variety of brushless motors
  • two operating modes â–airplane or heli

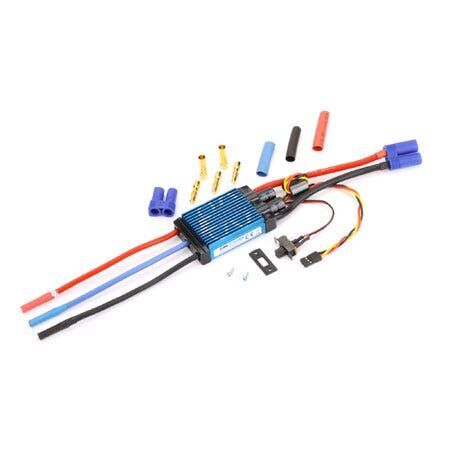

  • pre-wired connectors â—e-flite ec5 on battery input and 4. 0mm female gold bullets on motor output leads

Read More
Specifications
SKU EFLA1080B
Barcode # 605482053102
Brand EFLITE
