Description

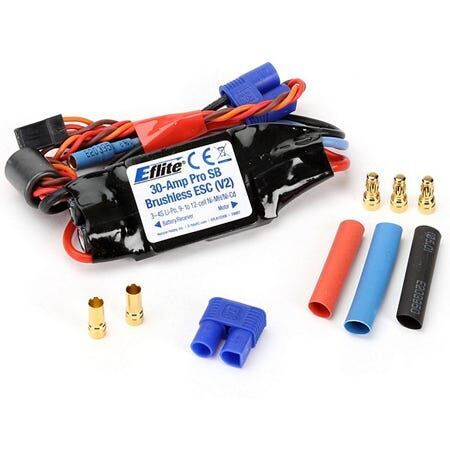

The e-flite 30-amp pro switch-mode bec brushless esc (v2). This is a high-quality sensorless brushless electronic speed control with an integrated switch-mode bec that is very lightweight and efficient. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication.

up to 30 amps continuous current with proper air flow and 35 amps burst current (15 seconds)
3. 5a continuous current, 5v switch-mode bec circuit
stronger bec for support of most 3-axis stabilization systems
drive up to 7 analog or 6 digital standard-size servos with the bec
3- to 4-cell li-po, 9- to 12-cell ni-mh/ni-cd input voltage
programmable motor braking
safe power-arm mode prevents accidental starts
programmable low voltage cutoff with settings for 3-cell li-po (9. 2v), 4-cell li-po (12v) or 74% of battery starting voltage
programmable throttle input range (1. 1ms 1. 9ms or 1. 2ms 1. 8ms)
programmable soft start for helis and airplanes
auto motor shut down if signal is lost or there is interference
programmable timing 5 user-selectable ranges for use with a large variety of brushless motors
pre-wired connectors e-flite ec3 connector on battery input and 3. 5mm gold bullet connectors on motor output leads
