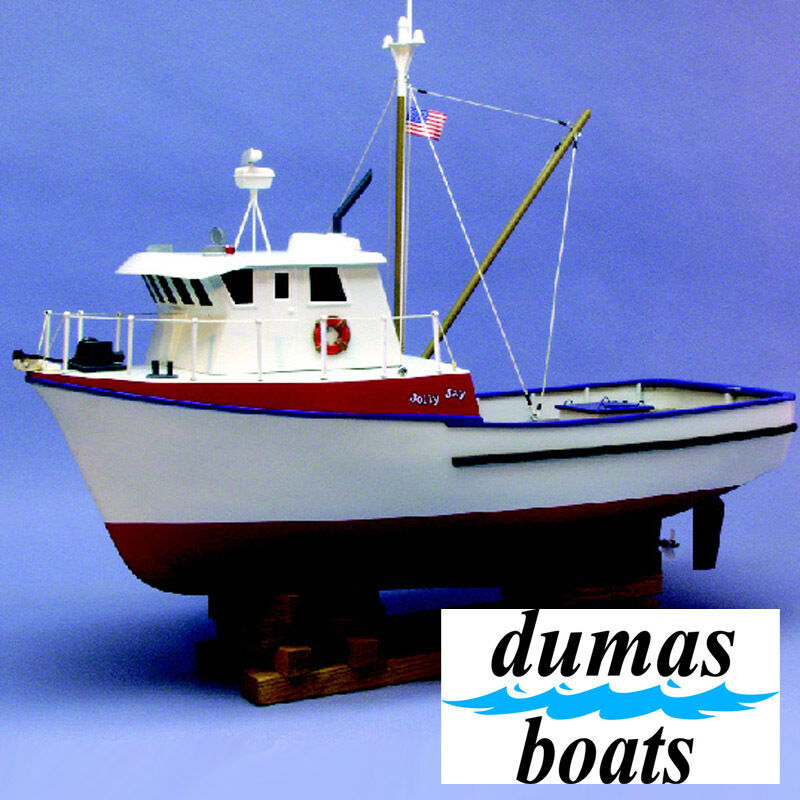

Dumas Jolly Jay Trawler 24" 1/30 Scale R/C Model Boat Kit – DUMA1231

The Dumas Jolly Jay Kit #1231 is a charming 1/30 scale wooden trawler model kit designed to combine traditional model boat construction with straightforward radio-controlled operation.

At 24 inches (610mm) long, the Jolly Jay is a manageable size for building, transporting and operating. The kit combines die-cut poplar plywood frames, balsa wood hull planking and pre-formed ABS cabin components, and importantly, Dumas supplies the running hardware and electric motor with the kit. It can be completed as either a detailed display model or a fully operational R/C boat.

Classic Working Trawler Design

The Jolly Jay captures the character of a traditional working fishing trawler, with its high bow, enclosed wheelhouse and purposeful displacement-style hull.

Rather than focusing on outright speed, this style of model is ideal for relaxed scale boating. Its traditional workboat appearance also provides plenty of opportunities for the builder to add weathering, deck equipment and other personalised details.

Traditional Plank-on-Frame Hull

DUMA1231 provides a genuine wooden model boat building experience.

The hull is constructed around die-cut poplar plywood frames, which establish the shape and structure of the vessel. Balsa wood planking is then fitted over the frames to form the hull.

This method gives the builder the satisfaction of shaping, sanding and finishing the hull while being more approachable than some of Dumas' larger and more complicated plank-on-frame vessels.

Pre-Formed ABS Cabin Components

To make construction of the upper structure easier, Dumas supplies pre-formed ABS plastic cabin parts.

Combining plastic superstructure components with the traditional wooden hull helps simplify the build while still producing a convincing scale trawler once painted and detailed.

Motor & Running Hardware Included

A particularly useful feature of the Jolly Jay is that the kit includes the complete driveline running hardware and electric motor.

Dumas' documentation specifies a 4.8V electric motor, meaning the builder doesn't need to separately source the basic motor and specialised propeller-shaft hardware before starting the R/C installation.

The electronic speed controller, battery, charger and radio system are still required separately.

Designed for 2-Channel Radio Control

The Jolly Jay can be equipped for straightforward 2-channel radio-controlled operation.

A typical installation provides throttle control through an electronic speed controller and steering through a rudder servo. This makes it an appealing choice for someone looking for a traditional wooden model boat that can actually be enjoyed on the water without requiring a complicated multi-channel installation.

Features

• Traditional working trawler-style model boat
• 1/30 scale
• 24" / 610mm finished length
• Approx. 8.2" / 208mm beam
• Traditional wooden hull construction
• Die-cut poplar plywood hull frames
• Balsa wood hull planking
• Pre-formed ABS plastic cabin components
• Complete driveline running hardware included
• 4.8V electric motor included
• Designed for radio-controlled operation
• Suitable for a 2-channel radio system
• Can also be completed as a static display model
• Excellent introduction to larger wooden R/C boat construction
• Plenty of scope for additional scale detailing and weathering

Specifications

• Brand: Dumas Products
• Product Number: DUMA1231 / Kit #1231
• Model: Jolly Jay
• Type: Trawler Model Boat Kit
• Scale: 1/30
• Finished Length: 24" / approx. 610mm
• Beam: Approx. 8.2" / 208mm
• Hull Frames: Die-Cut Poplar Plywood
• Hull Planking: Balsa Wood
• Cabin: Pre-Formed ABS Components
• R/C Capable: Yes
• Motor: 4.8V Electric Motor – Included
• Running Hardware: Included
• Radio Requirement: 2-Channel
• UPC / Barcode: 660141012319

What's Included

• Dumas Jolly Jay Trawler Kit #1231
• Die-cut poplar plywood hull frames
• Balsa wood hull planking
• Pre-formed ABS plastic cabin components
• Electric motor
• Complete driveline running hardware
• Propeller and shaft components
• Rudder hardware
• Construction materials
• Plans and assembly instructions

Requires to Complete for R/C Operation

• Electronic speed controller
• Suitable battery
• Compatible battery charger
• 2-channel or greater radio transmitter
• Receiver
• Steering servo
• Suitable wood and plastic adhesives
• Hull sealing materials
• Paint and finishing materials
• Sandpaper and sanding blocks
• Basic model-building tools

Please Note

This is an unassembled model boat kit, not a ready-to-run R/C boat. Construction, hull planking, sanding, sealing, painting and installation of the radio equipment are required.

Unlike many Dumas kits, the electric motor and driveline running hardware are included. The radio system, electronic speed controller, battery and charger are not included.

With its manageable 610mm length, traditional wooden planked hull and included motor and running gear, the Jolly Jay is a great choice for a modeller wanting to progress into a working wooden R/C scale boat without taking on one of Dumas' much larger projects.
