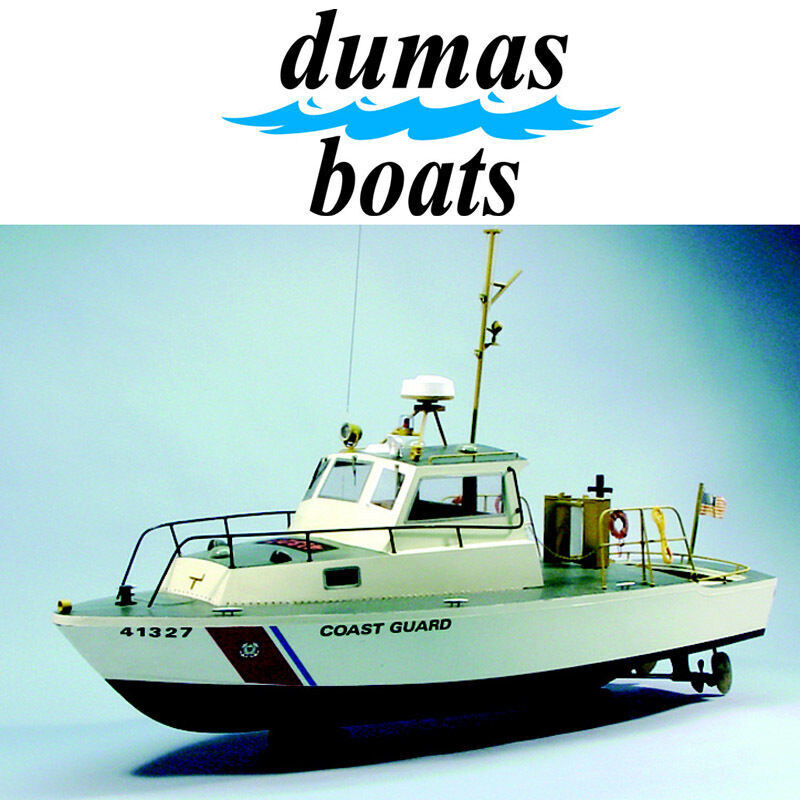

Dumas USCG 41' Utility Boat 31" R/C Wooden Model Boat Kit – DUMA1214

The Dumas USCG 41' Utility Boat Kit #1214 is a substantial 1/16 scale wooden model boat kit based on the versatile 41-foot Utility Boat once operated by the United States Coast Guard.

At 31 inches (787mm) long with a 10-inch beam, this is an impressive scale project featuring accurately die-cut all-wood construction and a detailed 32-piece deck hardware fittings set. It can be built as a highly detailed display model or equipped with twin motors and twin propellers for full radio-controlled operation.

Based on the US Coast Guard 41' Utility Boat

The full-size 41-foot Utility Boat was developed as a multi-purpose Coast Guard workboat capable of handling a wide range of duties.

The real vessels were used for search and rescue, law enforcement, nearshore patrol and logistics operations. They featured a hard-chine planing hull, enclosed wheelhouse and twin-diesel/twin-propeller power system. The Coast Guard records the class as being built between 1973 and 1978.

This varied operational history makes the 41' Utility Boat an excellent subject for a working scale model.

Traditional All-Wood Construction

DUMA1214 is a genuine builder's kit rather than a pre-formed ready-to-run boat.

Dumas describes the model as featuring accurately die-cut all-wood construction, giving the modeller the satisfaction of constructing and finishing the vessel from traditional modelling materials.

At approximately 1/16 scale, there's plenty of room for detailed finishing and additional customisation.

32-Piece Deck Hardware Set Included

A major feature of the kit is the included 32-piece deck hardware fittings set.

These fittings add the smaller scale details needed to bring the Coast Guard vessel to life and help make the completed model equally impressive displayed on the mantle or operating on the water.

Twin-Motor, Twin-Screw R/C Capability

For radio-controlled operation, Dumas designed the model around a twin-motor, twin-propeller drive system, replicating the basic propulsion layout of the full-size vessel.

Dumas recommends the #2337 Running Hardware Kit together with two #2004 6V electric motors. The manufacturer's current product information also specifies a suitable electronic speed controller, battery, charger and 2-channel radio system to complete the R/C installation.

Impressive 31-Inch Model

With a finished length of 31 inches (787mm) and beam of 10 inches (254mm), the DUMA1214 is a sizeable model.

Its large dimensions provide plenty of presence on the water while also giving the builder more space for installation of the twin motors, running gear and radio equipment.

Features

• Scale model of the USCG 41' Utility Boat
• Approximately 1/16 scale
• Large 31" / 787mm finished length
• 10" / 254mm beam
• Accurately die-cut all-wood construction
• Detailed 32-piece deck hardware fittings set included
• Suitable for static display or R/C operation
• Designed for twin-motor power
• Twin-propeller / twin-screw drive configuration
• Dumas #2337 Running Hardware Kit recommended
• Designed for two Dumas #2004 6V motors
• Suitable for a 2-channel radio system
• Excellent subject for additional scale detailing
• Rewarding project for experienced model boat builders

Specifications

• Brand: Dumas Products
• Product Number: DUMA1214 / Kit #1214
• Model: USCG 41' Utility Boat
• Type: Wooden Scale Model Boat Kit
• Scale: 3/4" = 1' / 1:16
• Finished Length: 31" / approx. 787mm
• Beam: 10" / approx. 254mm
• Construction: All Wood
• Deck Hardware: 32-Piece Fittings Set
• R/C Capable: Yes
• Drive Configuration: Twin Motor / Twin Screw
• Recommended Running Hardware: Dumas #2337
• Recommended Motors: 2 x Dumas #2004 6V
• Radio Requirement: 2-Channel
• UPC / Barcode: 660141012142

What's Included

• Dumas USCG 41' Utility Boat Kit #1214
• Die-cut wooden construction components
• Hull and superstructure construction materials
• 32-piece deck hardware fittings set
• Scale detailing components
• Plans and assembly instructions

Requires to Complete for R/C Operation

• Dumas #2337 Running Hardware Kit
• 2 x Dumas #2004 6V motors
• Suitable electronic speed controller
• Suitable battery
• Compatible battery charger
• 2-channel radio transmitter and receiver
• Steering servo
• Suitable adhesives
• Paint and finishing materials
• Basic model-building tools

Please Note

This is an unassembled wooden model boat kit. Construction, sanding, painting and finishing are required.

The running hardware, motors, speed controller, battery, charger and radio-control equipment are not included with the standard kit.

Dumas' current information recommends Running Hardware Kit #2337 and two #2004 6V motors for twin-screw operation. Some of Dumas' older electronic accessory part numbers are now dated, so customers can use suitable modern electronics rather than needing those exact legacy components.

With its large 787mm hull, traditional wooden construction, detailed deck fittings and twin-motor R/C capability, DUMA1214 is an excellent choice for an experienced modeller looking for a substantial working scale Coast Guard boat.
