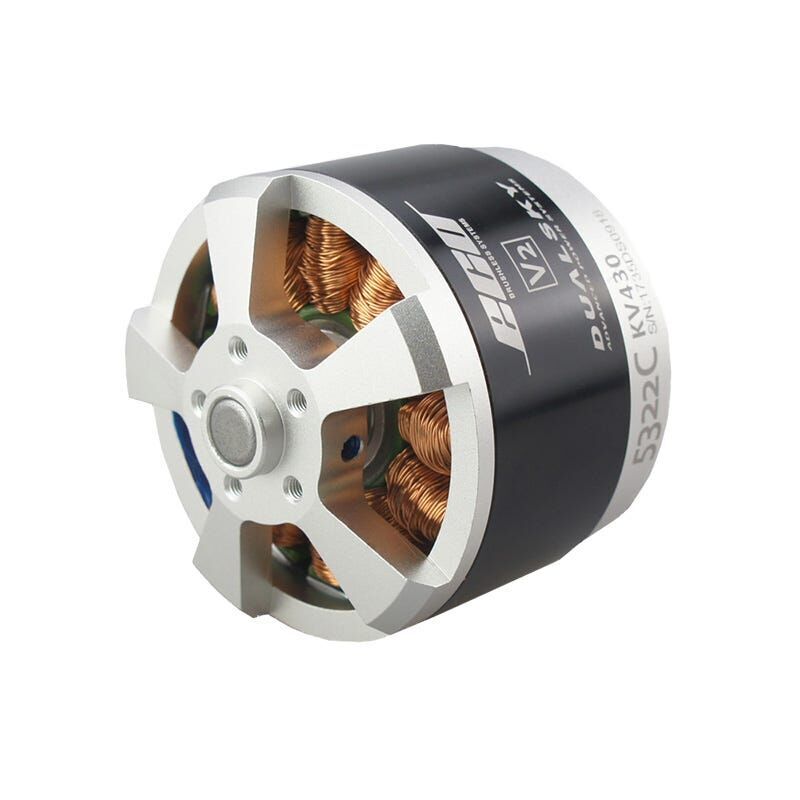

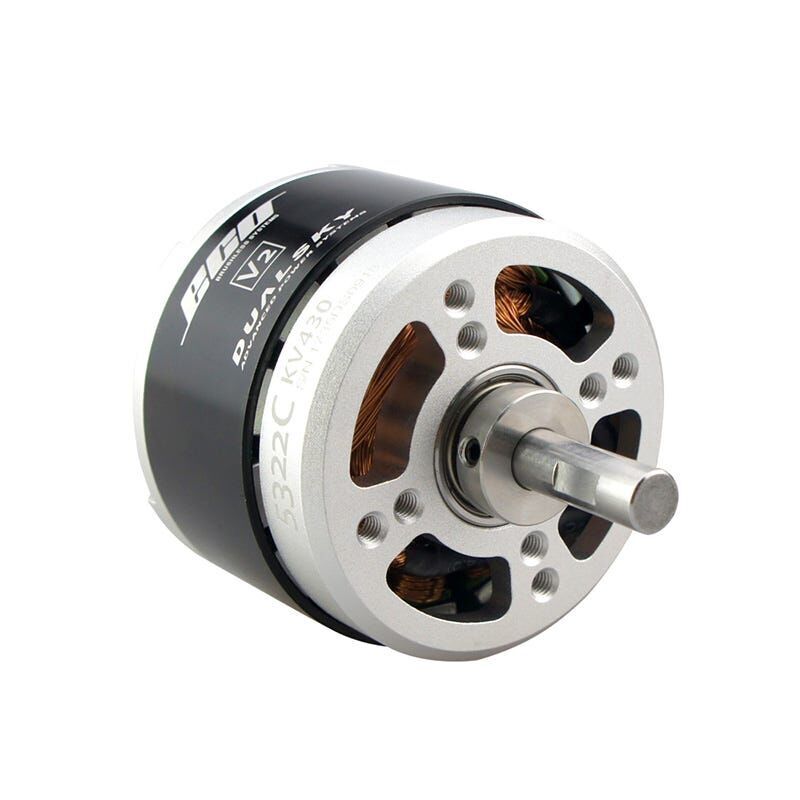

Dualsky Eco 5322C 430Kv Brushless Motor

Parts Finder

Select Vehicle

Enquire about this Product Yes, we price match

Share via:

Description

classic dualsky five-spokes back cover with simple lines
traditional dualsky color matching (silver-black-sliver), anodized and matte finishing
multi-surface rotating laser marking, logos, model and traceable serial number
motor structure strength increased by 25%
optimized stress distribution and strength increased but has not increased the weight
high strength and high toughness main shaft (hrc48)
the rotor limit adopts 2 insurance modes of circlip and stainless steel chocks
high temperature resistant, high toughness epoxy glue
the impact resistance increased by about 10g, and the survival ability has greatly improved
high precision double sides dynamic balancing
adopt nmb ball bearing, durable and low noise. Eco 41 and bigger, equipped with 3 ball bearings
optimized heat dissipation ways
motor working life significantly increased by 50% (same load and working environment)
modular design: main shaft, case and accessories (propeller mount and motor mount) are all compatible with the upcoming ea series. The design of propeller mount is completely implanted from ga series
up to 500v insulation level. The stator is coated with insulated coating and completely insulated after winding
waterproof splash. Rust-proof main shaft, coil soak insulation, electrophoresis components and coated magnets make eco v2 waterproof, and no problem working in wet or rain environment. (please note: ball bearing not waterproof)
