Description

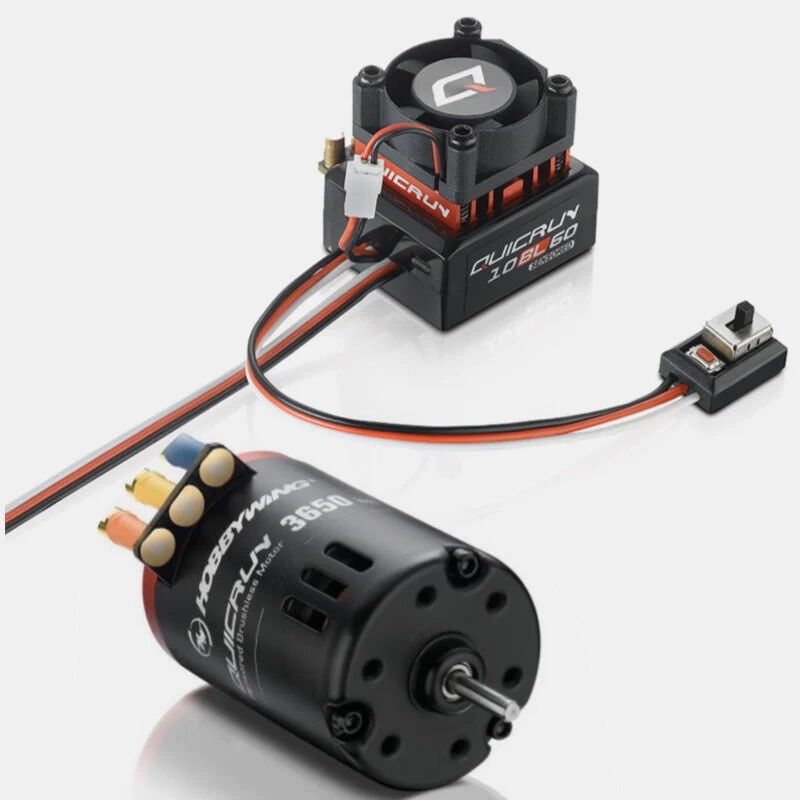

COMBO-QR10BL60-SD+QR3650SD-17.5T-G2

ESC Details

High performance but low price- users can own this reliable race-ready ESC at an affordable cost.
Compact size, suitable for various car chassis.
Auto identification system can recognize sensored or sensorless brushless motors automatically.
Smooth operation and plentiful adjustment options. Suitable for most kinds of competitions.
8 steps of timing adjustment greatly increase the output power of the motor and unlock its maximum potential.
Proportional brake with 4 steps of Maximum Brake Force adjustment, 8 steps of Drag Brake Force adjustment and 4 steps of Initial Brake Force adjustment.
9 steps of acceleration (punch) adjustment, from soft to very aggressive to fit various of cars, tires and tracks.
Multiple protections: Low voltage cut-off protection for LiPo or NiMH battery / Over-heating protection / Throttle signal loss protection / Motor Lock-up protection.
One-button sets the ESC. Easily reset all parameters to factory default settings.
Compatible with optional device ---- the portable Digital LED Program Card, especially convenient for outdoor use.

Model / SKU	QUICRUN-10BL60 Sensored / 30108000
Cont./Peak Current/ Resistance	60A/380A/0.0008Ω
Motor Type Supported	Sensored / Sensorless Brushless Motor
Car Applicable	1:10 On-road/Off-road/Buggy/Monster
Motor Limit	For 2S LiPo or 4-6 cell NiMH: ¥8.5T(1/10 On-road), ¥13.5T(1/10 Off-road) Note 1 For 3S LiPo or 8-9 cell NiMH:* ¥13.5T(1/10 On-road), ¥17.5T(1/10 Off-road) *Note 1
Battery	4-9 cell NiMH, 2-3S LiPo
BEC Output	6V/2A (Linear Mode)
Size/ Weight	33mm(L)28mm(W)31.5mm(H, with cooling fan) 59g (with wires, without cooling Fan)
External Program Port	Available
