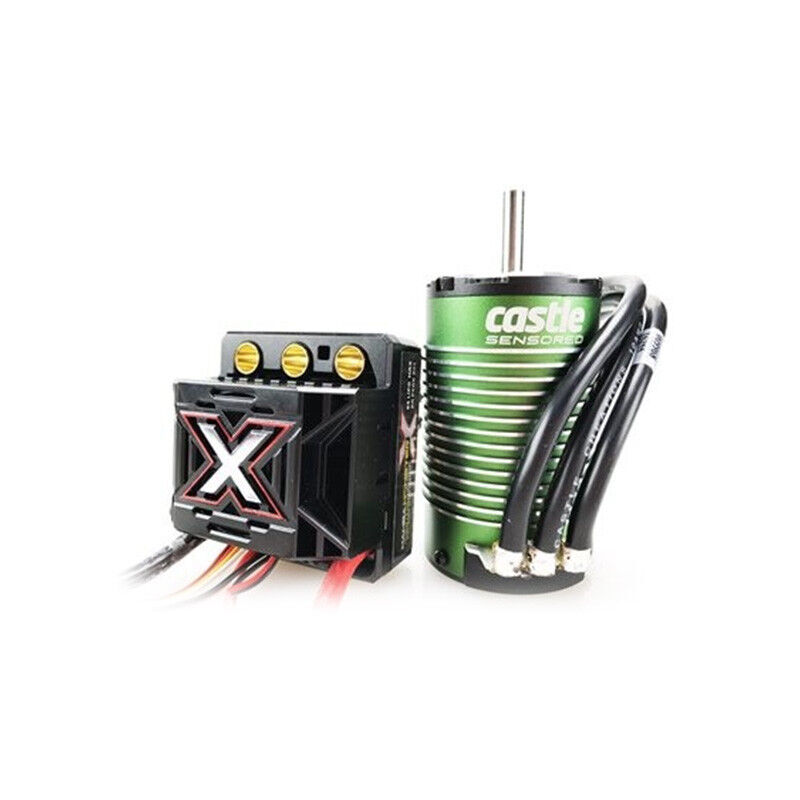

Castle Creations Monster X Brushless Esc With 2650Kv V2 Sensored Motor, 010-0145-04

Parts Finder

Select Vehicle

Enquire about this Product Yes, we price match

Share via:

Description

New 1512-2650kv v2 motor now included! Our commitment to excellence drives us to refine the user experience,optimize performance, and ensure that every aspect of our products are meticulously designed to provide the utmost satisfaction. Let's face it,even the best products have room for refinement, which is why we are excited to introduce the newly redesigned 1512-2650kv v2, a new spin on one of the most popular motors we've ever produced! The transformation has included several improvements, most contributed by new stator and rotor assembly upgrades that, in turn, allow for even higher efficiency, reduced temperatures, and smoother start-ups!

note: 011-0131-00 rotor replacement is not compatible with the v2 motor.

*not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives,then fully dry unit.

mamba monster x features:

input voltage range : 2s-6s lipo (esc only) (4s lipo max with included 1512-2650kv v2 motor)
smartsense, sensored only and brushed running modes
selectable 5. 5v, 6v, 7. 5v, 8v (8a peak) internal bec (battery eliminator circuit)
auxiliary wire functionality allows for on-the-fly adjustments such as max power and max brake.
esc is housed in a durable injection molded case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer.
removable 30mm fan
compatible with s. Bus2 telemetry link and futaba t4px, t7px and t7pxr transmitters
data logging to capture and record performance data from your vehicle
audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff.
convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake.
smartsense uses the motor s sensors at startup to provide cog-free starts, excellent torque and low-speed drivability. Once the motor is turning, the esc seamlessly transitions to castle s ultra-efficient sensorless mode.
castle link usb programming kit (coupon included with purchase)
optional smartphone-based programming with the b-link bluetooth adapter (sold separately) and castle link app available on google play or apple app store
proudly designed, assembled and supported in kansas, usa and backed by castle creations' 1-year warranty

1512-2650 v2 motor features:

input voltage range: 2s-4s lipo
redesigned stator and rotor assemblies to improve magnetic flux.
reduced magnetic cogging, producing less residual drag brake.
increased efficiency, resulting in lower temperatures and longer run times.
smoother start-up, reducing cogging or stuttering when starting from a stop.
rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly. (see note above)
high-strength kevlar wrap and 180c grade neodymium sintered magnets
oversized nmb bearings and high-temperature, high-purity copper windings
castle 10 awg, high-strand-count silicone-insulated wire with 6. 5mm bullet connectors
high-performance 0. 2mm steel lamination stacked stator
oversized, low-resistance, gold-plated solder tabs
sensor board with high quality temperature-stabilized sensors
t6 aluminum cnc machines front/rear end bell
proudly designed and supported in kansas, usa.
backed by castle creations' 1-year warranty
