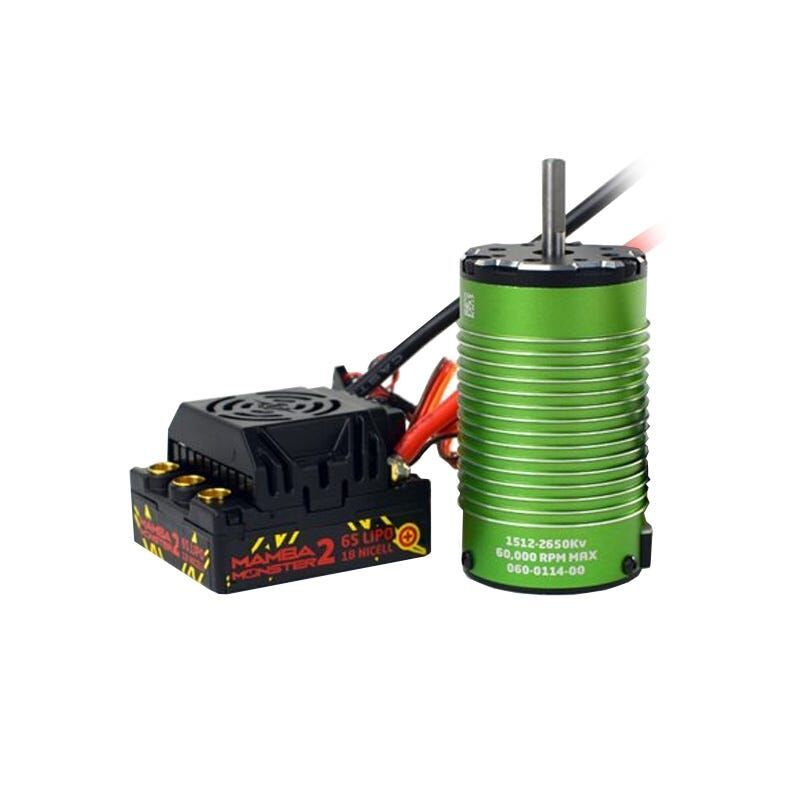

Buy CASTLE CREATIONS MONSTER 2 BRUSHLESS ESC WITH 2650KV V2 MOTOR, 010-0108-06 Online

Parts Finder

Select Vehicle

Enquire about this Product Yes, we price match

Share via:

Description

Brute Power and Sheer Stamina!

Castle Creations' introduction of the Mamba Monster was a break-through moment for R/C modelers wanting to experience what seemed to be unobtainable.Brute power and sheer stamina have made this our legacy power up for popular 1/8th scale buggies, truggies and on road vehicles and 1/10thscale monster trucks.

The Mamba Monster 2 ESC is capable of 2S LiPo to a maximum of 6S LiPo and is waterproof, which means you can run your vehicle through the morning dew, across the soggy snow or just about anywhere else you d be interested in running a 1/8th scale RC buggy or truck.

Industry Leading Software Functions

The Mamba Monster 2 includes a coupon for a free Castle Link USB device.This allows access to the full programming suite of adjustable settings that tune and tweak your vehicle to your preferences, resulting in an incredible RC driving experience.

*Sensored capabilities of the motor cannot be utilized with the MambaMonster 2. If you require sensored operation you will need a sensoredESC like the Mamba Monster X and Cobra 8.

ESC Features

Adjustable Internal BEC: 5.0 7.0, in .1v increments (5A Peak), default 5.5V
Factory equipped (30mm), fully removable cooling fan
Waterproof design allows for use in nearly any environment
LED error codes for common error conditions
Convenient transmitter programming for nine common adjustable settings
Full compatible with the Castle Link Programming Suite to modify settings and download software updates available via Windows-based Castle Link software and USB adapter (sold separately), or the Castle Link iOS App and a B-LINK Bluetooth Adapter. (sold separately)
Proudly Designed, Assembled and Supported in Olathe, KS USA
Backed by Castle Creations' 1 YR WARRANTY

Motor Features

Input Voltage range: 2s-6s LiPo (4s max with included 1512-2650kv V2 motor)
Redesigned rotor and stator assemblies.
Reduced magnetic cogging, producing less residual drag brake.
Increased efficiency, resulting in lower temperatures and longer run times.
Smoother start-up, reducing cogging or stuttering when starting from a stop.
Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly. (see note below)
High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets
Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings
Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 6.5mm Bullet Connectors
High-Performance 0.2mm Steel Lamination Stacked Stator
Oversized, low-resistance, gold-plated solder tabs
Sensor board with High Quality Temperature-Stabilized Sensors
T6 Aluminum CNC Machines Front/Rear End bell
Proudly Designed and Supported in Kansas, USA.
Backed by Castle Creations' 1-YEAR WARRANTY
