Description

The mamba x represents the latest and greatest in castle creations inc. Esc technology. Originally designed to overpower 1:10th scale buggies and trucks, the mamba x also delivers amazing race capabilities for 1:8th scale ebuggy. After being extensively race-tested by castle creations' lead mechanical engineer and team driver, taylor james - the mamba x has been approved for ebuggy racing with two of our most popular 15 series motors

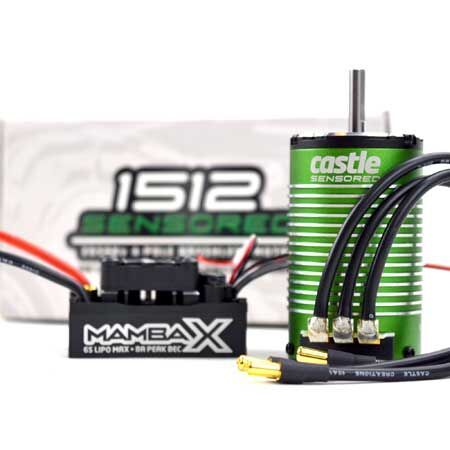

This roar approved combo is a mamba x esc and 1512 1. 5y 1800kv motor for lighter 1/8th scale applications. Normally this motor is paired with our 1/8th scale mamba monster x esc; but if you need to save some weight or need a smaller footprint, the mamba x is more than capable of running this motor. This setup is recommended for 3s or 4s use in a vehicle weighing less than ~9lbs and geared for no more than ~45 mph. If you have a heavier vehicle, looking for more speed or just want to beat the ever loving snot out of your vehicle we would recommend picking up the mamba monster x combo.

  • wide 2s to 6s input voltage range ((3-4s lipo max w/15121800kv motor)
  • sensored motor support (castle xseries sensor harness included)
  • waterproof
  • 8a adjustable bec (5. 25v8. 0v)
  • datalogging
  • rugged cnc aluminum case
  • castle link programming support
  • smartsense
  • integrated capacitors
  • removable 30mm cooling fan
  • integrated 4mm bullet connectors
  • 12 awg power wires
  • waterproof switch
  • audible alerts
  • 4pole 12slot rebuildable design
  • quietsense technology
  • roar standard sensor port and labeled connections
  • highperformance 0. 2 mm steel lamination stacked stator
  • highstrength kevlar wrap
  • highstrength, 180 ° c grade, neodymium sintered magnets
  • oversized, lowresistance, goldplated solder tabs
  • oversized nmb bearings
  • m3 and m4 @ 25mm mounting hole
  • 4mm male castle bullet connectors
  • 210mm length sensor wire
  • optional cooling fan coming soon
  • silicone coated sensor board

Read More
Specifications
SKU CSE010015506
Barcode # 819326011917
Brand CASTLE CREATIONS
