Description

CRYO-DRIVE, Castle s latest break-through technology, minimizes the amount of time the ESC s electrical components spend generating heat. These software advancements work in parallel with a unique open housing design to allow increased directional airflow to cool critical components. With the integration of a 40mm fan and a forged elliptical fin heatsink, the new design maximizes airflow through the system, taking thermal performance to a whole new level. The results are cooler ESC temperatures, increased runtime and more power handling.

What's in the Box?

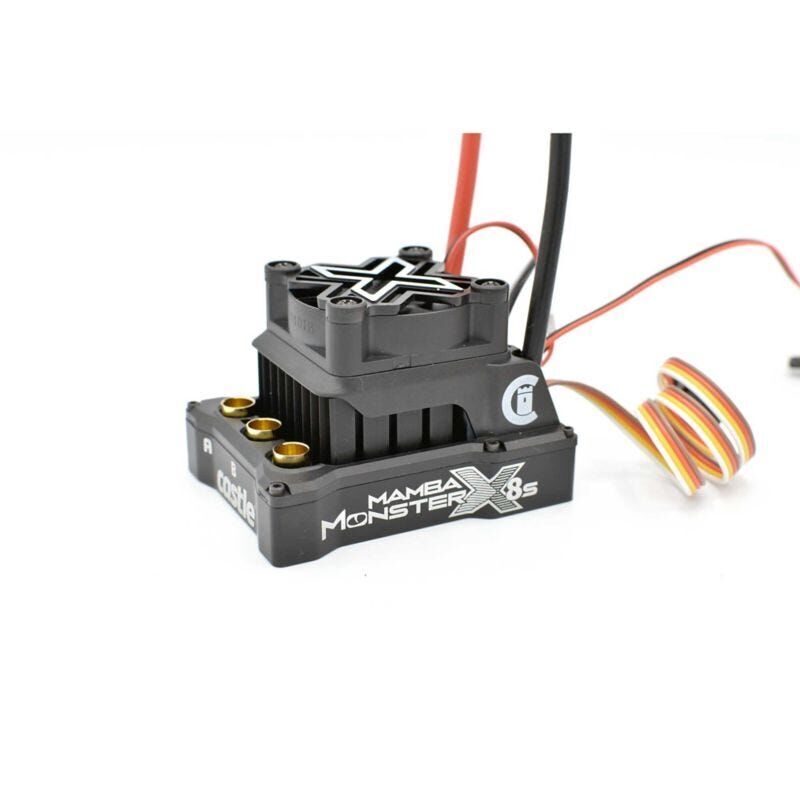

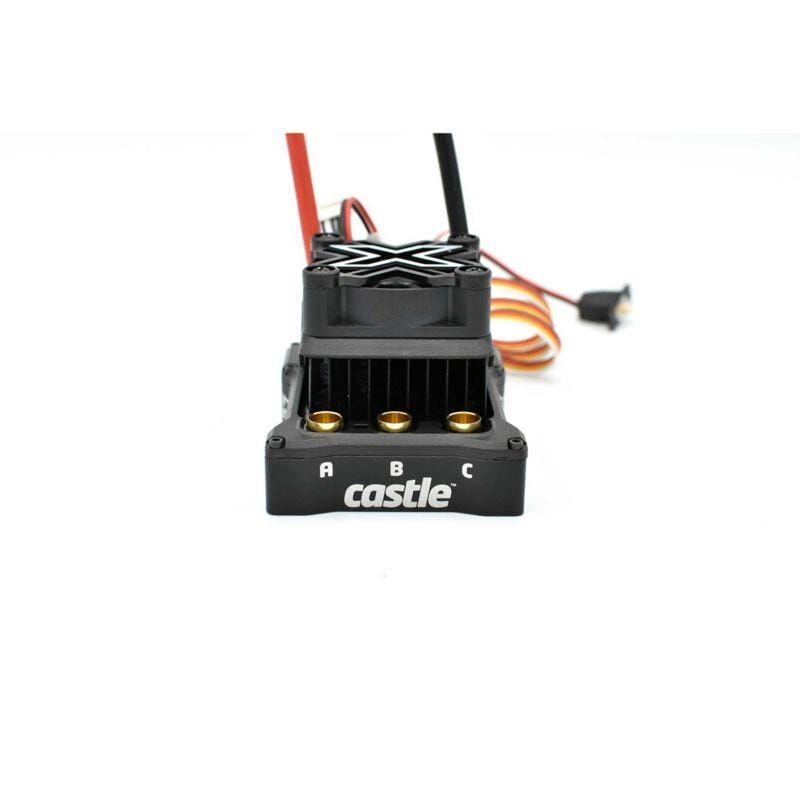

(1) 1/6 Mamba Monster X 8S 33.6V Waterproof ESC 8A Peak BEC
(1) Product Manual

Input voltage range 2S-8S LiPo
Sensored, Sensorless and SmartSense running modes
Powerful Integrated 8A Peak Adjustable BEC (5.25V-8.0V)
Premium forged heatsink with elliptical fins for superior airflow and increased heat dissipation
Oversized factory equipped thermally controlled 40mm fan
Waterproof design for all weather conditions
ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the components and promote efficient heat transfer
Data-logging capability to capture and record performance data from your vehicle
Auxiliary wire functionality for on the-fly adjustments using your transmitter
Audible alerts for easy diagnosis of possible issues such as motor over-temperature and low voltage cutoff.
Convenient transmitter programming for six adjustable settings such as cutoff voltage and drag brake.
Easily tune and update ESC with USB and Bluetooth programming options.
- Castle Link USB programming kit (coupon included with purchase)
- Optional smartphone-based programming with the B-LINK Bluetooth Adapter (sold separately) and Castle Link app available on Google Play or Apple App Store.
Proudly designed and manufactured in Olathe, Kansas USA and backed by Castle Creations 1-year warranty

A high current connector designed for high-powered electric systems, rated for 100+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors, soldered to the battery leads.
