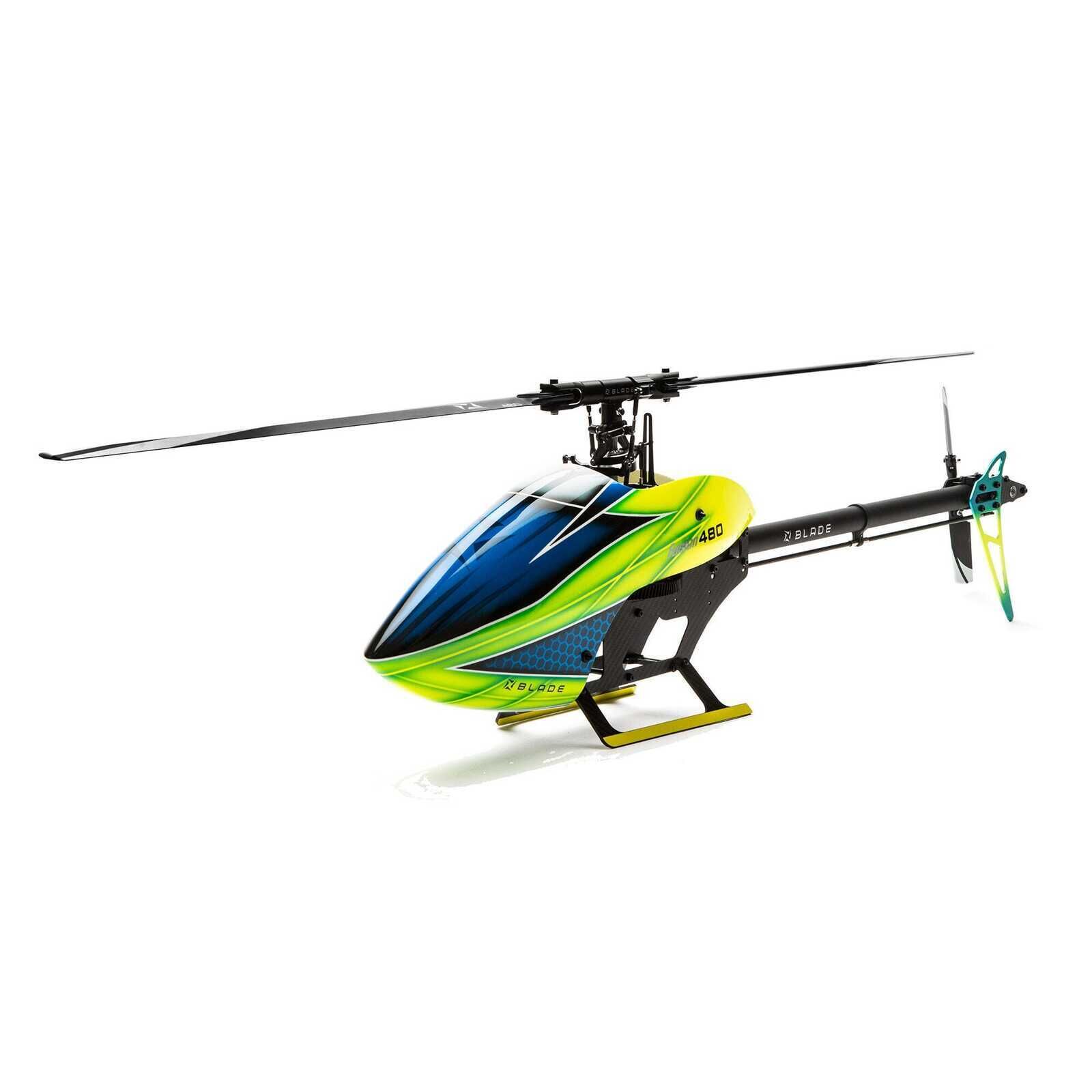

Blade Fusion 480 Smart Power Combo Kit

The Blade Fusion 480 Smart Power Combo Helicopter Kit is a high-end craft, packed with features and built on a durable airframe to take it through the skies with confidence. This machine features lightweight carbon fiber and anodized aluminum construction presenting exceptional rigidity and durability. The optimized control system geometry offers the most efficient and responsive control. The quiet helical main gear is ready to be driven by a 40-43mm brushless motor bringing high power and torque. A belt-driven tail assembly is housed in construction utilizing both carbon fiber and aluminum to ensure precision performance every flight. For advanced-level 3D pilots, the Fusion 480 delivers an aggressive heli leaving the others in its dust cloud.

Spektrum Avian Smart 100 Amp ESC Included
This Combo includes a Spektrum Avian Smart 100 amp ESC that is ready to transmit Smart Battery and ESC data straight to the Spektrum Transmitter all over one wire. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM. The Avian ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output for a locked in and active throttle response. It also offers the ability to setup a fixed RPM governor when programmed with the Spektrum Smart ESC Programmer Box.

Features:

• All metal and carbon fiber construction
• 2mm carbon fiber frame, 3mm carbon fiber landing gear, 2.5mm tail box/fin
• Efficient helical main gear paired with a steel pinion to reduce noise
• Oversized 25mm tail boom eliminating the need for boom supports
• 6mm wide belt-driven tail with adjustable belt tension
• 5mm high-strength steel tail shaft paired with metal bell crank, hub and grips
• Full carbon fiber and aluminum tail box with large aluminum pulley
• 5mm carbon fiber tail pushrod for precise tail control
• High-strength steel 10mm main shaft and 8mm spindle
• Standard size servos for cyclic and tail
• Hidden tail servo for a sleek look
• Capable of 3000 RPM head speed for aggressive flight performance

Frame:

• All metal and carbon fiber construction
• 2mm carbon fiber frame, 3mm carbon fiber landing gear, 2.5mm tail box/fin
• Painted carbon fiber skids and tail for easy visibility
• Painted fiberglass canopy
• Aluminum battery tray with (2) oversized battery straps
• Aluminum bearing and servo block with Optimized Servo Geometry

Tail:

• Oversized 25mm tail boom eliminating the need for boom supports
• 6mm wide belt-driven tail with adjustable belt tension
• 5mm high-strength steel tail shaft paired with metal bell crank, hub and grips
• Full carbon fiber and aluminum tail box with large aluminum pulley
• 5mm carbon fiber tail pushrod for precise tail control
• Hidden tail servo for a sleek look

Mechanics:

• 480mm (main) and 85mm (tail) carbon fiber blades
• Black anodized aluminum swashplate
• Aluminum blade grips with CNC zero pitch indicator
• High-strength steel 10mm main shaft and 8mm spindle
• Efficient helical main gear paired with a steel pinion to reduce noise

Electronics/Power System:

• Accepts 6s 3700-5000 mAh LiPos
• Accepts 40-43mm brushless outrunner motor (1300Kv € “ 1400Kv)
• Accepts 90 Amp ESC
• Accepts Standard sized servos for cyclic and tail
• Aluminum battery tray with (2) oversized battery straps
• Accepts popular flybarless control systems and receivers

Specifications:

Approximate Flight Time: ~5 mins

Battery: 6s 22.2V 3700mAh through 6s 22.2V 5000mAh

Canopy/Body Material: Fiberglass

Completion Level: Kit

Flying Weight: Varies depending on equipment selected

Height: 302mm [11.9in]

Length: 980mm [38.6in]

Main Blade Material: Carbon Fiber

Main Frame Material: Carbon Fiber

Main Motor Type: Brushless

Main Rotor Blade Length: 480mm [18.9in]

Main Rotor Diameter: 1095mm [43.1in]

Main Rotor Head Type: Collective Pitch Flybarless

Pinion Size: 12 tooth

Skill Level: Level 3

Swashplate Type: 120 Degree CCPM

Tail Blade Material: Carbon Fiber

Tail Drive: Belt Drive

Tail Ratio: 4.16667

Tail Rotor Blade Length: 85mm [3.3in]

Tail Rotor Diameter: 232mm [9.1in]

Width: 136mm [5.4in]

Includes:

• (1) Fusion 480 Helicopter Kit
• (1) 4320-1300Kv Brushless Motor
• (1) Avian 100 amp Smart ESC
• (1) User Manual

Needed to Complete:

• Spektrum „ ¢ DX6 6-Channel DSMX Transmitter
• Spektrum Hi-Torque Cyclic Servo
• Spektrum Hi-Speed Tailrotor Servo
• E-flite 4400mAh 6S 22.2V 30C LiPo, 10AWG: EC5
• Spektrum DSMX Flybarless Control System
• Spektrum DSMX Remote Receiver
