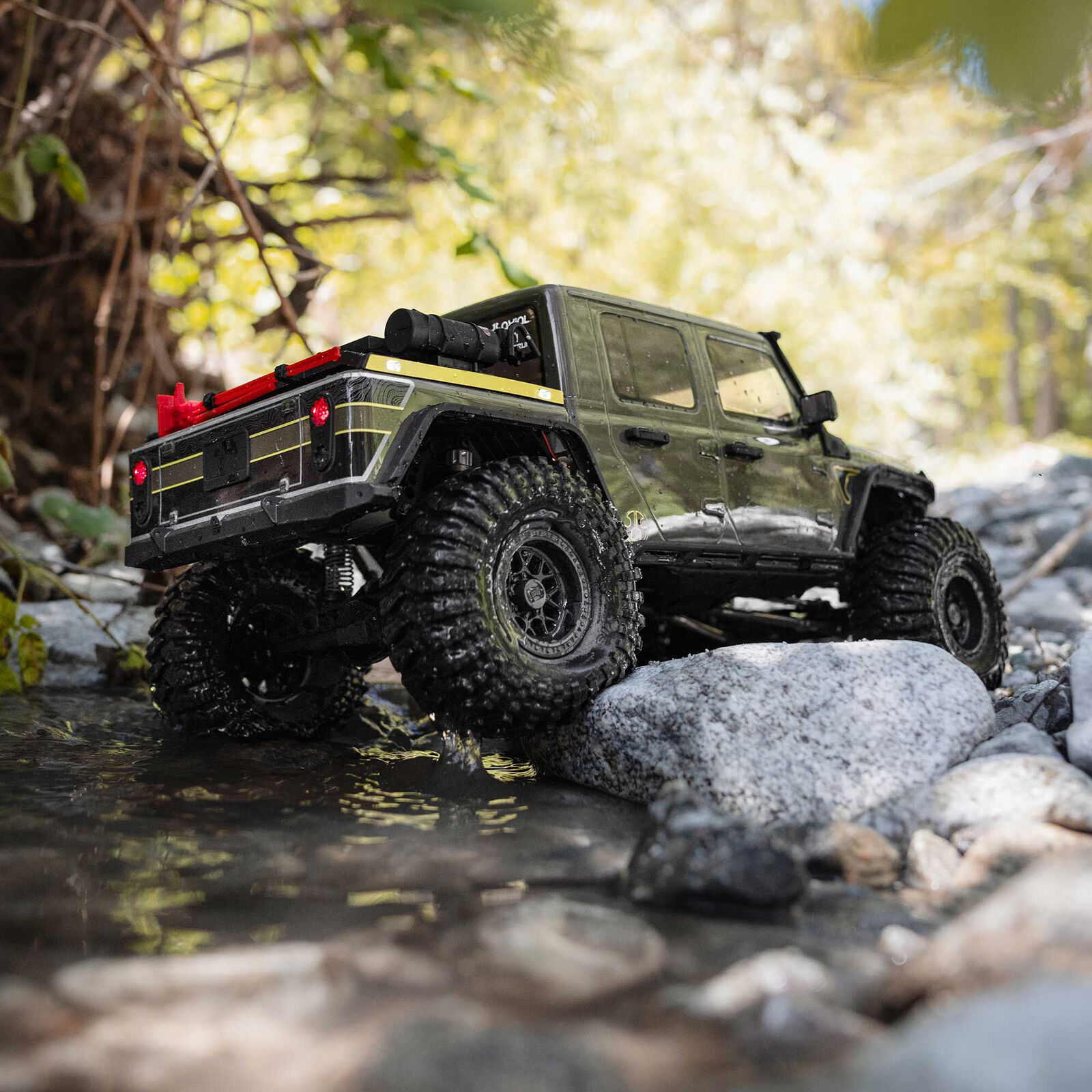

Axial SCX10 III Motobilt Waypoint Jeep JT Gladiator 1/10 4WD RTR Green - AXI-2443T2

The Axial SCX10 III Motobilt Waypoint Jeep JT Gladiator brings one of the most extreme full-size off-road Jeep builds to life in highly detailed 1/10 scale.

Developed in partnership with Motobilt, this officially licensed crawler recreates the distinctive Waypoint Jeep JT Gladiator with a bobbed bed, Motobilt bumpers, Baja Designs lighting, KMC Grenade beadlock wheels and Maxxis Trepador tyres.

Underneath the highly detailed body is Axial's proven SCX10 III 4WD platform, equipped with a steel C-channel chassis, AR45 straight axles, aluminium oil-filled shocks, all-metal transmission gears and a factory-installed DIG system.

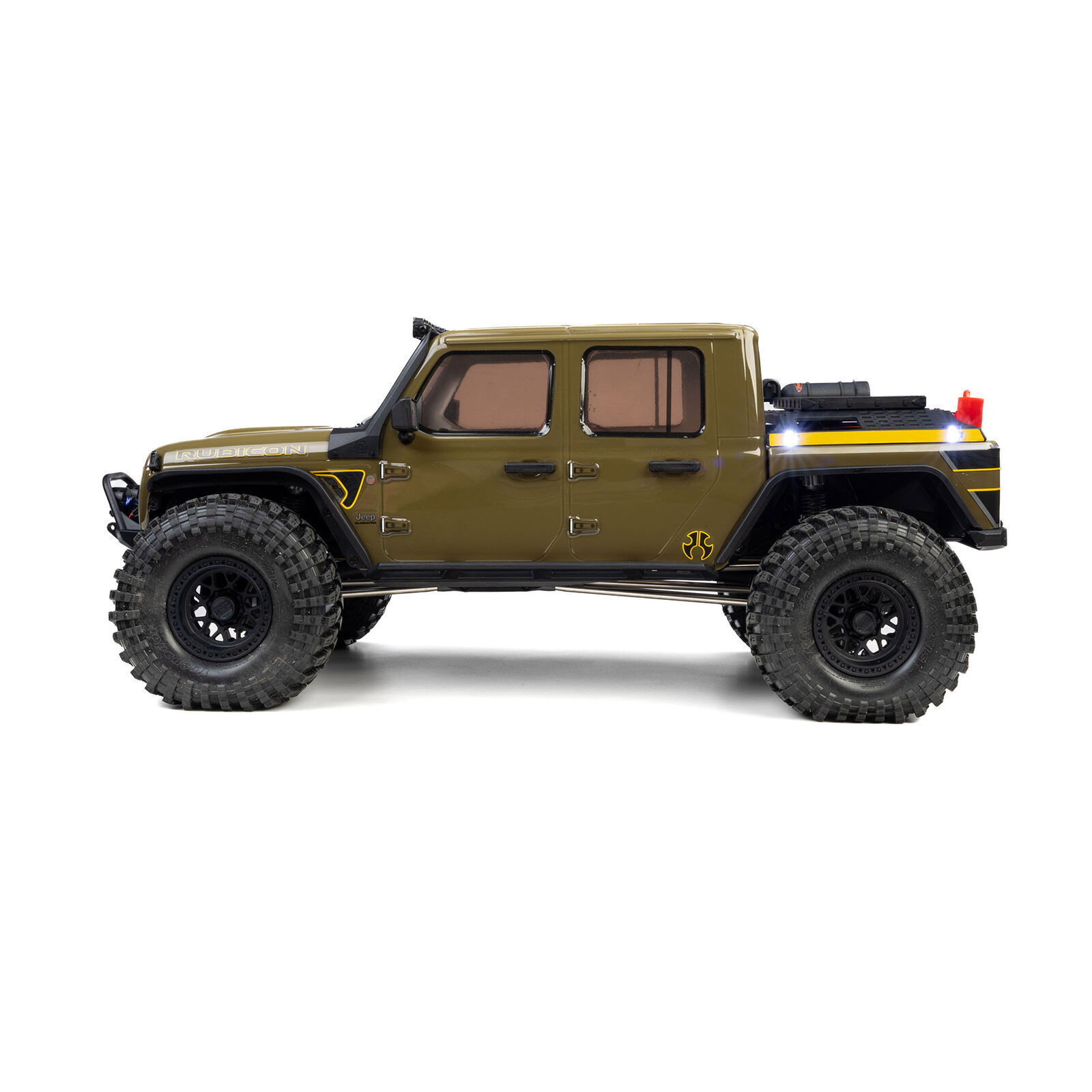

The AXI-2443T2 version comes finished in the distinctive Green colour scheme.

Official Motobilt Waypoint Styling

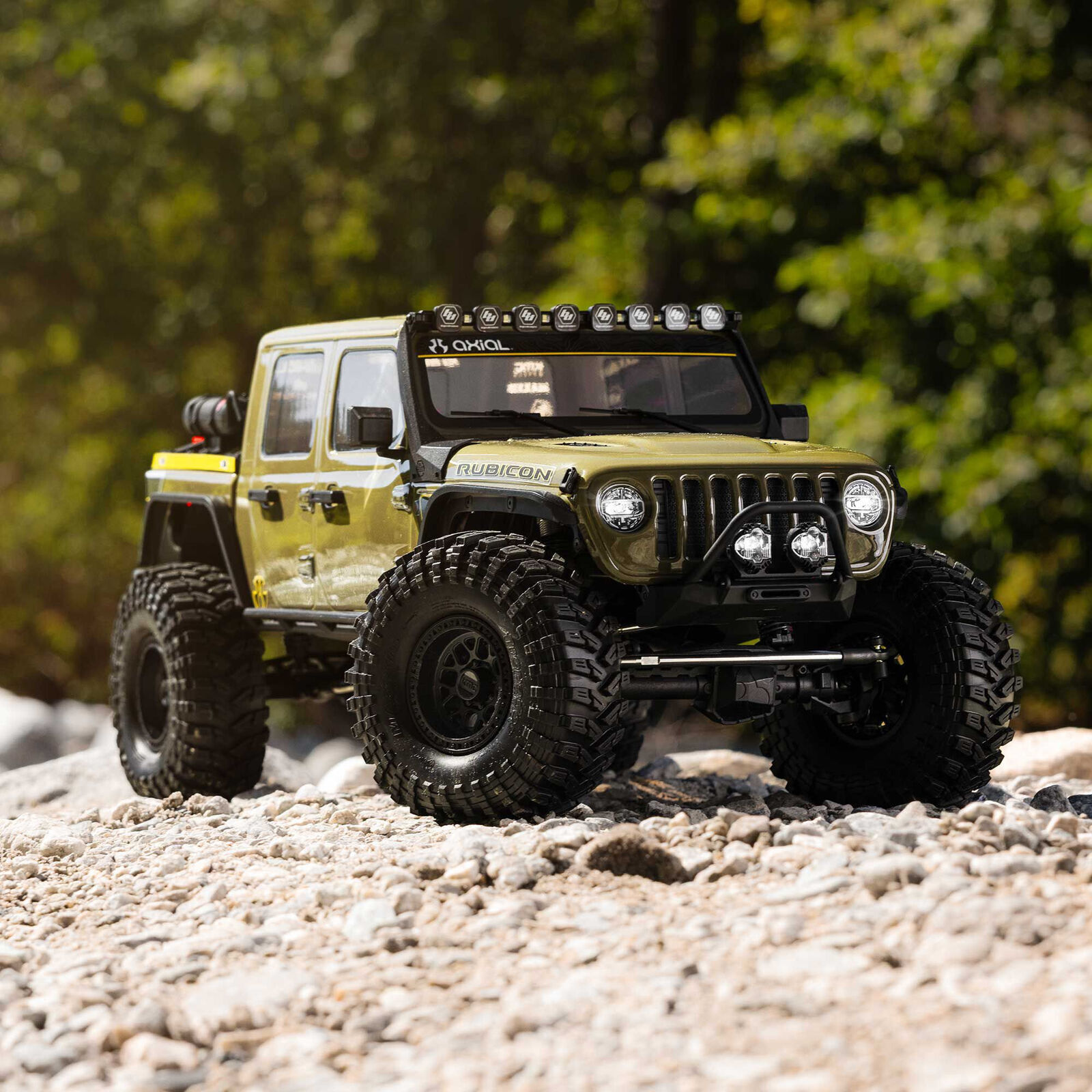

The durable polycarbonate Jeep JT Gladiator body comes fully painted and assembled with authentic details including Jeep's iconic 7-slot grille, detailed fender flares, moulded door handles, hood vents and side mirrors.

Motobilt Waypoint details include:

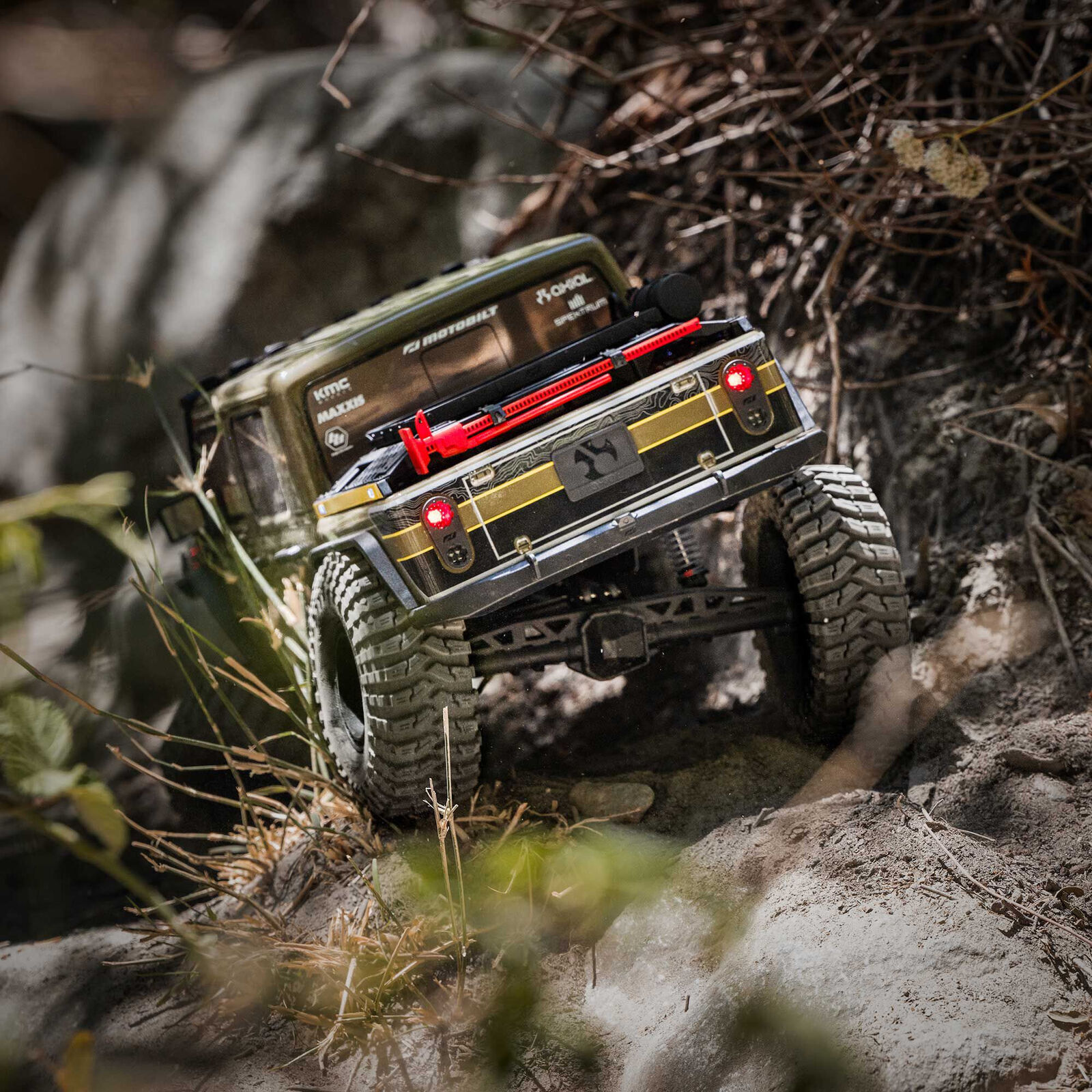

• Motobilt front and rear bumpers
• Baja Designs LP6 bumper lights
• Baja Designs S2 bed rail lights
• Scale 15lb CO2 tank
• Hi-Lift jack
• Bobbed rear bed for improved departure clearance
• Detailed inner fender wells

Both T1 and T2 receive the same authentic Motobilt Waypoint trim and scale accessories.

Axial Slick Rock 35T Brushed Power

Power comes from an Axial Slick Rock 35-Turn 540 brushed motor matched with a Spektrum Firma 40A waterproof brushed ESC.

The combination provides smooth low-speed control and plenty of torque for technical crawling, steep climbs and challenging trail terrain.

Factory-Installed DIG System

The SCX10 III transmission features a factory-installed DIG system, operated directly from the third channel of the included Spektrum SLT3 transmitter.

Activating DIG locks the rear drivetrain while allowing the front wheels to continue driving. This enables much tighter turning and provides additional control when negotiating technical rock sections.

AR45 Straight Axles

The AR45 straight axles provide excellent crawling performance while maintaining realistic scale appearance.

The front axle features a driver-offset differential housing for additional scale realism, while an optional overdrive gear can also be installed for further drivetrain tuning.

Aluminium Adjustable Shocks

Oil-filled shocks with threaded aluminium bodies and single coil-over springs provide smooth suspension movement and easy adjustment.

The front 3-link and rear 4-link suspension use heavy-duty 6mm stainless steel links and stainless steel pivot balls for excellent durability on demanding trails.

Licensed KMC Wheels & Maxxis Tyres

The Waypoint Jeep rolls on officially licensed KMC Grenade true beadlock wheels wrapped in Maxxis Trepador soft-compound tyres.

The aggressive tread and side lugs provide excellent grip across rocks, dirt and challenging trail surfaces while adding to the authentic full-size appearance.

Full LED Lighting

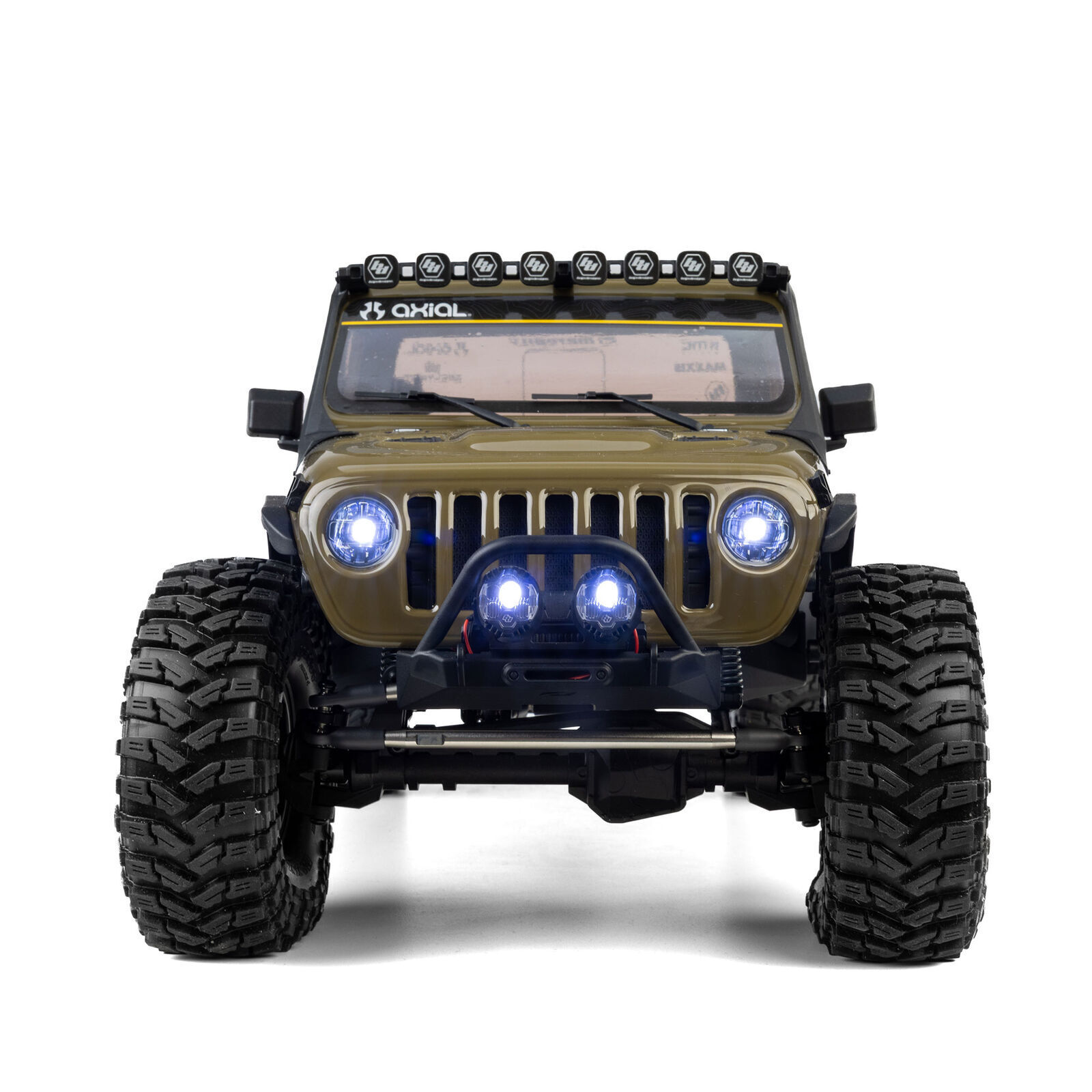

Factory-installed LED lighting provides impressive scale realism and excellent visibility for night-time trail driving.

LEDs are fitted to the front bumper, headlights, taillights and bed rack, complementing the detailed Motobilt Waypoint body.

Key Features

• Officially licensed Jeep JT Gladiator
• Authentic Motobilt Waypoint build
• Product Code: AXI-2443T2
• Green colour scheme
• 1/10 scale
• Ready-to-Run
• Full-time 4WD
• Bobbed rear bed
• Motobilt front and rear bumpers
• Baja Designs LED lighting
• KMC Grenade true beadlock wheels
• Maxxis Trepador soft-compound tyres
• AR45 straight axles
• Steel C-channel chassis
• 13.9" extended wheelbase
• Aluminium threaded oil-filled shocks
• Front 3-link suspension
• Rear 4-link suspension
• 6mm stainless steel suspension links
• All-metal transmission gears
• Full ball-bearing transmission
• Factory-installed DIG system
• Axial Slick Rock 35T brushed 540 motor
• Spektrum Firma 40A waterproof ESC
• Spektrum S683 steering servo with steel output gear
• Spektrum SX108 DIG micro servo
• Spektrum SR515 receiver
• Spektrum SLT3 3-channel transmitter
• Standard and shorty battery compatibility
• Detailed scale accessories

Specifications

Brand: Axial
Model: SCX10 III Motobilt Waypoint Jeep JT Gladiator
Part Number: AXI-2443T2
Scale: 1/10
Vehicle Type: Rock Crawler
Colour: Green
Drive: 4WD
Power: Electric Brushed
Motor: Axial Slick Rock 35T 540 Brushed
ESC: Spektrum Firma 40A Waterproof Brushed
Radio: Spektrum SLT3 3-Channel
Receiver: Spektrum SR515
Steering Servo: Spektrum S683 with 25T Steel Output Gear
DIG Servo: Spektrum SX108 Micro Servo
Transmission: All-Metal Gears with DIG
Axles: AR45 Straight Axles
Chassis: Steel C-Channel
Length: 551mm
Width: 251mm
Height: 234mm
Wheelbase: 13.9" / 353mm
Weight: Approx. 3.02kg without battery
Wheel Hex: 12mm
Pinion: 14T
Spur Gear: 56T
Battery Compatibility: 2S or 3S LiPo
Battery Connector: IC3
Completion Level: Ready-to-Run

What's Included

• Axial SCX10 III Motobilt Waypoint Jeep JT Gladiator 4WD RTR – Green
• Spektrum SLT3 3-channel transmitter
• Spektrum SR515 receiver
• Spektrum Firma 40A waterproof brushed ESC
• Axial Slick Rock 35T brushed motor
• Spektrum S683 steering servo
• Spektrum SX108 DIG micro servo
• 4 × AA transmitter batteries
• Product manual

Required to Complete

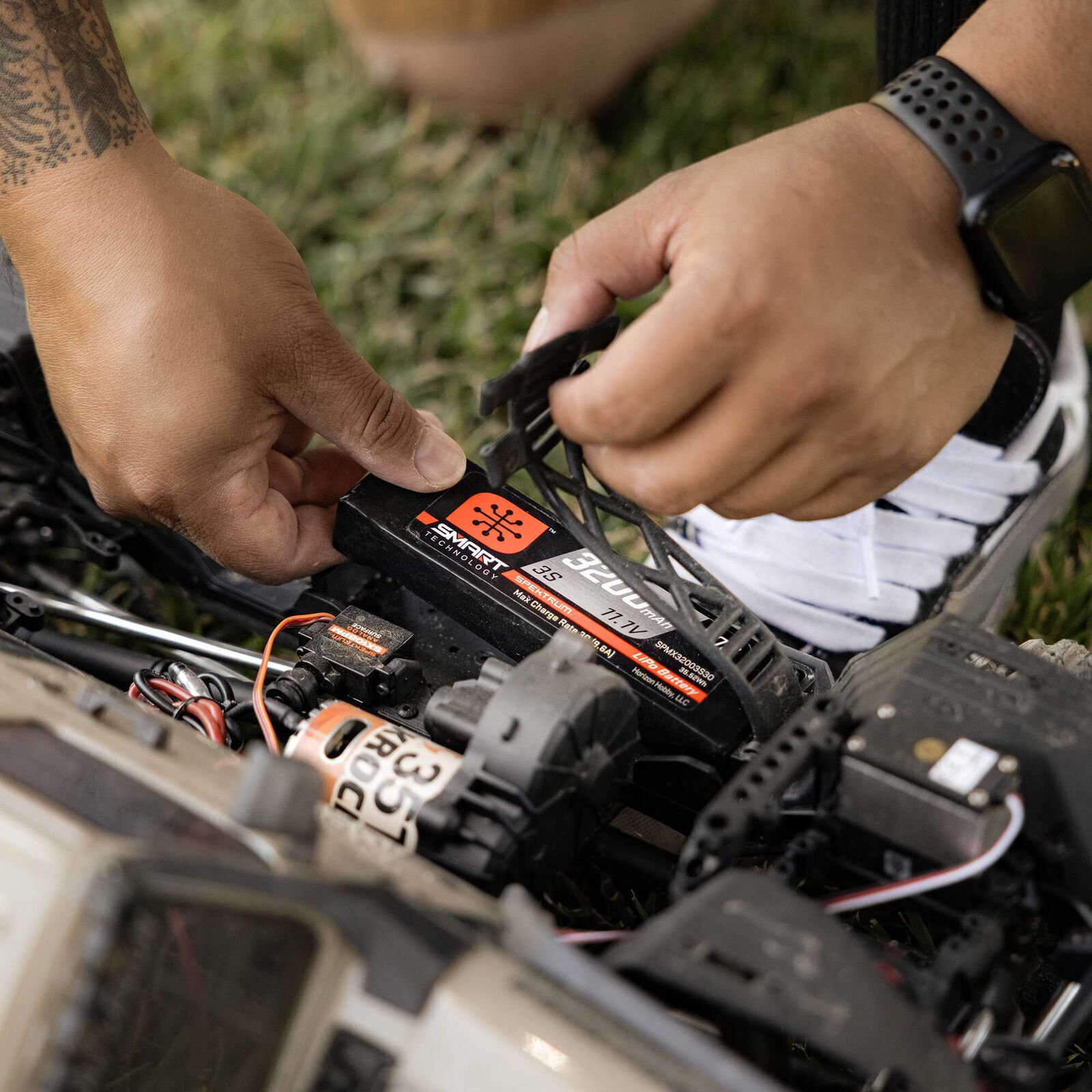

• Suitable 2S or 3S LiPo battery with IC3 connector
• Compatible LiPo battery charger

Axial recommends an 11.1V 3200mAh 3S 30C Smart G2 LiPo battery with IC3 connector.

Serious Scale Crawling Performance

The Axial SCX10 III Motobilt Waypoint Jeep JT Gladiator combines outstanding licensed scale detail with the proven capability of the SCX10 III platform.

With its factory DIG system, AR45 straight axles, aluminium shocks, all-metal transmission, Maxxis tyres, KMC beadlocks and extensive LED lighting, the AXI-2443T2 delivers an excellent combination of realistic appearance and genuine trail performance.
