ARRMA QUAKE 223S BLX 1/10 2WD Brushless Monster Truck RTR Green - ARA3537T2

The ARRMA QUAKE 223S BLX is a tough, powerful 1/10 scale 2WD brushless monster truck designed to deliver serious performance while still being accessible to newer RC drivers.

ARRMA's versatile 223S platform lets you start with a 2S LiPo battery for manageable 35+ mph performance. When you're ready for more speed, simply install a suitable 3S LiPo battery to unleash 50+ mph / 80+ km/h performance — with no motor, ESC or drivetrain upgrades required.

With huge monster truck tyres, oil-filled suspension, a heavy-duty transmission, Spektrum Dynamic Stability Control and a tough composite chassis, the QUAKE is built for wheelies, jumps and high-speed off-road bashing.

The ARA3537T2 comes Ready-to-Run in the aggressive Green colour scheme.

2S or 3S – Grow Into the Performance

The ARRMA 223S concept makes the QUAKE an excellent choice for drivers who don't want to quickly outgrow their first brushless monster truck.

Install a 2S LiPo and the QUAKE is capable of speeds exceeding 35mph. This provides plenty of performance while remaining easier for less experienced drivers to control.

When you're ready for more, install a 3S LiPo to unlock speeds exceeding 50mph / 80km/h.

No expensive power-system upgrades are required — the QUAKE is designed for both 2S and 3S straight from the factory.

Spektrum Dynamic Stability Control

The QUAKE features Spektrum Dynamic Stability Control (DSC) to help keep its powerful rear-wheel-drive performance under control.

DSC automatically provides steering corrections when required, helping the truck maintain its intended direction during hard acceleration and when driving on loose or slippery surfaces.

Four selectable DSC modes allow the amount of assistance to be adjusted as your driving skills improve:

High – Maximum assistance for beginners
Medium – Ideal for lower-grip surfaces
Low – Suited to higher-grip surfaces
Off – Full driver control

This makes the QUAKE easy to learn with while still allowing experienced drivers to take complete control.

Adjustable Throttle Limiting

The included Spektrum SLT2 2.4GHz transmitter also features throttle limiting.

Newer drivers can reduce the maximum available performance while learning, then progressively increase the power as their confidence and skills improve.

Combine 2S power, throttle limiting and DSC for an easy-to-manage starting point before moving up to the full 3S experience.

Spektrum 4000Kv Brushless Power

The QUAKE is powered by a Spektrum 3660 4000Kv brushless motor matched with a Spektrum SLT 45A waterproof 2-in-1 ESC and receiver.

The system supports both 2S and 3S LiPo batteries and integrates the DSC stability system into the receiver.

An ARRMA 40mm cooling fan helps manage motor temperatures during hard running.

Heavy-Duty 2WD Transmission

The QUAKE's heavy-duty rear-wheel-drive transmission is designed to handle its powerful brushless system.

Metal differential gearing provides additional durability, while the 2WD configuration gives the QUAKE the lively handling, wheelies and loose-surface action that make a powerful monster truck so much fun to drive.

The drivetrain uses a 16T pinion, 61T spur gear and Mod-0.8 gearing.

Tough Composite Chassis

A strong moulded composite chassis provides the foundation for the QUAKE.

The durable construction is designed for everyday bashing, while the mid-motor layout helps centralise weight for predictable handling.

Reliable hex hardware and mesh-safe motor plates make maintenance and adjustment straightforward.

Oil-Filled All-Terrain Suspension

The QUAKE features independent suspension with oil-filled coil-over shocks designed to soak up bumps, jumps and rough terrain.

Adjustable ride height lets you fine-tune the truck for different surfaces and driving conditions.

Combined with its large monster truck tyres, the suspension gives the QUAKE excellent capability across dirt, grass, gravel and other off-road surfaces.

Huge dBoots Cut Chevron Tyres

The QUAKE gets its aggressive monster truck stance from massive 127mm / 5-inch dBoots Cut Chevron tyres.

Their aggressive all-terrain tread provides plenty of traction for off-road bashing, while the large diameter helps the truck roll across rough surfaces.

The T2 version features Green wheels to complement the Green body graphics.

Clipless Monster Truck Body

The aggressive monster truck body comes painted, trimmed and fully decaled from the factory.

ARRMA's convenient clipless body retention system eliminates traditional body clips, giving the truck a cleaner appearance while still providing quick access when required.

Easy Bottom-Loading Battery Tray

Battery changes are quick and easy thanks to the bottom-loading battery tray.

There's no need to remove the body to change batteries. Simply access the battery compartment from underneath the truck, swap the pack and get back to driving.

The tray accommodates batteries measuring up to 140 x 50 x 35mm.

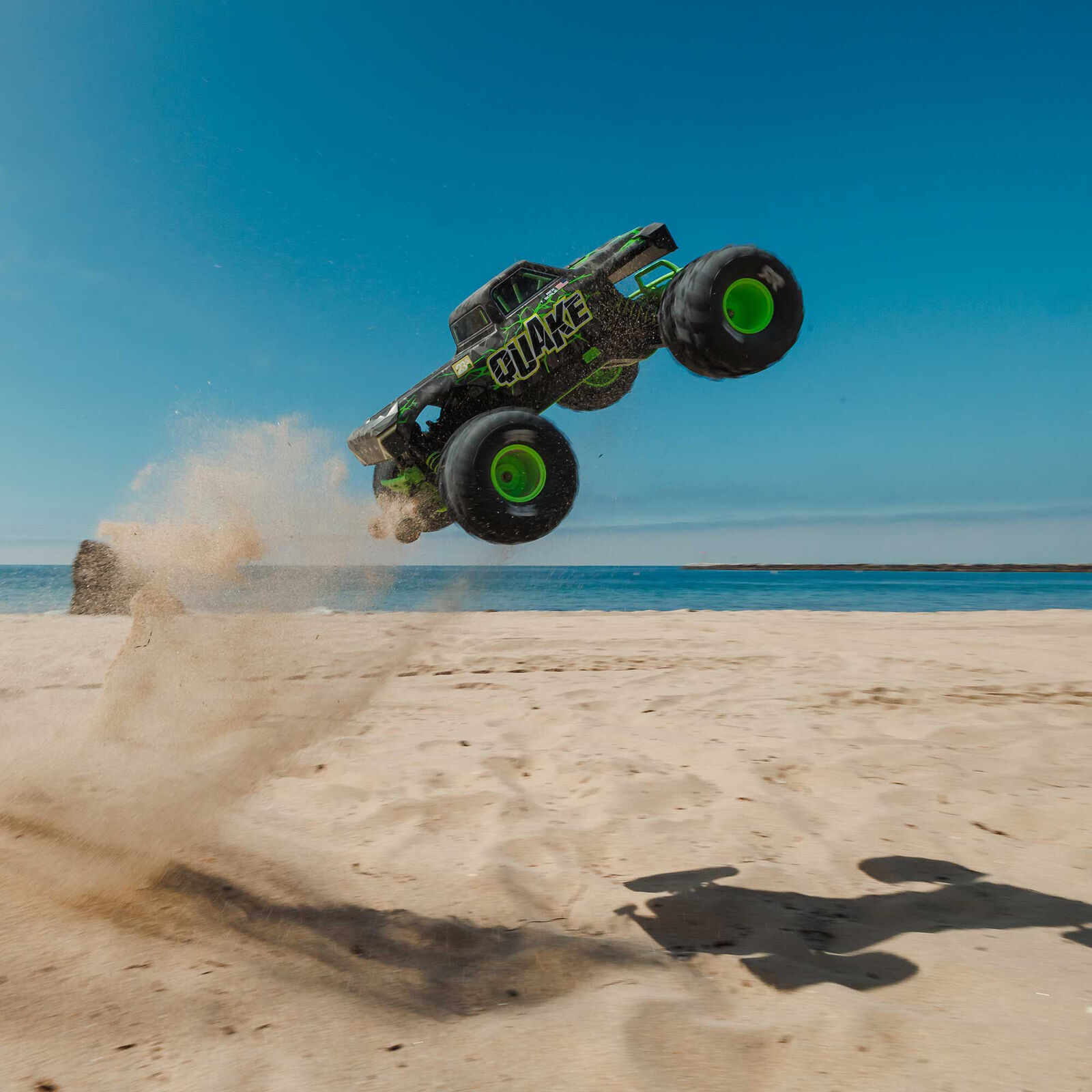

Factory-Installed Wheelie Bar

Put 3S brushless power through the rear wheels and the QUAKE is more than happy to lift the front end.

The factory-installed wheelie bar helps keep the truck under control during hard acceleration while making wheelie action easier and more predictable.

Key Features

• 1/10 scale monster truck
• Product Code: ARA3537T2
• Green colour scheme
• Green wheels
• Ready-to-Run
• Rear-wheel drive 2WD
• ARRMA 223S BLX brushless platform
• 2S and 3S LiPo compatible
• 35+ mph on 2S
• 50+ mph / 80+ km/h on 3S
• Spektrum 3660 4000Kv brushless motor
• Spektrum SLT 45A waterproof 2-in-1 ESC/receiver
• Spektrum Dynamic Stability Control – DSC
• Four selectable DSC modes
• Spektrum SLT2 2.4GHz transmitter
• Throttle limiting
• Spektrum S681 metal-geared waterproof digital servo
• ARRMA 40mm motor cooling fan
• Heavy-duty 2WD transmission
• Metal-geared differential
• Durable moulded composite chassis
• Oil-filled coil-over shocks
• Adjustable ride height
• Independent suspension
• Bottom-loading battery tray
• Clipless body mounting
• dBoots Cut Chevron monster truck tyres
• 127mm / 5-inch tyre diameter
• 2.8-inch monster truck wheels
• 14mm wheel hexes
• Factory-installed wheelie bar
• IC5 battery connector
• 4 × AA transmitter batteries included

Specifications

Brand: ARRMA
Model: QUAKE 223S BLX
Part Number: ARA3537T2
Scale: 1/10
Vehicle Type: Monster Truck
Colour: Green
Drive: 2WD
Power: Electric Brushless
Motor: Spektrum 3660 4000Kv Brushless
ESC/Receiver: Spektrum SLT 45A Waterproof 2-in-1 with DSC
Servo: Spektrum S681 Metal-Geared Waterproof Digital
Radio: Spektrum SLT2 2.4GHz
Battery Compatibility: 2S or 3S LiPo
Battery Connector: IC5
Maximum Speed: 50+ mph / 80+ km/h on 3S
Differential: Metal-Geared
Chassis: Moulded Composite
Shocks: Oil-Filled Coil-Over
Length: 465mm
Width: 345mm
Height: 230mm
Wheelbase: 295mm
Weight: Approx. 2.73kg
Tyre Diameter: 127mm / 5"
Wheel Size: 2.8"
Wheel Hex: 14mm
Pinion Gear: 16T
Spur Gear: 61T
Gear Pitch: Mod-0.8
Final Drive Ratio: 11.93:1
Maximum Battery Size: 140 x 50 x 35mm
Completion Level: Ready-to-Run

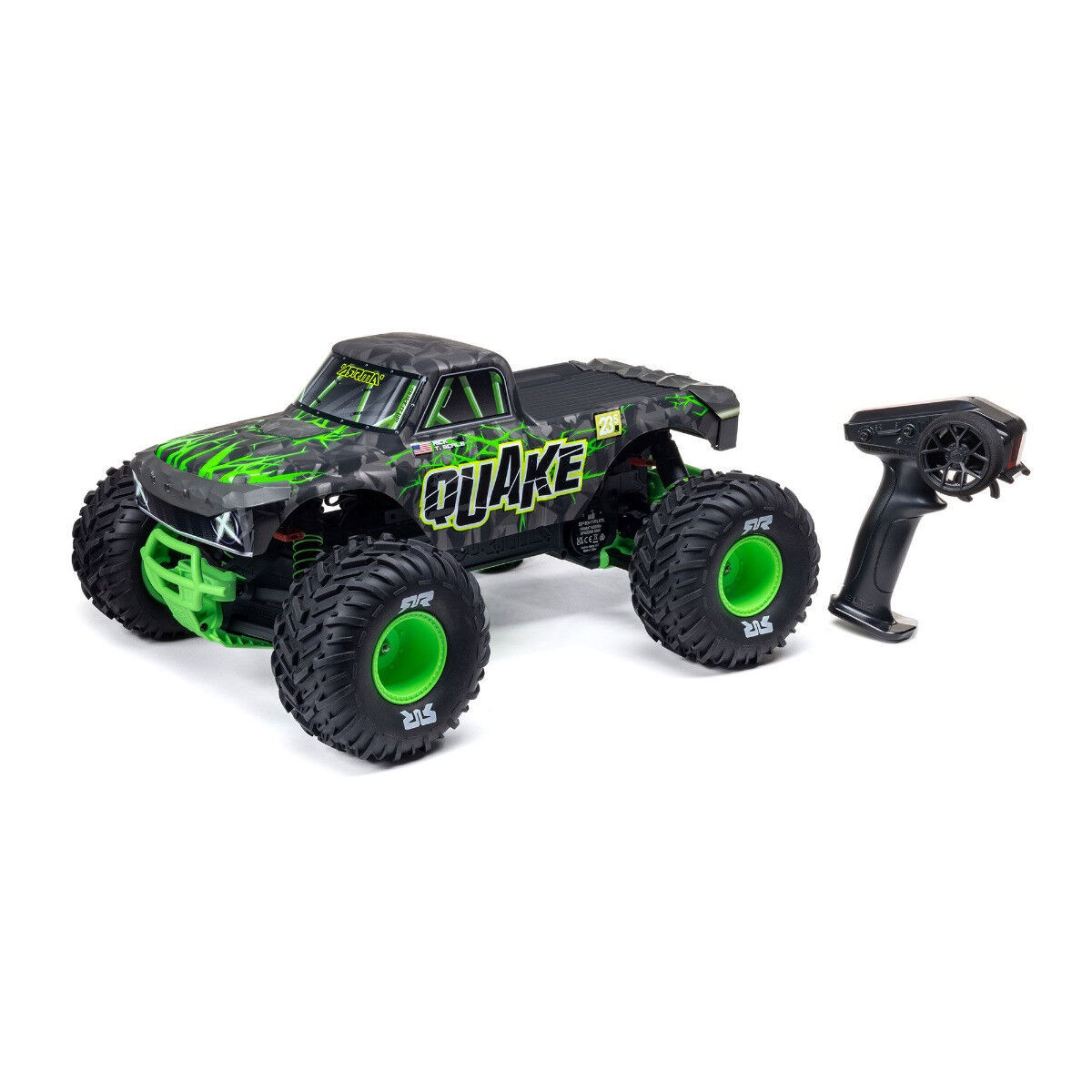

What's Included

• ARRMA QUAKE 223S BLX 1/10 2WD Monster Truck RTR – Green
• Spektrum 3660 4000Kv brushless motor
• Spektrum SLT 45A waterproof 2-in-1 ESC/receiver with DSC
• Spektrum S681 metal-geared waterproof digital servo
• Spektrum SLT2 2.4GHz transmitter
• 4 × AA transmitter batteries
• 2mm hex driver
• 2.5mm hex driver
• Wheel wrench/shock tool
• Instruction manual

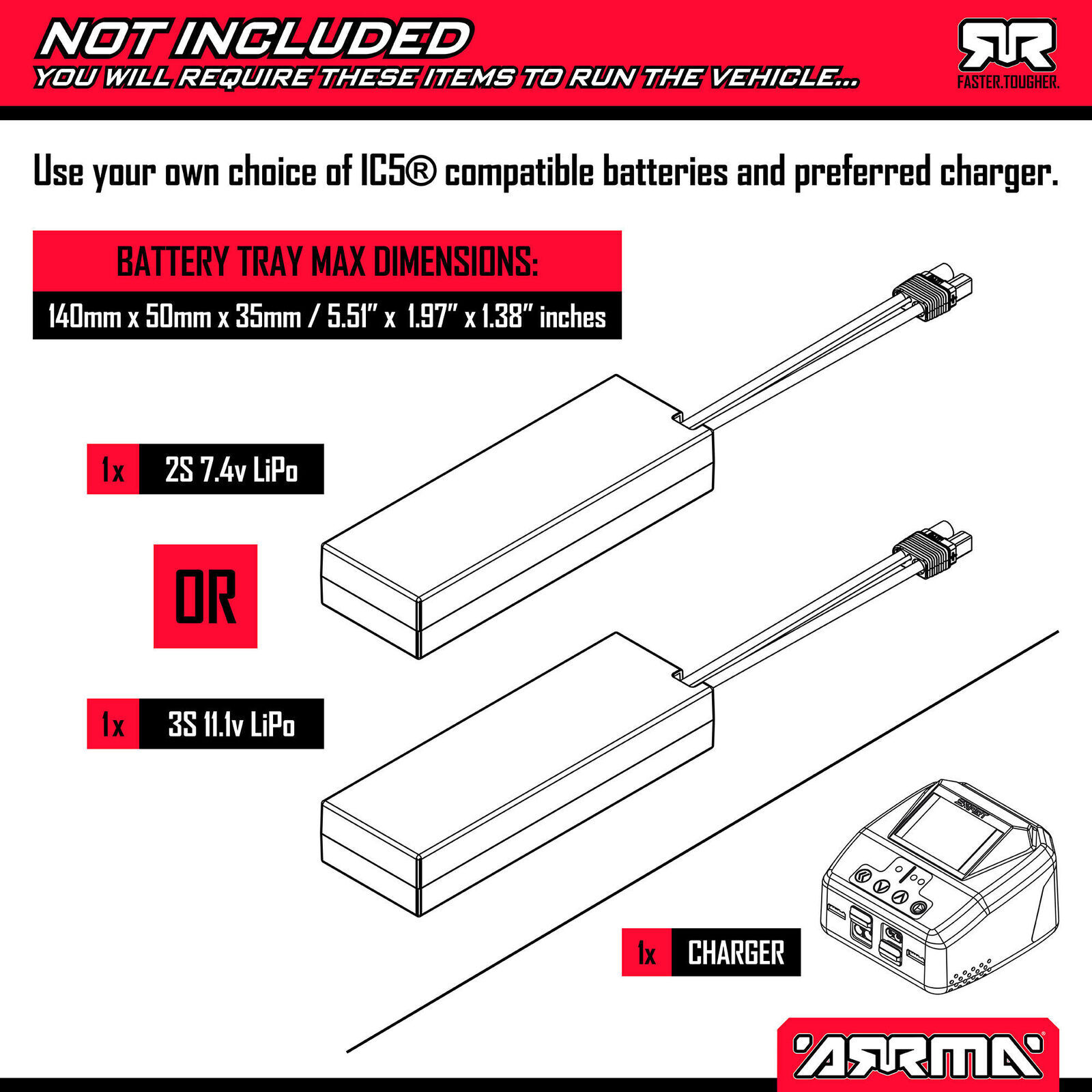

Required to Complete

• 1 × 2S or 3S LiPo battery with IC5 connector
• Compatible LiPo battery charger
• LiPo charging/safety bag

Maximum battery dimensions are 140 x 50 x 35mm.

A Monster Truck You Can Grow Into

The ARRMA QUAKE 223S BLX gives newer drivers an excellent way to get into serious brushless RC without buying a truck they'll quickly outgrow.

Start with 2S power, DSC assistance and reduced throttle for easier handling. As your skills improve, increase the available performance and reduce the stability assistance. When you're ready, install a 3S battery and unleash the QUAKE's 50+ mph performance.

With its huge monster truck tyres, powerful Spektrum brushless electronics, tough ARRMA construction and entertaining rear-wheel-drive handling, the QUAKE is built for wheelies, jumps and serious off-road fun.
