ARRMA QUAKE 223S BLX 1/10 2WD Brushless Monster Truck RTR Red - ARA3537T1

The ARRMA QUAKE 223S BLX is a tough, powerful and seriously fun 1/10 scale 2WD brushless monster truck designed for drivers who want an RC truck they can grow into.

ARRMA's versatile 223S platform lets you start with a 2S LiPo battery for manageable 35+ mph performance. When you're ready for more speed, simply install a suitable 3S LiPo battery to unleash 50+ mph / 80+ km/h performance — without changing the motor, ESC or drivetrain.

With huge monster truck tyres, oil-filled suspension, a heavy-duty transmission, Spektrum Dynamic Stability Control and a tough ARRMA composite chassis, the QUAKE is ready for everything from backyard bashing to high-speed off-road action.

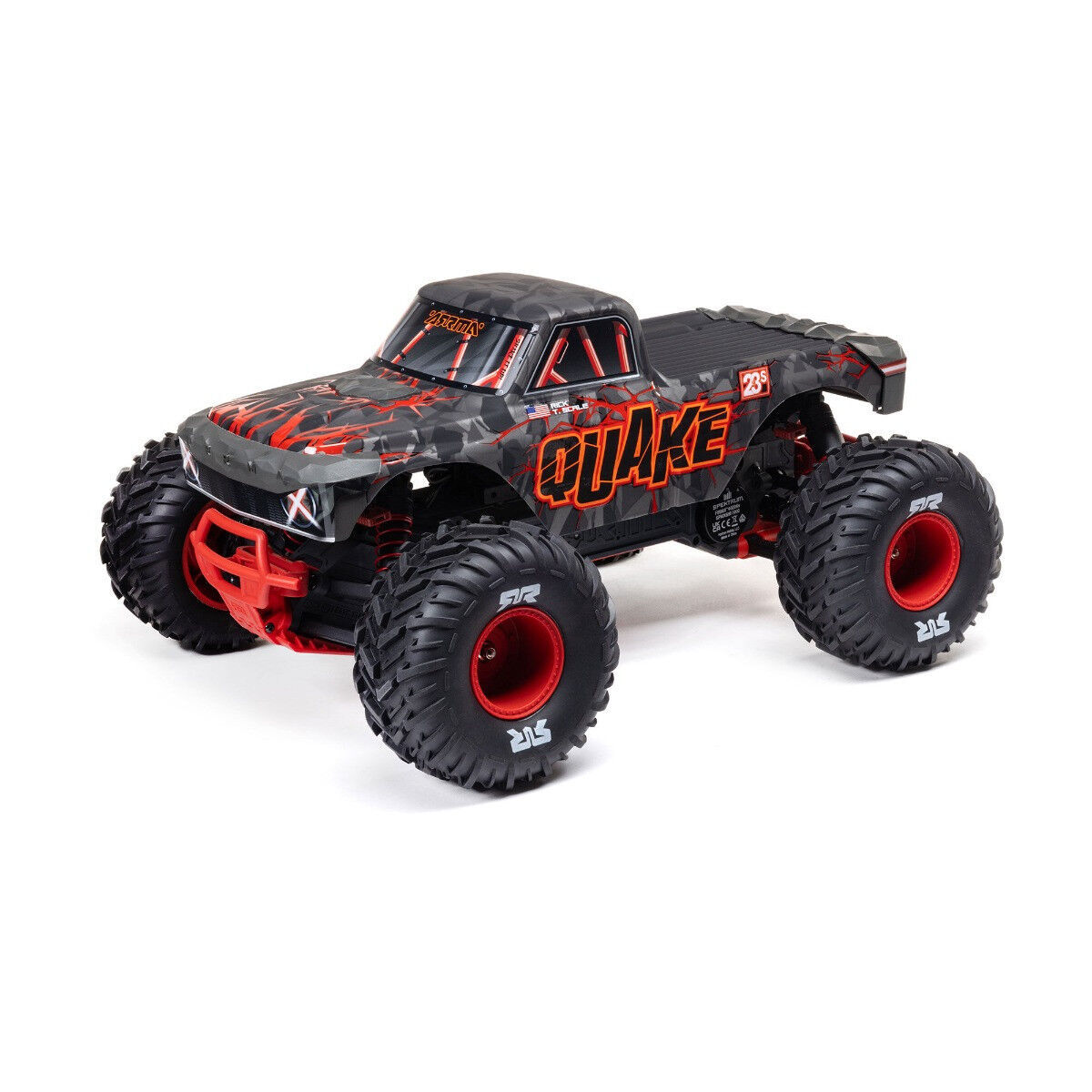

The ARA3537T1 comes Ready-to-Run in the aggressive Red colour scheme.

2S or 3S – Grow Into the Performance

The ARRMA 223S concept makes the QUAKE an excellent choice for both newer drivers and experienced bashers.

Install a 2S LiPo and the QUAKE is capable of speeds exceeding 35mph, providing plenty of performance while remaining easier to manage.

When you're ready to step things up, install a 3S LiPo and unlock speeds exceeding 50mph / 80km/h.

There's no need to replace the motor, ESC or drivetrain — the QUAKE is designed for both 2S and 3S power straight from the factory.

Spektrum Dynamic Stability Control

The QUAKE features Spektrum Dynamic Stability Control (DSC) to help keep this powerful rear-wheel-drive monster truck under control.

DSC automatically provides steering corrections when required, helping maintain the direction of the truck during hard acceleration and when driving across loose or slippery surfaces.

There are four selectable DSC modes:

• High – maximum assistance, ideal for beginners
• Medium – suited to lower-grip surfaces
• Low – ideal for higher-grip surfaces
• Off – full driver control

As your skills improve, simply reduce the assistance or turn DSC off completely.

Adjustable Throttle Limiting

The included Spektrum SLT2 2.4GHz transmitter features throttle limiting, allowing the QUAKE's maximum performance to be reduced while a new driver develops their skills.

Combined with 2S power and DSC, this makes the QUAKE much easier for a beginner to learn.

Then, as confidence increases, you can progressively unlock more performance before eventually moving up to full 3S power.

Spektrum 4000Kv Brushless Power

The QUAKE is powered by a Spektrum 3660 4000Kv brushless motor matched with a Spektrum SLT 45A waterproof 2-in-1 ESC and receiver.

This compact power system supports both 2S and 3S LiPo batteries and integrates the DSC gyro system into the receiver.

An ARRMA 40mm cooling fan helps keep motor temperatures under control during hard running.

Heavy-Duty 2WD Transmission

The QUAKE's rear-wheel-drive transmission is built to handle serious brushless power.

A heavy-duty gearbox transfers power to the rear wheels, giving the truck the lively handling, wheelies and loose-surface fun that make powerful 2WD monster trucks so entertaining.

The factory gearing uses a 16T metal pinion and 61T spur gear with a 0.8Mod gear pitch.

Tough Composite Chassis

ARRMA's durable moulded composite chassis provides a strong foundation while keeping the truck lightweight and easy to maintain.

The mid-motor configuration helps centralise the mass of the vehicle for predictable handling, while tough suspension components and captured hinge pins are designed to withstand everyday bashing.

Oil-Filled Suspension

The QUAKE uses independent suspension with oil-filled coil-over shock absorbers to soak up bumps, jumps and rough terrain.

Adjustable ride height allows the suspension setup to be altered to suit different surfaces and driving conditions.

With approximately 50mm of ride height, the QUAKE has plenty of clearance for off-road driving.

Huge dBoots Cut Chevron Monster Truck Tyres

The QUAKE gets its aggressive stance from massive 5-inch / 127mm dBoots Cut Chevron monster truck tyres.

The tyres are vented for improved durability and feature foam inserts for additional support. Their aggressive tread provides plenty of traction across dirt, grass and other off-road surfaces.

They're mounted on tough 2.8-inch monster truck wheels with 14mm hexes.

Clipless Monster Truck Body

The aggressive monster truck body features detailed graphics and ARRMA's convenient clipless body retention system.

That means there are no traditional body clips to lose, while the hidden mounting system provides a cleaner overall appearance.

A moulded roll hoop underneath helps support the body during rollovers.

Easy Bottom-Loading Battery Tray

There's no need to remove the body when changing batteries.

The QUAKE's bottom-loading battery tray provides quick access to the battery from underneath the chassis, making battery changes fast and convenient when you're out bashing.

The tray accepts compatible 2S or 3S hardcase LiPo batteries measuring up to 140 x 50 x 35mm.

Wheelie Bar

With 3S brushless power going directly to the rear wheels, wheelies are definitely part of the QUAKE experience.

A tough factory-installed wheelie bar helps keep the truck under control during hard acceleration while also making wheelie action easier and more predictable.

Key Features

• 1/10 scale monster truck
• Product Code: ARA3537T1
• Red colour scheme
• Ready-to-Run
• Rear-wheel drive 2WD
• ARRMA 223S BLX brushless platform
• 2S and 3S LiPo compatible
• 35+ mph on 2S
• 50+ mph / 80+ km/h on 3S
• Spektrum 3660 4000Kv brushless motor
• Spektrum SLT 45A waterproof 2-in-1 ESC/receiver
• Spektrum Dynamic Stability Control – DSC
• Four selectable DSC modes
• Spektrum SLT2 2.4GHz transmitter
• Throttle limiting
• Spektrum S681 metal-geared waterproof digital servo
• ARRMA 40mm motor cooling fan
• Heavy-duty 2WD transmission
• Mid-motor layout
• Durable moulded composite chassis
• Oil-filled coil-over shocks
• Adjustable ride height
• Independent suspension
• Bottom-loading battery tray
• Clipless body mounting
• Moulded body support roll hoop
• dBoots Cut Chevron monster truck tyres
• 127mm / 5-inch tyre diameter
• 2.8-inch monster truck wheels
• 14mm wheel hexes
• Factory-installed wheelie bar
• IC5 battery connector
• 4 × AA transmitter batteries included

Specifications

Brand: ARRMA
Model: QUAKE 223S BLX
Part Number: ARA3537T1
Scale: 1/10
Vehicle Type: Monster Truck
Colour: Red
Drive: 2WD
Motor Position: Mid-Motor
Power: Electric Brushless
Motor: Spektrum 3660 4000Kv Brushless
ESC/Receiver: Spektrum SLT 45A Waterproof 2-in-1 with DSC
Servo: Spektrum S681 Metal-Geared Waterproof Digital
Radio: Spektrum SLT2 2.4GHz
Battery Compatibility: 2S or 3S Hardcase LiPo
Battery Connector: IC5
Maximum Speed: 50+ mph / 80+ km/h
Differentials: 1 Gear Differential
Chassis: Moulded Composite
Shocks: Oil-Filled Coil-Over
Suspension: Independent
Length: 465mm
Width: 345mm
Height: 230mm
Wheelbase: 295mm
Ride Height: 50mm
Weight: Approx. 2.73kg without battery
Tyre Diameter: 127mm / 5"
Wheel Size: 2.8"
Wheel Hex: 14mm
Pinion Gear: 16T Metal
Spur Gear: 61T Composite
Maximum Battery Size: 140 × 50 × 35mm
Completion Level: Ready-to-Run

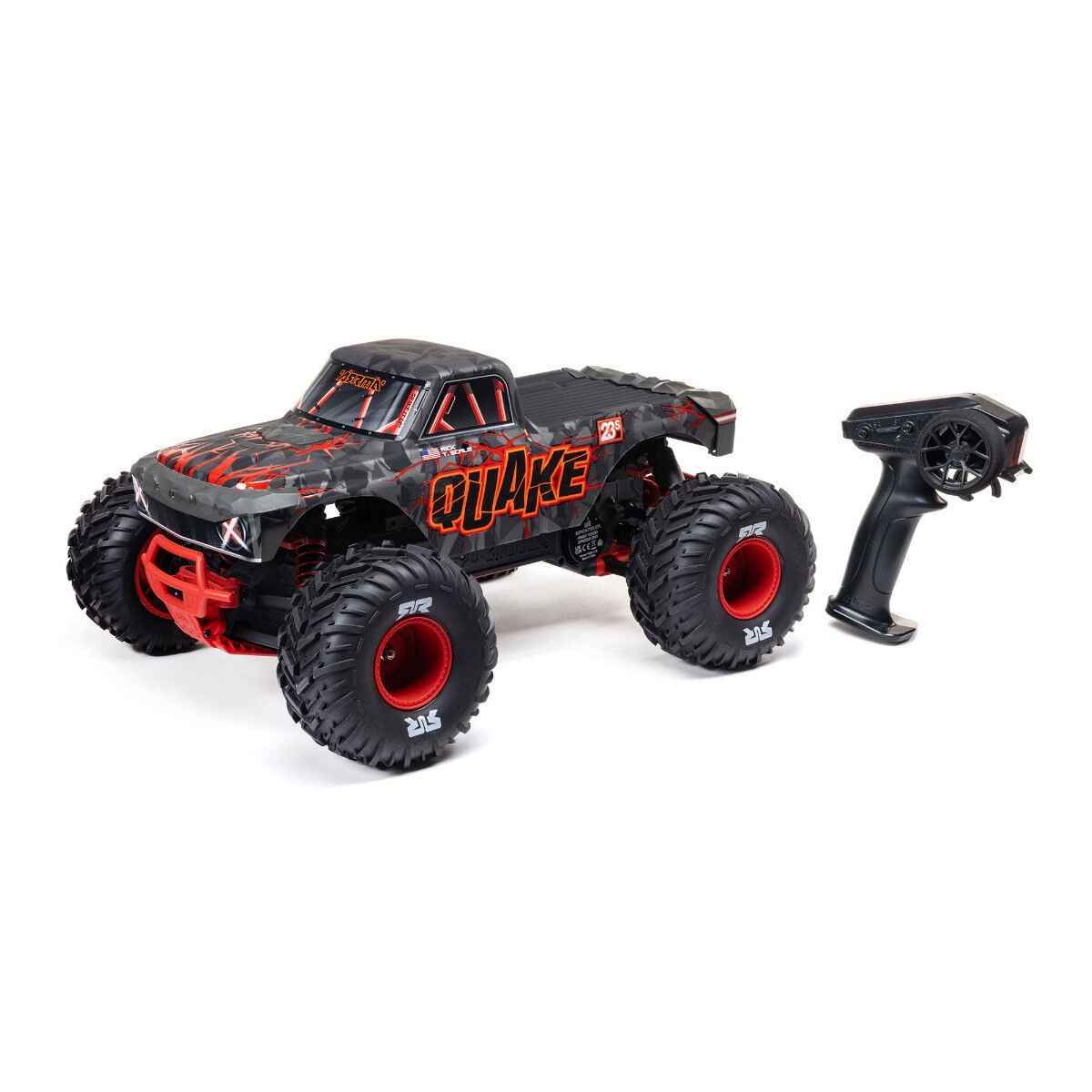

What's Included

• ARRMA QUAKE 223S BLX 1/10 2WD Monster Truck RTR – Red
• Spektrum 3660 4000Kv brushless motor
• Spektrum SLT 45A waterproof 2-in-1 ESC/receiver with DSC
• Spektrum S681 metal-geared waterproof digital steering servo
• Spektrum SLT2 2.4GHz transmitter
• 4 × AA transmitter batteries
• 2mm hex driver
• 2.5mm hex driver
• Wheel wrench/shock tool
• Instruction manual

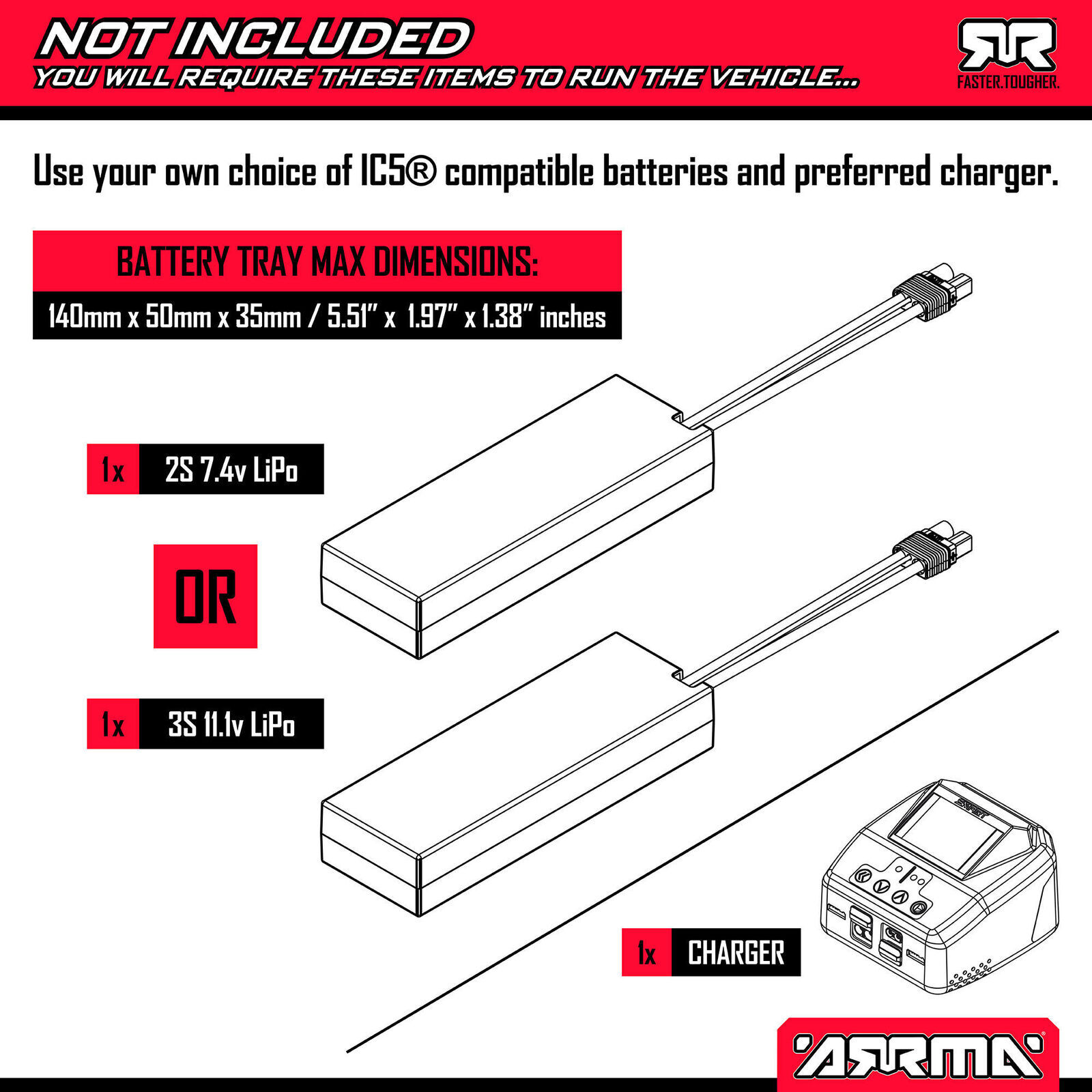

Required to Complete

• 1 × 2S or 3S hardcase LiPo battery with IC5 connector
• Compatible LiPo battery charger
• LiPo charging/safety bag

Maximum battery dimensions are 140 × 50 × 35mm.

A Monster Truck You Can Grow Into

The ARRMA QUAKE 223S BLX is a great option for someone wanting their first serious brushless monster truck without buying something they'll quickly outgrow.

Start on 2S with DSC and reduced throttle for easier handling. As your driving improves, increase the available power and reduce the stability assistance. When you're ready for the full experience, move up to 3S and unleash 50+ mph performance.

With its huge monster truck tyres, tough ARRMA chassis, brushless Spektrum electronics and rear-wheel-drive handling, the QUAKE is built for wheelies, jumps and serious off-road fun.
