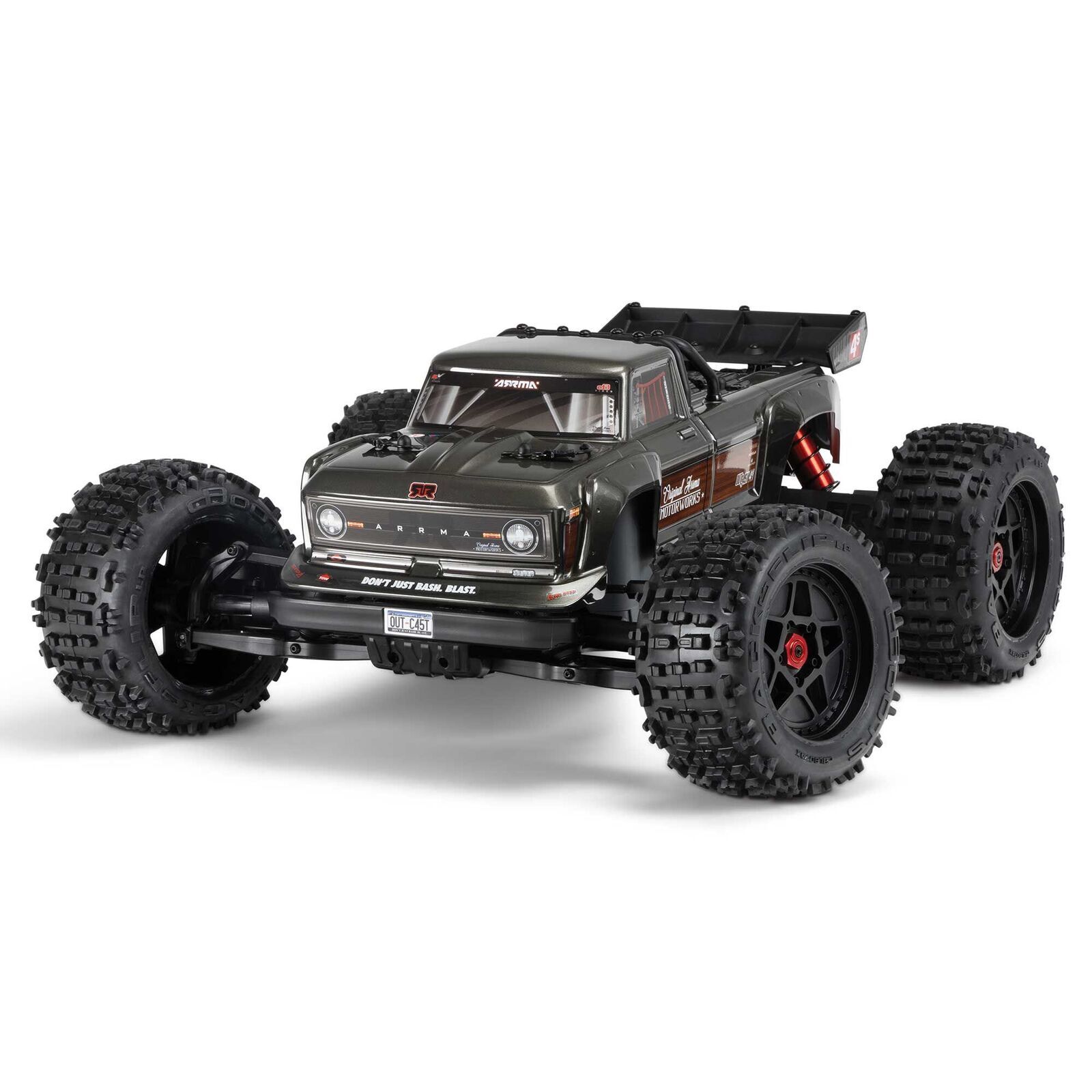

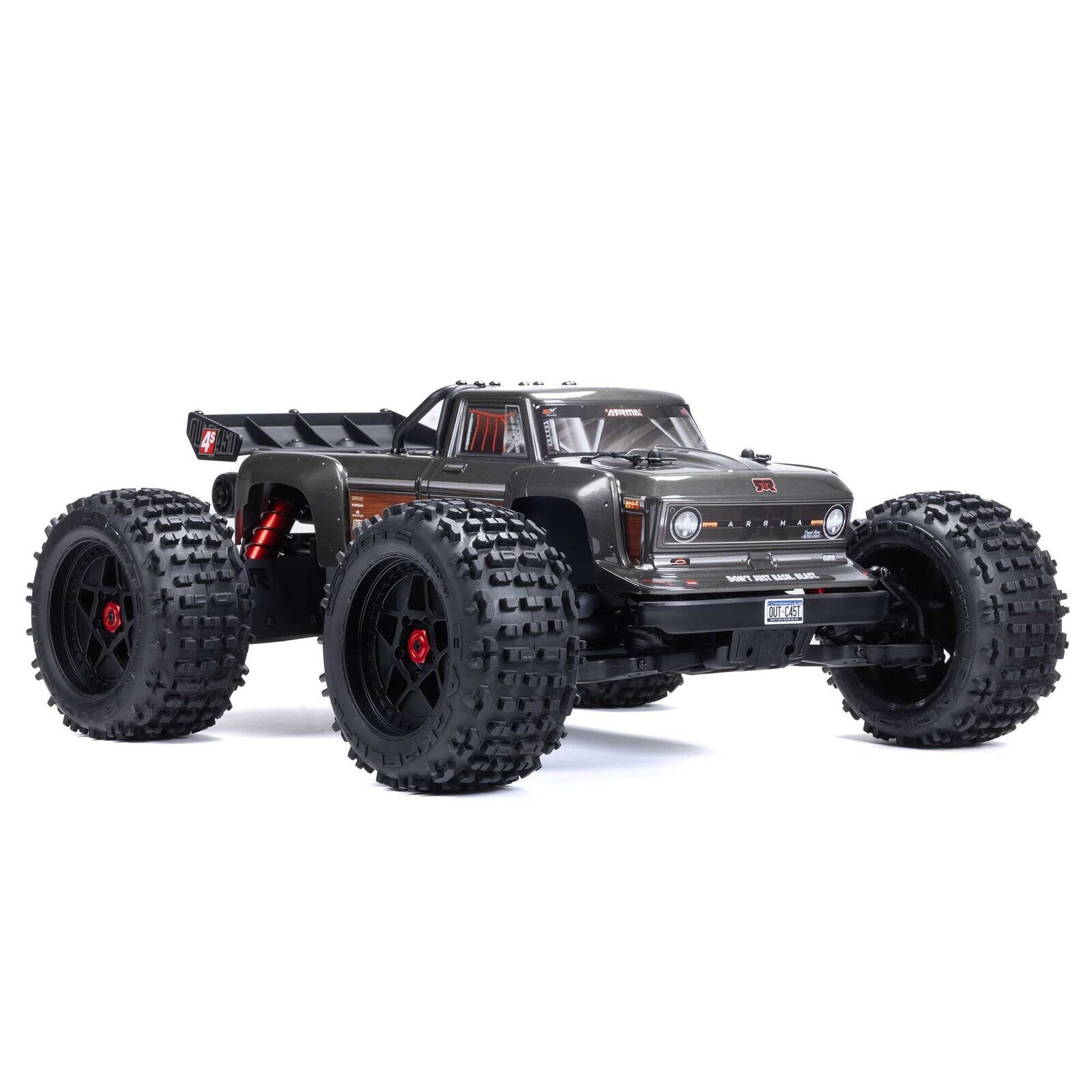

ARRMA OUTCAST 4S BLX V2 1/10 4WD RTR Brushless Stunt Truck

The ARRMA OUTCAST 4S BLX V2 is a high-performance 1/10 scale 4WD brushless stunt truck designed for extreme bashing, wheelies, jumps, backflips and high-speed off-road driving.

The ARA4410V2 features a powerful Spektrum FIRMA 3668 2400Kv brushless motor, Spektrum FIRMA 120A V2 Smart waterproof ESC, updated aluminium-cased centre differential and a reinforced composite chassis.

The short wheelbase and wide stance give the OUTCAST excellent agility and make it particularly well suited to stunt driving and freestyle bashing.

Updated 4S Brushless Power

The OUTCAST 4S V2 is equipped with a Spektrum FIRMA 3668 2400Kv 4-pole brushless motor and Spektrum FIRMA 120A V2 Smart ESC.

The power system is compatible with:

• 2S LiPo batteries
• 3S LiPo batteries
• 4S LiPo batteries

The 120A Smart ESC is waterproof and dustproof and features programmable throttle punch, braking, BEC, reverse speed and motor timing settings.

The ESC uses an IC5 connector and is compatible with EC5 connectors.

High-Speed Stunt Performance

The OUTCAST 4S is built around a short-wheelbase chassis that makes it extremely agile.

The short 313 mm wheelbase allows the truck to rotate easily during jumps and makes wheelies, backflips and freestyle stunts easier to perform.

The wide 450 mm front and rear track provides stability while driving at speed and helps the truck remain planted during aggressive cornering.

Aluminium-Cased Centre Differential

One of the major V2 improvements is the aluminium-cased oil-filled centre differential.

The centre differential helps distribute power between the front and rear axles, improving traction and handling under hard acceleration.

The centre differential is housed within a sealed modular power module that helps protect the gears from dirt and debris.

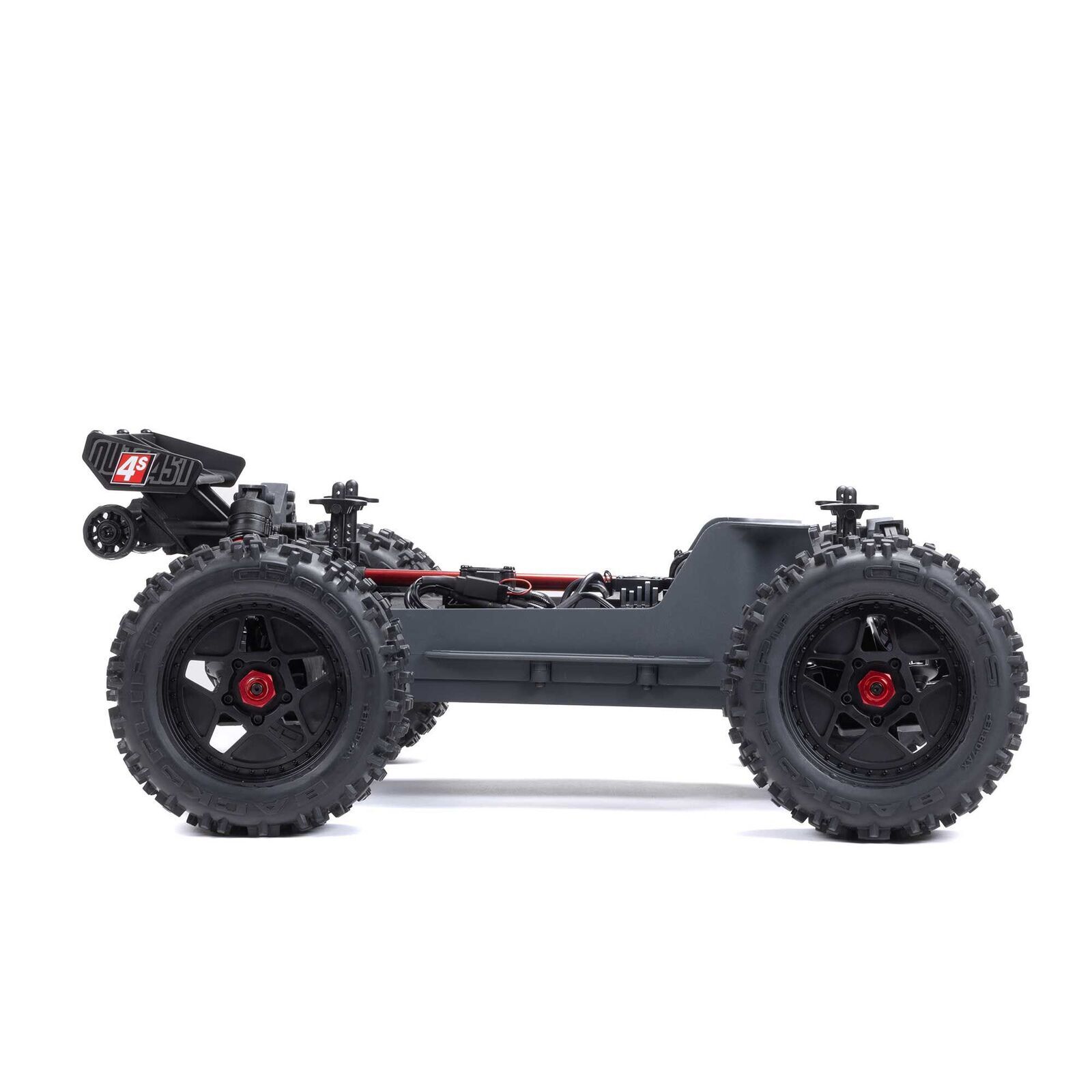

Tough Composite Chassis

The OUTCAST V2 features a redesigned moulded composite chassis specifically developed to accommodate the centre differential module.

Additional hinge-pin bracing increases chassis strength around the suspension mounting points.

The chassis also incorporates a dirt-drain system to help remove debris from the vehicle.

Deep side guards provide additional protection against dirt and debris during off-road driving.

Heavy-Duty Drivetrain

The OUTCAST 4S V2 features a robust 4WD drivetrain designed to handle the high torque generated by the 4S brushless system.

The vehicle uses three oil-filled gear differentials with strong steel internal gears.

EXB-inspired all-metal differential gears and CVD front and rear driveshafts provide increased durability during aggressive bashing.

Steel driveshaft couplings and tough composite sliders help withstand repeated impacts and hard landings.

17 mm Aluminium Wheel Hexes

The V2 features 17 mm aluminium wheel hexes for increased durability.

The large hexes provide a secure connection between the wheels and drivetrain and are designed to handle the high torque produced by the 4S brushless system.

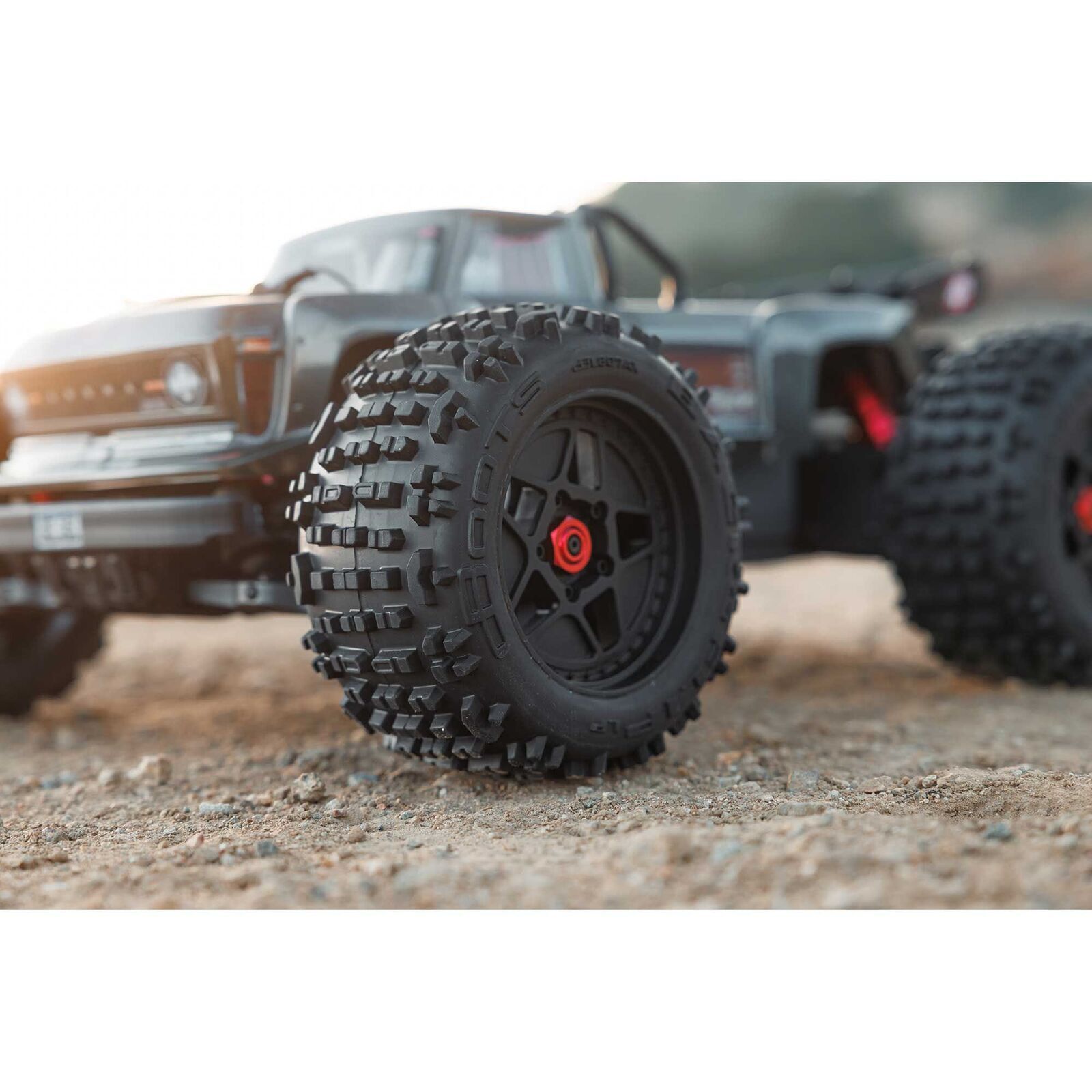

dBoots BACKFLIP LP Tyres

The OUTCAST 4S V2 is equipped with dBoots BACKFLIP LP vented tyres.

The tyres are designed specifically for aggressive stunt driving and provide strong traction on dirt, grass, gravel and other suitable off-road surfaces.

The vented tyre design helps reduce ballooning during high-speed operation.

Aluminium Oil-Filled Shocks

The OUTCAST features large aluminium-body oil-filled shocks.

The long-travel suspension provides plush damping and allows the truck to absorb large jumps and hard landings.

Silicone O-rings help provide reliable sealing and consistent shock performance.

The suspension arms are constructed from tough composite material for increased impact resistance.

Integrated Wheelie Bar

An integrated wheelie bar makes it easy to lift the front wheels during acceleration.

The wheelie bar is particularly useful for stunt driving and helps the driver control prolonged wheelies.

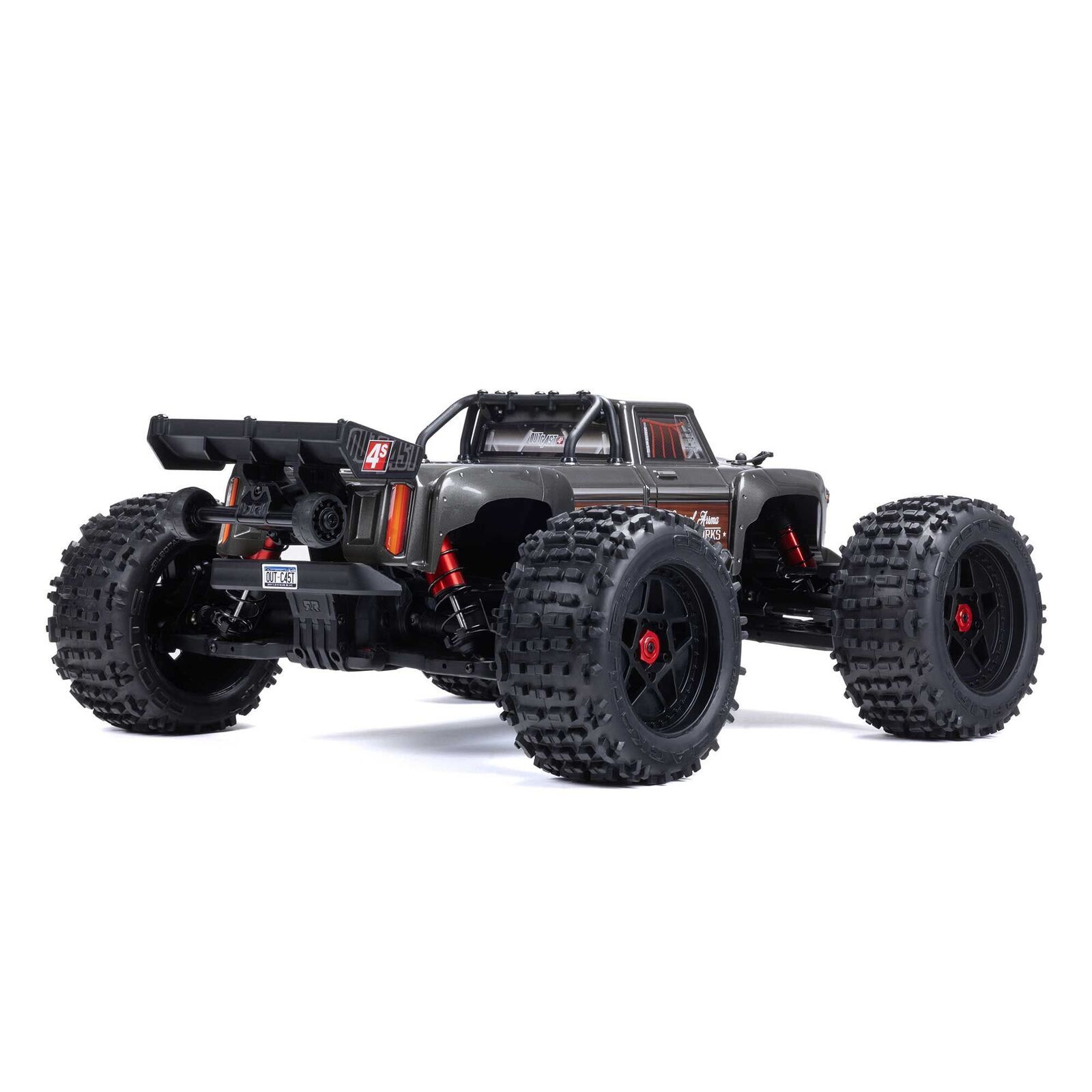

Tough Composite Wing

The OUTCAST features a strong composite rear wing and wing mount.

The wing assembly is designed to withstand repeated impacts during jumps and stunt driving.

Replaceable steel skid components provide additional protection.

Spektrum SLT3 Radio System

The OUTCAST V2 includes a Spektrum SLT3 3-channel 2.4GHz transmitter and Spektrum SR315 dual-protocol receiver.

The transmitter features adjustable throttle limiting, allowing drivers to select reduced power settings before progressing to full performance.

The receiver supports both SLT and DSMR protocols.

High-Torque Spektrum S662 Servo

The OUTCAST V2 is fitted with a Spektrum S662 metal-geared digital steering servo.

The servo features:

• 17 kg / 236 oz-in torque
• 0.15 second speed at 7.4V
• Steel gears
• 25T output spline
• Aluminium centre case
• Waterproof design

The increased steering torque provides improved control over the large 1/10 scale stunt truck.

Key Features

• 1/10 scale ARRMA OUTCAST 4S BLX V2
• ARA4410V2
• 4WD brushless stunt truck
• Ready-to-Run
• Spektrum FIRMA 3668 2400Kv 4-pole brushless motor
• Spektrum FIRMA 120A V2 Smart waterproof ESC
• 2S, 3S and 4S LiPo compatible
• Updated aluminium-cased centre differential
• Three oil-filled gear differentials
• EXB-inspired all-metal differential gears
• EXB CVD front and rear driveshafts
• Reinforced composite chassis
• Additional hinge-pin bracing
• Improved dirt protection
• Deep side guards
• Wishbone dirt guards
• 17 mm aluminium wheel hexes
• dBoots BACKFLIP LP vented tyres
• Aluminium oil-filled shocks
• Long-travel suspension
• Integrated wheelie bar
• Tough composite rear wing
• Front and rear skid plates
• Spektrum S662 metal-geared steering servo
• Spektrum SLT3 transmitter
• Spektrum SR315 dual-protocol receiver
• IC5 connector
• Waterproof electronics

Specifications

• Brand: ARRMA
• Model: OUTCAST 4S BLX V2
• Part Number: ARA4410V2
• Scale: 1/10
• Vehicle Type: Stunt Truck
• Drive: 4WD
• Power Type: Electric Brushless
• Completion Level: Ready-to-Run
• Power Level: 4S
• Motor: Spektrum FIRMA 3668 2400Kv
• Motor Type: 4-Pole Brushless
• ESC: Spektrum FIRMA 120A V2 Smart
• Radio: Spektrum SLT3 3-Channel 2.4GHz
• Receiver: Spektrum SR315 Dual Protocol
• Steering Servo: Spektrum S662 Digital Metal Gear
• Servo Torque: 17 kg / 236 oz-in @ 7.4V
• Servo Speed: 0.15 sec / 60°
• Differentials: 3 Oil-Filled Gear Differentials
• Centre Differential: Aluminium-Cased
• Drivetrain: 4WD
• Chassis: Moulded Composite
• Suspension: Independent
• Shock Type: Aluminium Body Oil-Filled
• Front Width: 450 mm
• Rear Width: 450 mm
• Length: 515 mm
• Wheelbase: 313 mm
• Height: 225 mm
• Ride Height: 63 mm
• Weight: 4.17 kg without battery
• Wheel Hex: 17 mm
• Tyres: dBoots BACKFLIP LP
• Wheel Type: Monster Truck
• Battery Compatibility: 2S, 3S or 4S LiPo
• Battery Type: Hardcase only
• Maximum Battery Dimensions: 165 × 51 × 48 mm
• Minimum Battery: 5000mAh 35C
• Connector: IC5
• Water Resistant: Yes
• Surface: Off-Road

ARRMA lists the OUTCAST V2 at 515 mm long, 450 mm wide, 225 mm high, with a 313 mm wheelbase and 4.17 kg weight without battery. The recommended battery is a hardcase LiPo within 165 × 51 × 48 mm, with a minimum specification of 5000mAh 35C.

Battery & Charger Required

The OUTCAST 4S V2 is supplied Ready-to-Run, but battery and charger are sold separately.

Compatible battery configurations are:

• 1 × 3S LiPo
• 1 × 4S LiPo
• 2 × 2S LiPo

ARRMA recommends a 5000mAh 35C minimum hardcase LiPo.

The battery must fit within the maximum dimensions of approximately 165 × 51 × 48 mm.

A compatible LiPo charger and LiPo charging bag are also required.

What's Included

• ARRMA OUTCAST 4S BLX V2 1/10 4WD RTR Stunt Truck
• Spektrum FIRMA 3668 2400Kv Brushless Motor
• Spektrum FIRMA 120A V2 Smart Waterproof ESC
• Spektrum S662 Metal-Geared Waterproof Steering Servo
• Spektrum SLT3 3-Channel 2.4GHz Transmitter
• Spektrum SR315 Dual-Protocol Receiver
• dBoots BACKFLIP LP Tyres
• Factory-finished body
• Rear wing
• Wheelie bar
• IC5 loop connector
• Multi-tool and hex wrenches
• Instruction manual

Built for Stunts and Extreme Bashing

The ARRMA OUTCAST 4S BLX V2 is designed for drivers who want a highly capable stunt truck with the power and durability to handle aggressive RC driving.

Its short wheelbase makes the OUTCAST particularly easy to rotate in the air, while the wide stance provides stability on the ground.

The combination of the 2400Kv brushless motor, 120A Smart ESC, aluminium centre differential, EXB-inspired drivetrain, aluminium shocks, BACKFLIP LP tyres and integrated wheelie bar makes the OUTCAST 4S V2 an excellent choice for freestyle bashing, wheelies, jumps and backflips.

Please note: This is a high-performance brushless RC vehicle. Always operate in a large, open and suitable area away from people, traffic and obstacles. Follow all manufacturer instructions regarding LiPo batteries, charging and safe operation.
