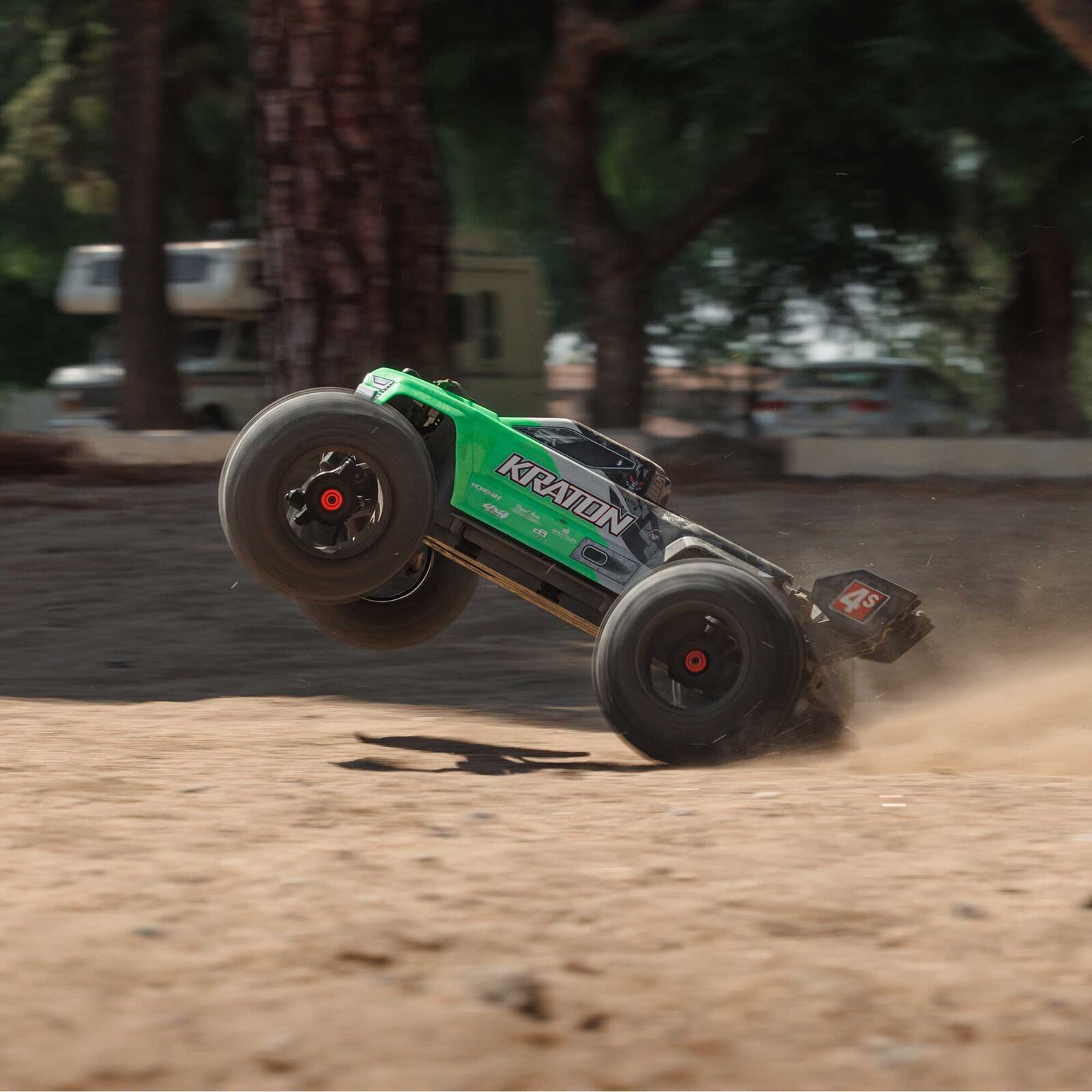

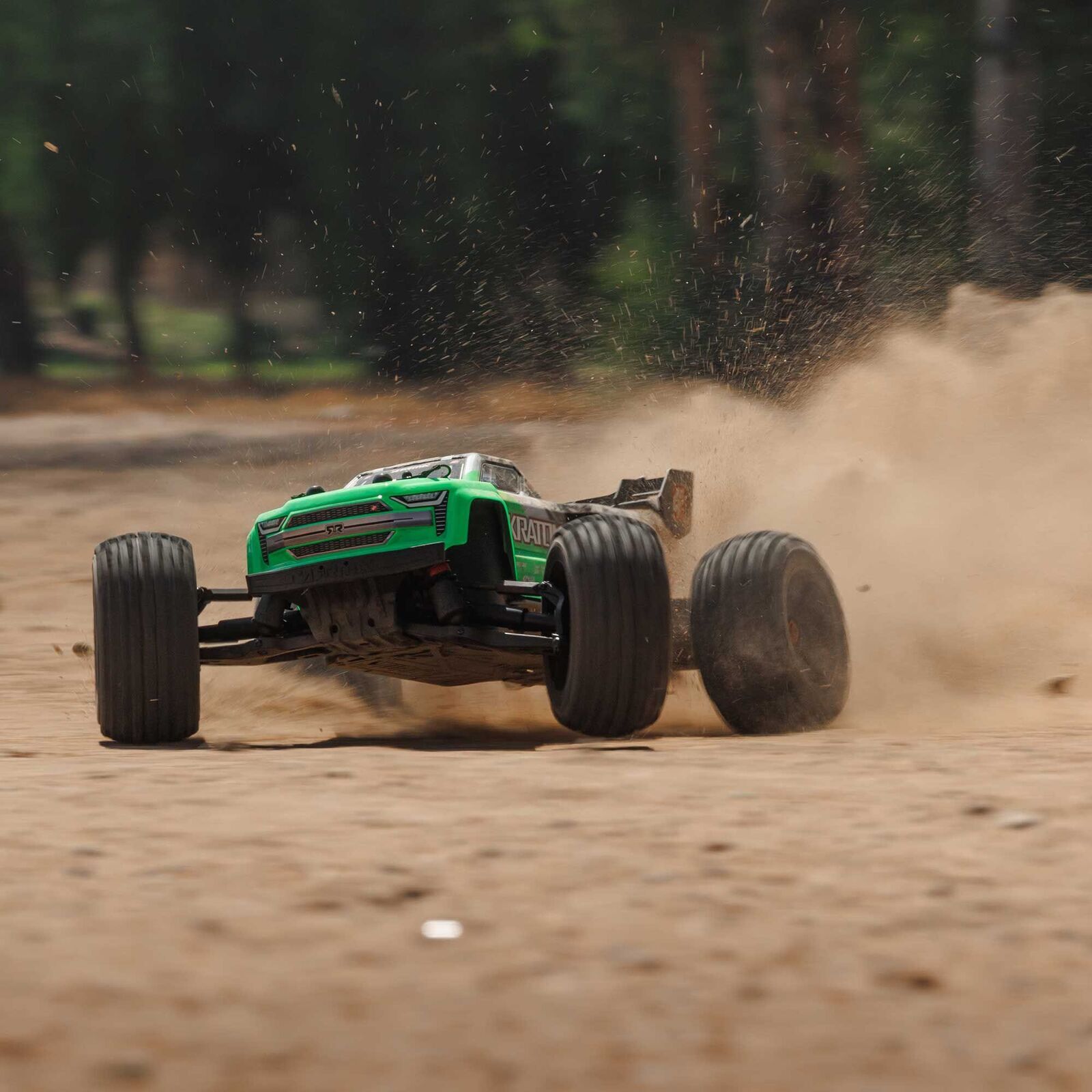

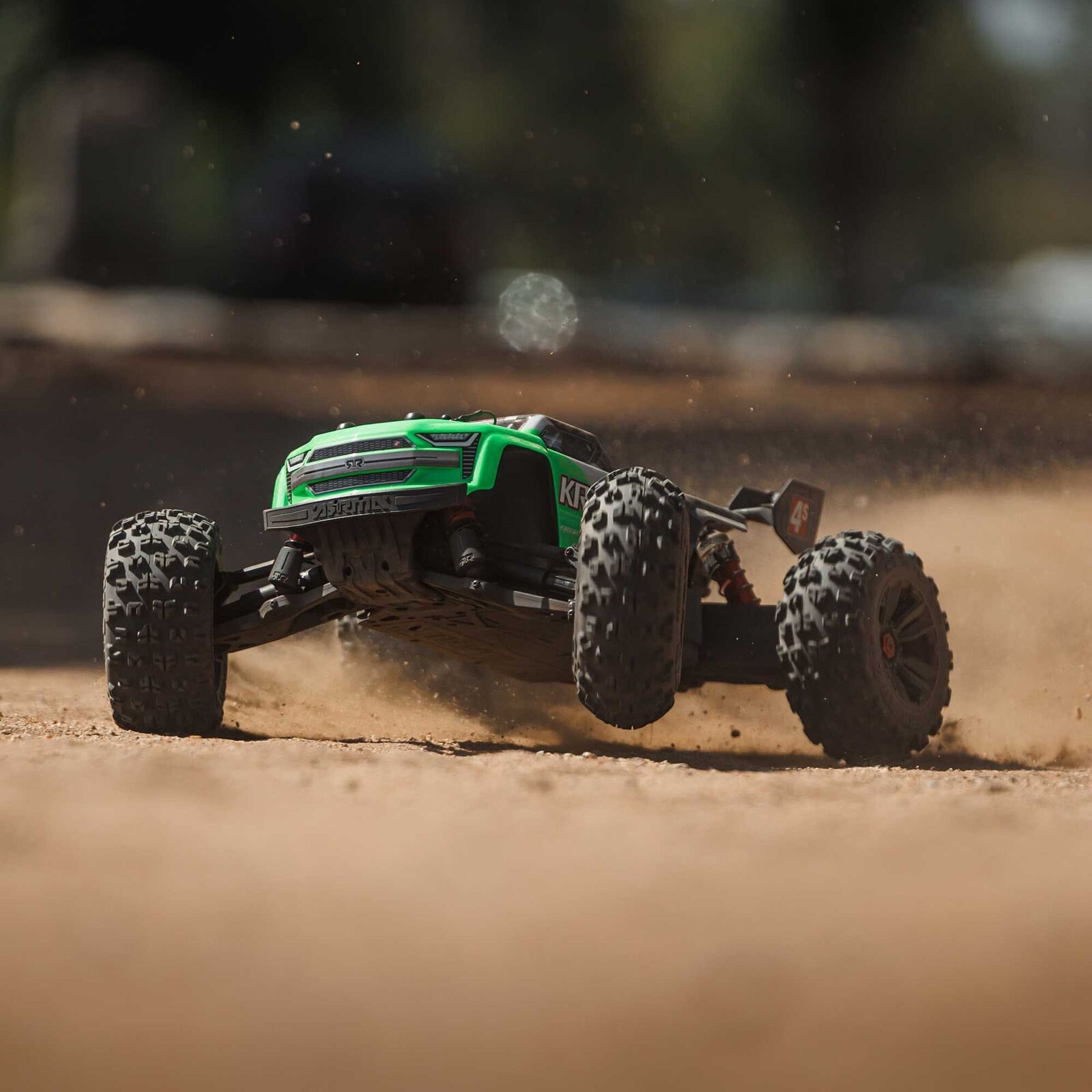

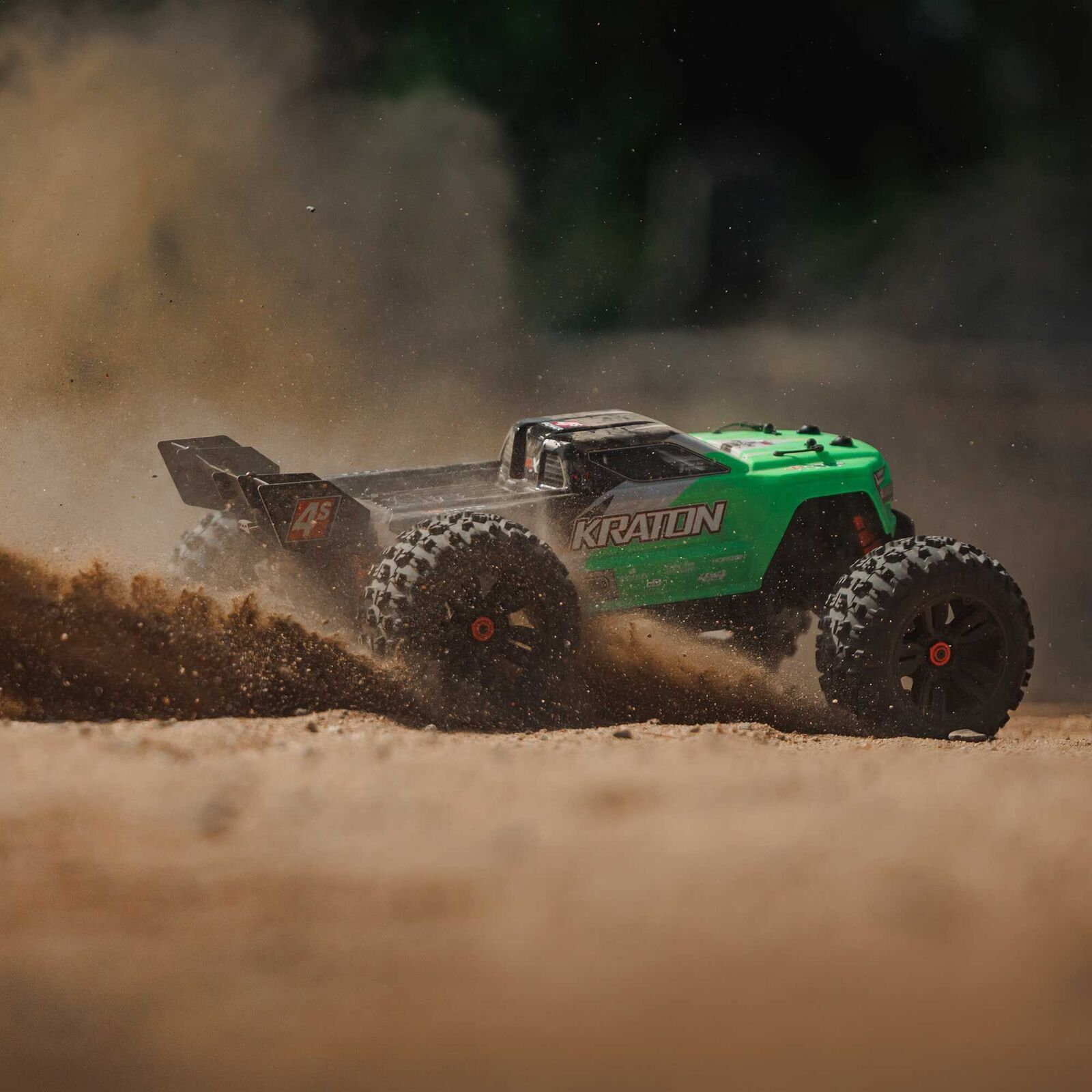

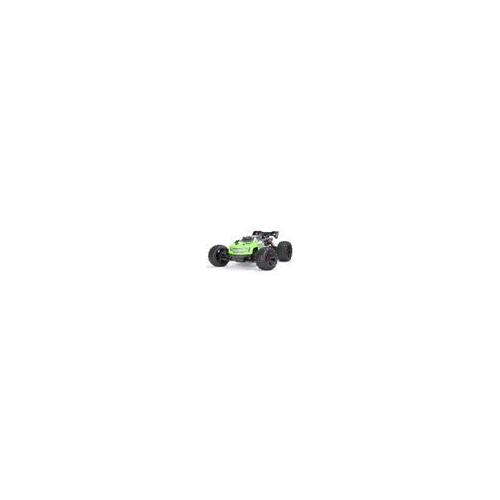

ARRMA KRATON 4S BLX V2 1/10 4WD RTR Brushless Speed Truck

The ARRMA KRATON 4S BLX V2 is a powerful 1/10 scale 4WD brushless speed monster truck designed for high-speed off-road driving, big jumps, wheelies and extreme RC bashing.

The ARA4408V2 combines ARRMA's proven KRATON platform with an updated Spektrum brushless power system, aluminium-cased centre differential, reinforced chassis and improved dirt protection.

Powered by a Spektrum FIRMA 3668 2400Kv brushless motor and Spektrum FIRMA 120A V2 Smart waterproof ESC, the KRATON 4S delivers impressive acceleration and can reach 55+ mph / 88+ km/h under suitable conditions.

Updated 4S Brushless Power

The KRATON 4S V2 is equipped with a Spektrum FIRMA 3668 2400Kv brushless motor and Spektrum FIRMA 120A V2 Smart waterproof ESC.

The system is designed for 3S and 4S LiPo batteries, giving drivers the option of strong 3S performance or the full power of 4S.

The Smart ESC provides telemetry compatibility with compatible Spektrum Smart equipment and offers programmable performance settings.

55+ MPH Performance

With a suitable 4S LiPo battery, the KRATON 4S V2 can achieve 55+ mph / 88+ km/h in optimum conditions.

The long-wheelbase chassis, 4WD drivetrain and large dBoots tyres provide excellent traction and stability for high-speed driving across dirt, grass, gravel and other suitable surfaces.

Aluminium-Cased Centre Differential

One of the major V2 improvements is the aluminium-cased centre differential.

The centre differential helps distribute power between the front and rear axles, improving traction and handling during hard acceleration.

This updated centre diff module is designed to provide smoother power delivery and improved grip compared with the earlier KRATON 4S configuration.

Reinforced Chassis

The V2 features an updated moulded composite chassis designed around the new centre differential module.

The chassis incorporates improved hinge-pin bracing, additional protection around the drivetrain and a redesigned dirt-drain system.

Updated side guards and dirt protection help prevent debris from entering the chassis during off-road driving.

Heavy-Duty 4WD Drivetrain

The KRATON uses a robust 4WD drivetrain designed to handle the torque generated by the 4S brushless system.

The vehicle features front and rear gear differentials along with the centre differential.

The drivetrain uses a 0.8 MOD gear pitch, providing a good balance of strength, efficiency and durability.

The final drive ratio is 12.48:1.

Independent Suspension

The KRATON 4S uses fully independent suspension with large oil-filled coil-over shocks.

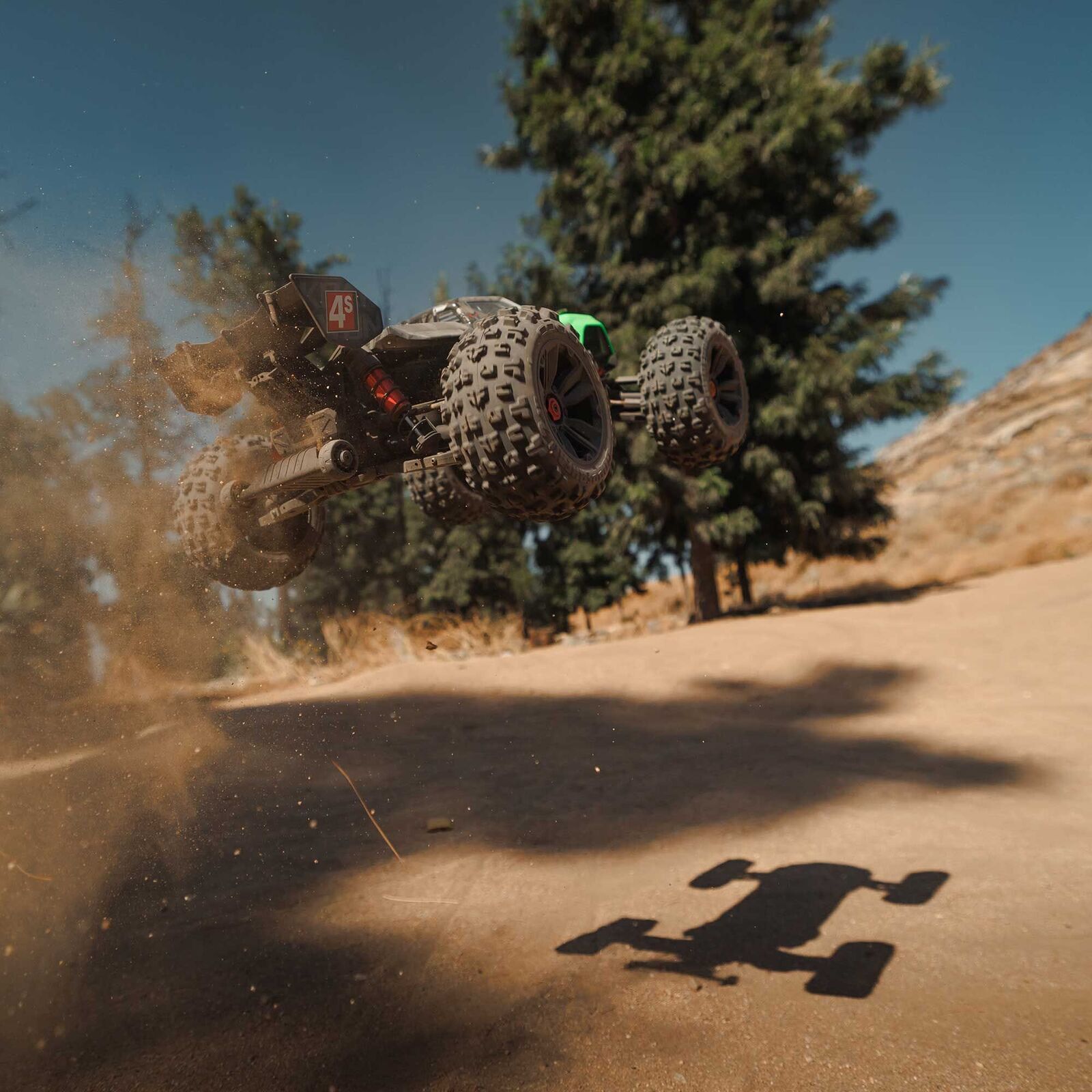

The suspension provides the travel needed for rough terrain and big jumps while helping maintain traction during high-speed driving.

The aluminium shock bodies provide consistent damping and allow the suspension to be tuned for different surfaces and driving styles.

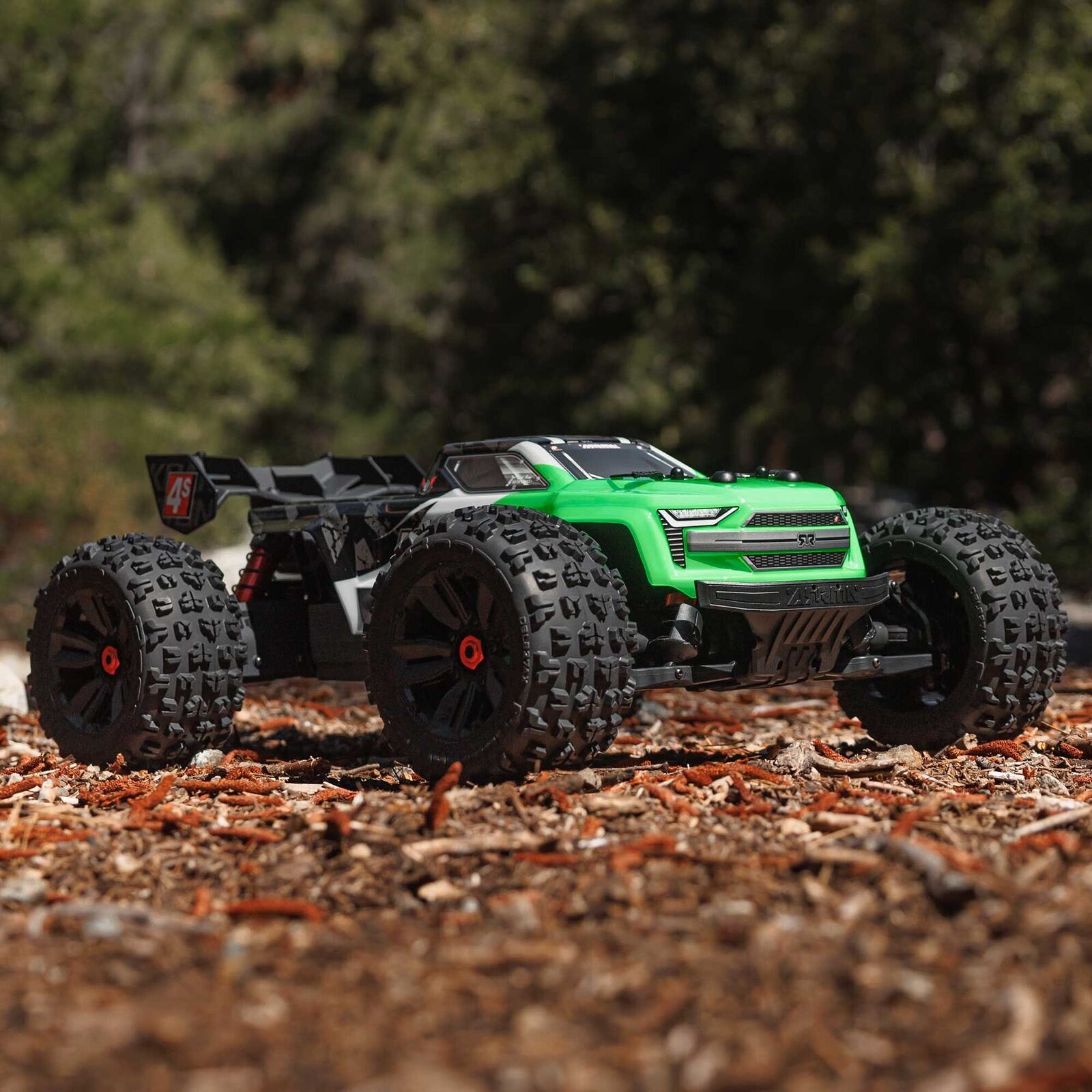

dBoots Off-Road Tyres

The KRATON 4S is equipped with dBoots multi-terrain tyres designed for aggressive off-road driving.

The tyres provide traction across dirt, grass, gravel and other suitable surfaces.

The wheels use durable 17 mm hexes for a secure connection to the drivetrain.

Spektrum SLT3 Radio System

The KRATON V2 includes a Spektrum SLT3 3-channel 2.4GHz transmitter and Spektrum SR315 dual-protocol receiver.

The SLT3 transmitter includes adjustable throttle limiting, allowing the driver to select 50%, 75% or 100% throttle.

This makes the KRATON suitable for drivers who want to gradually increase their driving speed and confidence.

The SR315 supports both SLT and DSMR protocols.

High-Torque Spektrum S662 Servo

The KRATON 4S V2 is equipped with a Spektrum S662 metal-geared waterproof digital steering servo.

The updated servo provides increased torque and durability for the large 1/10 scale truck.

Its aluminium centre case and metal gear train are designed to withstand the loads generated by high-speed off-road driving.

Key Features

• 1/10 scale ARRMA KRATON 4S BLX V2
• ARA4408V2
• 4WD brushless speed monster truck
• Ready-to-Run
• Spektrum FIRMA 3668 2400Kv brushless motor
• Spektrum FIRMA 120A V2 Smart waterproof ESC
• 3S and 4S LiPo compatible
• 55+ mph / 88+ km/h potential top speed
• Aluminium-cased centre differential
• Updated centre diff power module
• Reinforced hinge-pin bracing
• Updated moulded composite chassis
• Improved dirt protection
• Updated side guards
• Front and rear gear differentials
• 0.8 MOD gear pitch
• Independent suspension
• Aluminium-body oil-filled coil-over shocks
• dBoots multi-terrain tyres
• 17 mm wheel hexes
• Spektrum SLT3 3-channel transmitter
• Spektrum SR315 dual-protocol receiver
• Spektrum S662 metal-geared waterproof steering servo
• IC5 / EC5 compatible
• Waterproof electronics

Specifications

• Brand: ARRMA
• Model: KRATON 4S BLX V2
• Part Number: ARA4408V2
• Scale: 1/10
• Vehicle Type: Speed Monster Truck
• Drive: 4WD
• Power Type: Electric Brushless
• Completion Level: Ready-to-Run
• Power System: 4S
• Motor: Spektrum FIRMA 3668 2400Kv
• Motor Type: Brushless
• ESC: Spektrum FIRMA 120A V2 Smart Waterproof
• Radio: Spektrum SLT3 3-Channel 2.4GHz
• Receiver: Spektrum SR315 Dual Protocol
• Steering Servo: Spektrum S662 Metal-Geared Digital
• Differentials: Front, Centre and Rear
• Centre Differential: Aluminium-Cased
• Gear Pitch: 0.8 MOD
• Pinion Gear: 13T
• Spur Gear: 57T
• Internal Gear Ratio: 2.85
• Final Drive Ratio: 12.48
• Chassis: Moulded Composite
• Suspension: Independent
• Shock Type: Aluminium Body, Oil-Filled Coil-Over
• Front Track: 450 mm
• Rear Track: 450 mm
• Length: 547 mm
• Width: 450 mm
• Height: 206 mm
• Wheelbase: 355 mm
• Weight: Approximately 4.2 kg
• Top Speed: 55+ mph / 88+ km/h
• Battery Compatibility: 3S or 4S LiPo
• Maximum Battery Dimensions: 156 × 51 × 48 mm
• Wheel Hex: 17 mm
• Connector: IC5 / EC5 Compatible
• Water Resistant: Yes
• Surface: Off-Road

ARRMA's current specifications confirm the 547 mm length, 450 mm width, 206 mm height, 355 mm wheelbase and approximately 4.2 kg weight, along with 3S/4S compatibility and the 55+ mph top speed.

Battery & Charger Required

The KRATON 4S V2 is supplied Ready-to-Run, but battery and charger are sold separately.

Compatible batteries include:

• 1 × 3S LiPo battery
• 1 × 4S LiPo battery

The battery should fit within the maximum available space of approximately 156 × 51 × 48 mm.

The vehicle uses an IC5 connector and is compatible with EC5 connectors.

For maximum performance, a suitable high-discharge 4S LiPo is recommended.

What's Included

• ARRMA KRATON 4S BLX V2 1/10 4WD RTR Speed Truck
• Spektrum FIRMA 3668 2400Kv Brushless Motor
• Spektrum FIRMA 120A V2 Smart Waterproof ESC
• Spektrum S662 Metal-Geared Waterproof Steering Servo
• Spektrum SLT3 3-Channel 2.4GHz Transmitter
• Spektrum SR315 Dual-Protocol Receiver
• dBoots Multi-Terrain Tyres

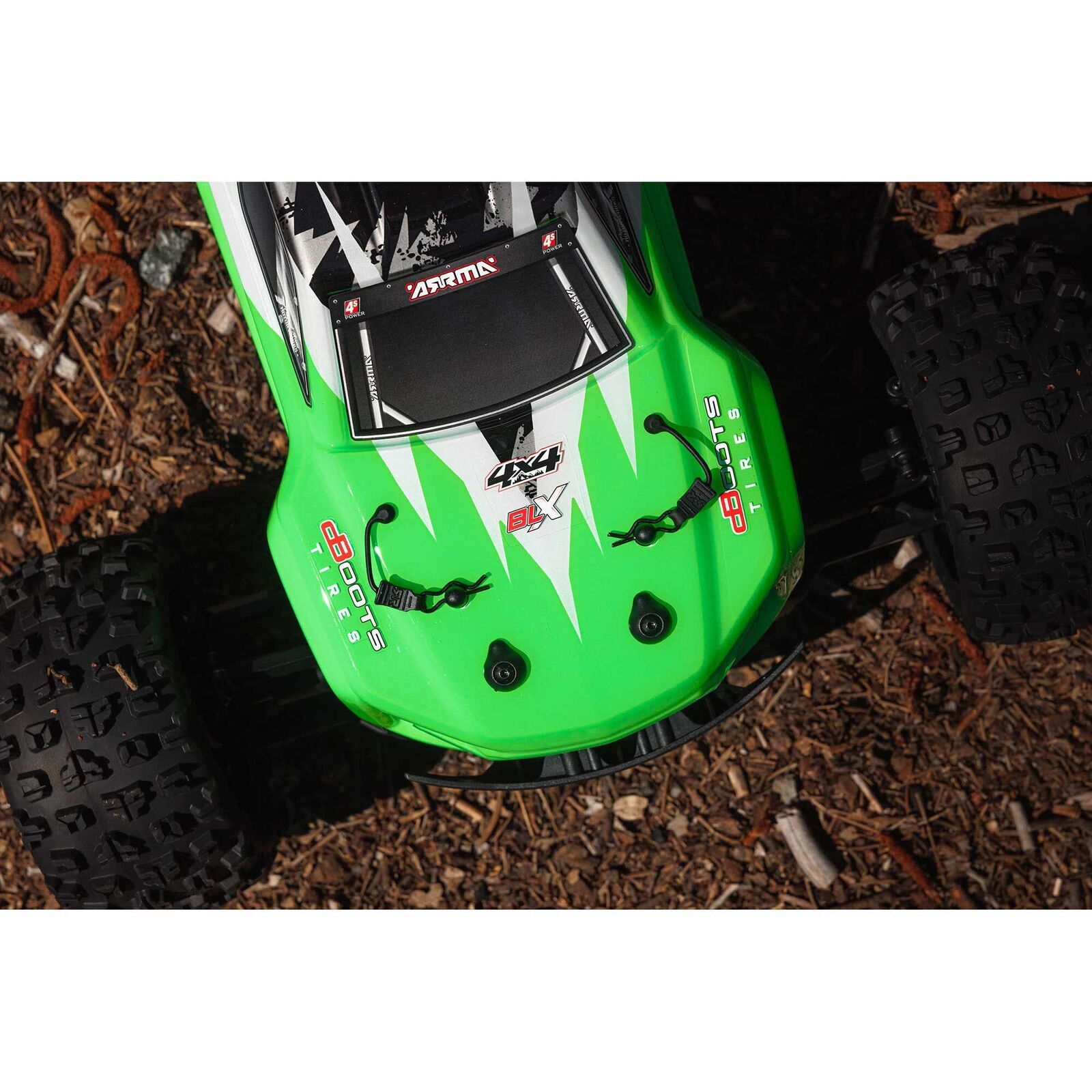

• Factory-finished body
• Instruction manual
• AA transmitter batteries

Built for High-Speed Bashing

The ARRMA KRATON 4S BLX V2 delivers the perfect combination of size, power and durability for drivers looking for a serious 4S RC truck.

The updated centre differential improves traction and power delivery, while the reinforced chassis, improved dirt protection, durable drivetrain and powerful Spektrum brushless system make the KRATON well suited to high-speed bashing and big jumps.

Run it on 3S for strong, controllable performance or step up to 4S for the full 55+ mph / 88+ km/h experience.

Please note: This is a high-performance brushless RC vehicle. Always operate in a large, open and suitable area away from people, traffic and obstacles. Follow all manufacturer instructions regarding LiPo batteries, charging and safe operation.
