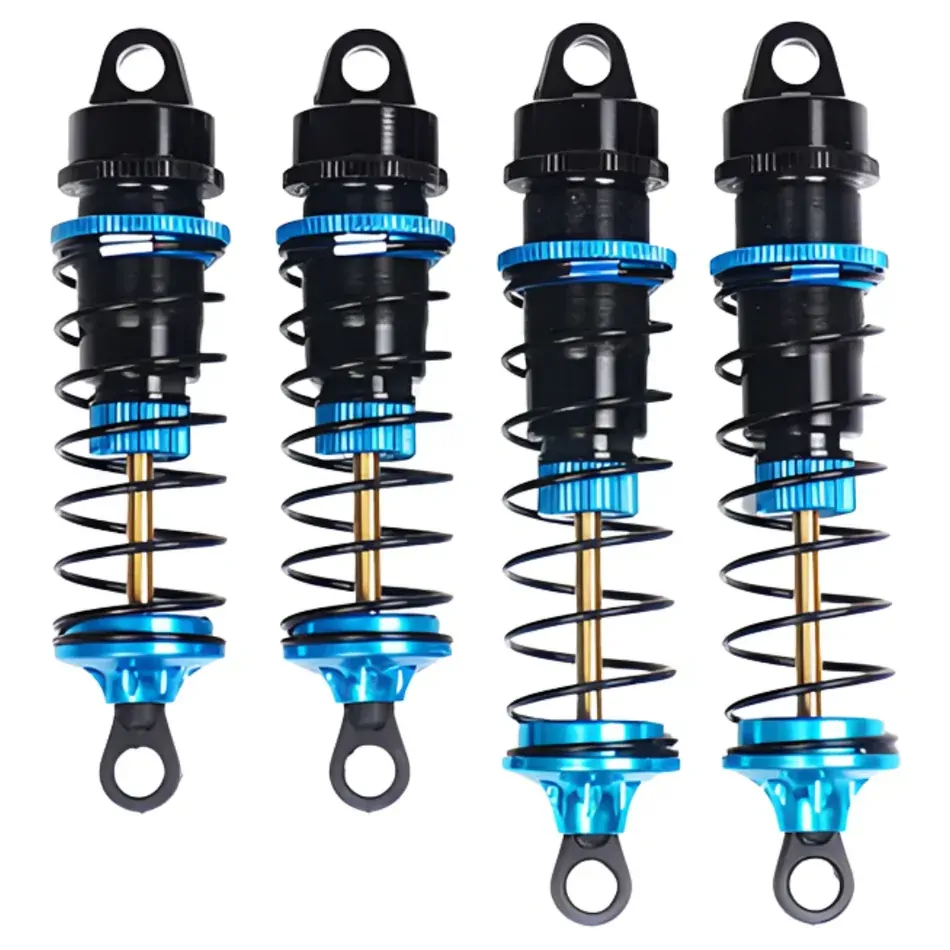

Koswork 12mm Blue Big Bore Buggy Shock Set – Front & Rear – KOS04901TA

The Koswork KOS04901TA 12mm Big Bore Shock Set is a high-quality suspension upgrade designed for a wide range of classic and modern 1/10 scale off-road buggies from Kyosho, Tamiya and Yokomo.

Finished in an attractive blue aluminium colour scheme, the set includes two front and two rear shocks and combines 12mm big-bore pistons, polished aluminium shock bodies and Ti-Nitride coated shock shafts to provide smoother suspension action, improved bump handling and more consistent performance.

12mm Big Bore Design

The larger 12mm piston design provides increased oil volume and more consistent damping compared with many traditional vintage buggy shocks.

Koswork uses precision CNC-machined self-lubricating pistons, helping minimise friction as the suspension moves through its travel. This can provide more predictable damping over rough surfaces and help maintain tyre contact and traction.

Ti-Nitride Coated Shock Shafts

Each shock features a Ti-Nitride coated shaft, selected for smooth operation, durability and resistance to wear.

The shock bodies are internally polished to further reduce friction, giving the suspension a smooth and consistent feel throughout the shock stroke.

Aluminium Construction

Koswork has used aluminium extensively throughout the shock assemblies.

The shock bodies, caps, adjustment collars, bottom caps and spring retainers are all designed to provide excellent durability while maintaining the premium appearance expected from a high-quality suspension upgrade.

Knurled sections on the adjustment collars make ride-height changes easier when setting the buggy up at the track.

Front & Rear Specific Setup

The front and rear shocks use different dimensions and piston configurations to suit their respective positions.

The front shocks provide 24mm of stroke and measure 84.2mm overall, while the longer rear shocks provide 28.8mm of stroke and measure 99mm overall.

Front shocks use 2 x 1.5mm piston holes, while the rear shocks use 2 x 1.6mm piston holes.

Supplied with Front & Rear Springs

The complete set includes springs selected specifically for the front and rear shocks.

The front uses 44mm 8.5-turn white springs, while the rear uses longer 61mm 9-turn blue springs. Optional Koswork springs and pistons are also available separately, allowing racers to fine-tune the damping and spring rate for different surfaces and track conditions.

Wide Buggy Compatibility

KOS04901TA has been designed as a direct replacement or performance upgrade for numerous classic Kyosho and Tamiya buggies.

Koswork specifically lists compatibility with models including the Kyosho Optima, Turbo Optima, Optima Mid series, Javelin, Ultima and Ultima JJ, together with the Tamiya BB-01 / BBX and other suitable Tamiya buggy platforms.

The shocks can also be adapted to the Yokomo YZ-870C and Team Associated YZ-10, although Koswork notes that higher shock towers are required for these applications.

For anyone restoring, racing or upgrading a classic 1/10 buggy, the Koswork 12mm Big Bore Shock Set provides a great combination of modern suspension performance and high-quality construction without losing the character of a vintage R/C platform.

Features:

• Complete front and rear big-bore shock set
• Includes 2 front and 2 rear shocks
• Blue aluminium finish
• 12mm big-bore piston design
• CNC-machined self-lubricating pistons
• Internally polished aluminium shock bodies
• Ti-Nitride coated shock shafts
• Aluminium shock caps
• Aluminium adjustment collars
• Knurled collars for easier adjustment
• Aluminium bottom caps
• Aluminium spring retainers
• Front and rear specific piston configurations
• Front and rear springs included
• Optional springs and pistons available separately
• Designed for smoother suspension movement
• Improved bump handling
• Improved traction and consistency
• Direct upgrade for numerous vintage 1/10 buggies
• Made in Taiwan

Specifications:

• Brand: Koswork
• Product Code: KOS04901TA
• Type: Big Bore Buggy Shock Set
• Colour: Blue
• Shock Diameter: 12mm
• Quantity: 4 Shocks
• Front Quantity: 2
• Rear Quantity: 2
• Front Overall Length: 84.2mm
• Rear Overall Length: 99mm
• Front Stroke: 24mm
• Rear Stroke: 28.8mm
• Front Piston: 2 x 1.5mm
• Rear Piston: 2 x 1.6mm
• Front Spring: 44mm / 8.5T / White
• Rear Spring: 61mm / 9T / Blue
• Shock Cap Mounting Hole: 5mm
• Shock Ball End: Designed for 5.8mm balls
• Shock Shafts: Ti-Nitride Coated
• Shock Bodies: Aluminium
• Country of Manufacture: Taiwan

Compatible With:

• Kyosho Optima
• Kyosho Turbo Optima
• Kyosho Optima Mid Series
• Kyosho Javelin
• Kyosho Ultima
• Kyosho Ultima JJ
• Other compatible Kyosho buggies
• Tamiya BB-01 / BBX
• Other compatible Tamiya buggies
• Yokomo YZ-870C*
• Team Associated YZ-10*

What's Included:

• 2 x Koswork 12mm Front Big Bore Shocks
• 2 x Koswork 12mm Rear Big Bore Shocks
• Front and rear shock springs

Please Note:

*Installation on the Yokomo YZ-870C and Team Associated YZ-10 requires higher shock towers. Compatibility and mounting requirements should be checked for your specific vehicle before ordering. Vehicles and other accessories shown in product images are not included.
