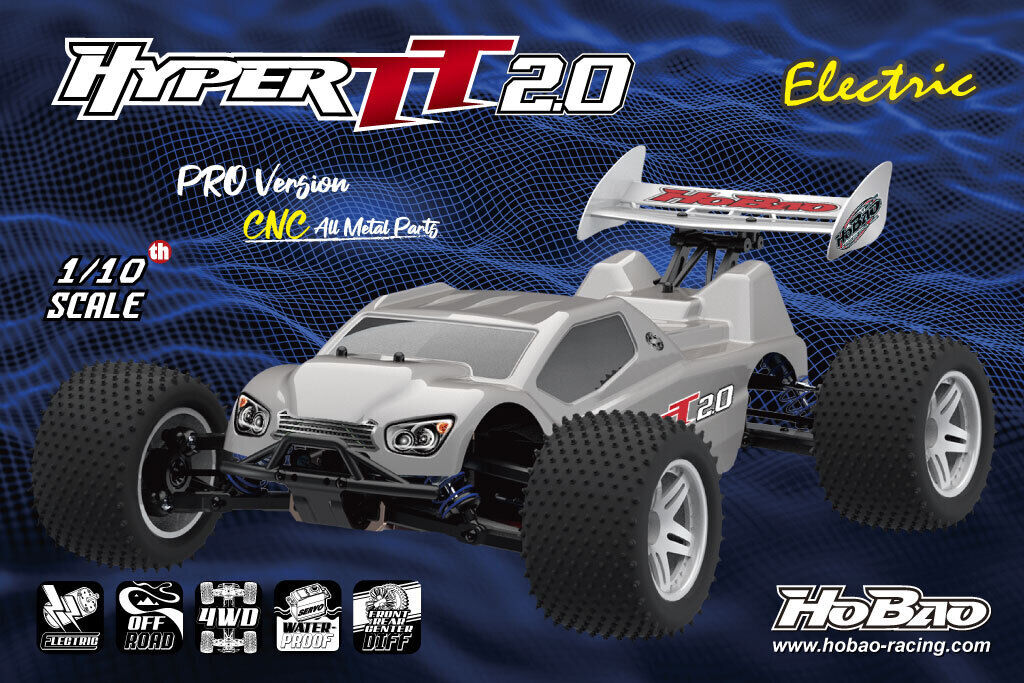

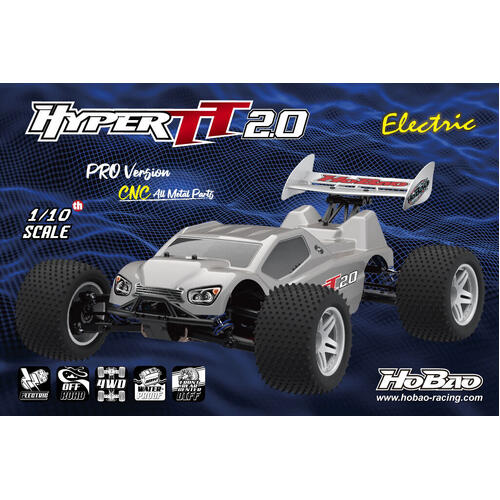

1/10 hyper tt 2. 0 pro electric truck arr- clear body

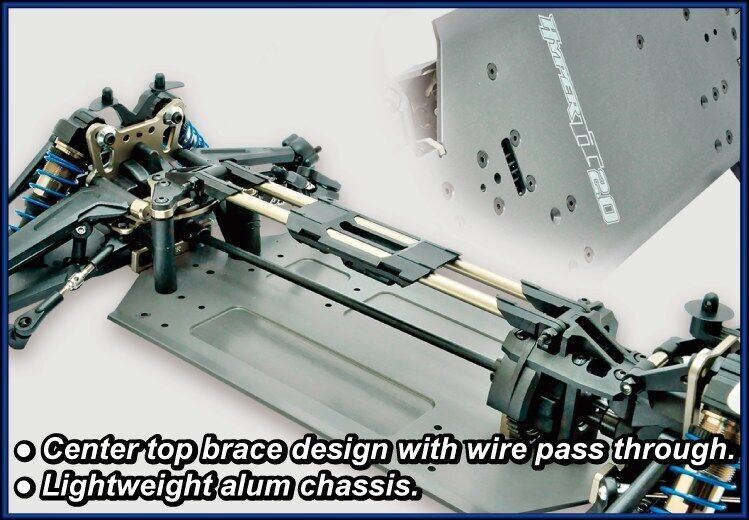

Chassis:

• Lightweight.
• Hard anodised CNC aluminum.
• 3mm thick.

Centre Top Brace:

• Wire pass through.
• Easy to remove with a single screw.

Drive:

• Central: Single ø4mm Hardened steel centre driveshaft.
• Optional Aluminium driveshaft H0P1-0072.
• Front: CVA axles, ø3.2mm Hardened steel.
• Rear: Dogbone, axles, ø3.2mm Hardened steel

Differentials:

• Center diff is directly connected to rear diff.
• Front, Rear and Center Differential, Metal Bevel gear, Anti-leakage Differential housing.
• Pinion Gear: 10T (MOD 1)/ Ring Gear: 39T (MOD 1).
• Center Spur Gear: 40T (MOD 1).
• Front differential filled with 5K silicone oil.
• Center differential filled with 5K silicone oil.
• Rear differential filled with 3K silicone oil.

Shocks:

• Filled with 600 silicone oil.
• Aluminium 12mm Big Body.
• 3.5mm Shaft.
• Aluminium Adjustable Ring.
• Shock Cap Protector.

Spring:

• Front: 0.86kg/cm, L=50mm, Blue.
• Rear: 0.64kg/cm, L=65mm, Blue.
• Optional Front Spring H0P1-0073: 1.00 kg/cm, L=50mm, Grey.
• Optional Rear Spring H0P1-0074: 0.73kg/cm, L=65mm, Grey.

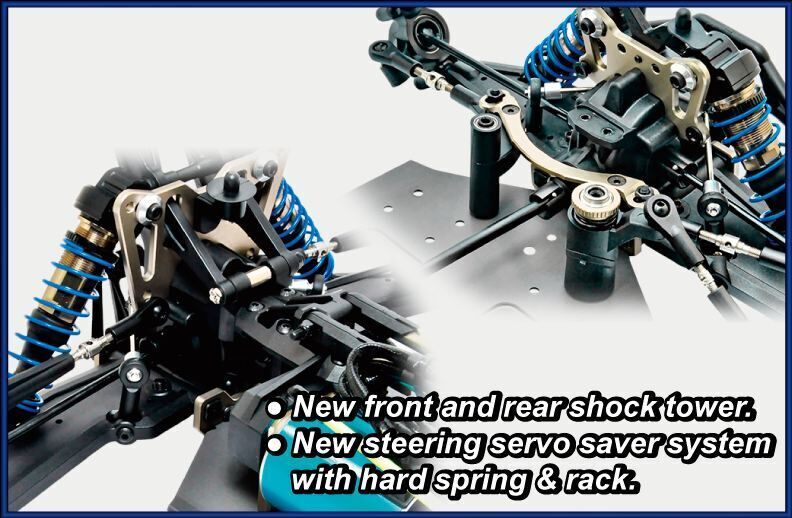

• Shock Tower: 3mm, CNC aluminium.

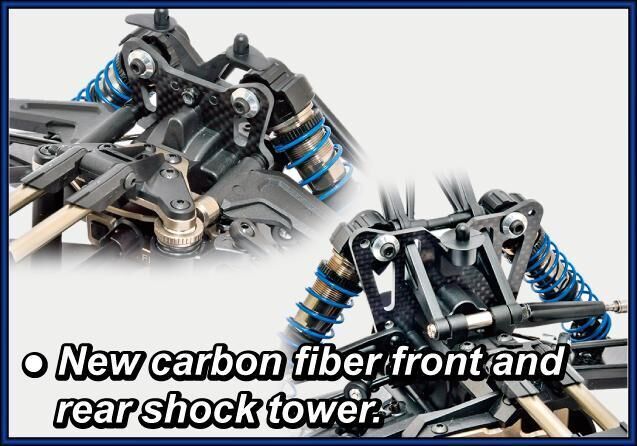

• Optional carbon fiber shock tower, Front tower H0P1-0070 & Rear tower H0P1-0071.

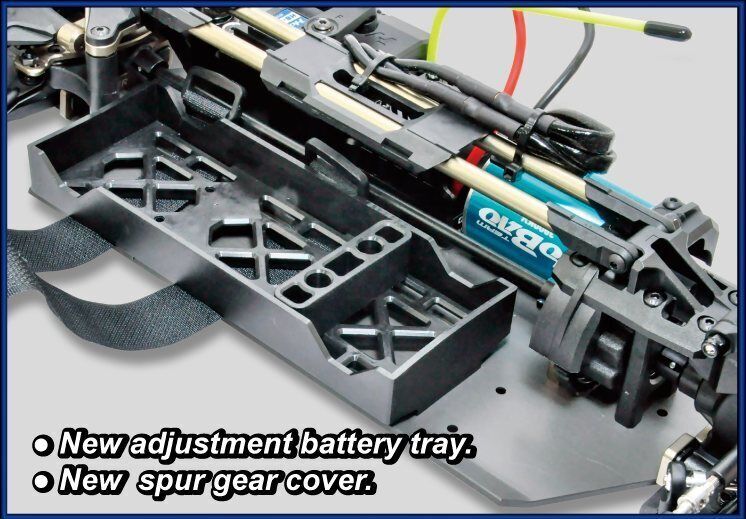

Battery tray:

• Motor Gear: 13T (MOD 1).
• Spur Gear: 40T (MOD 1).

Motor Mount:

• CNC aluminium laydown motor mount.
• Fitting for motors with size below 38mm.
• Spur gear cover.

Tyres:

• Pin-spoke tyres.

Wheels:

• 5-Spoke wheels.
• White.
• 12mm Hex.
• Diameter 62mm.
• Width 51.2mm.

Ball Bearings:

• Full set included.

Caster:

• Adjustable.

Camber:

• Adjustable.

Needed To Complete

• Motor
• ESC
• Servo
• Transmitter
• Receiver
• Battery
• Charger
• Paint
• Tyre Glue
