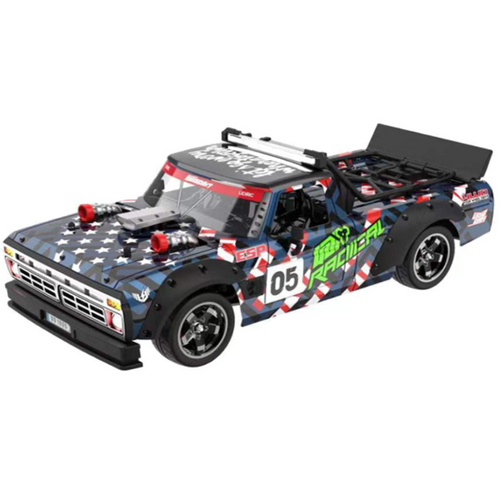

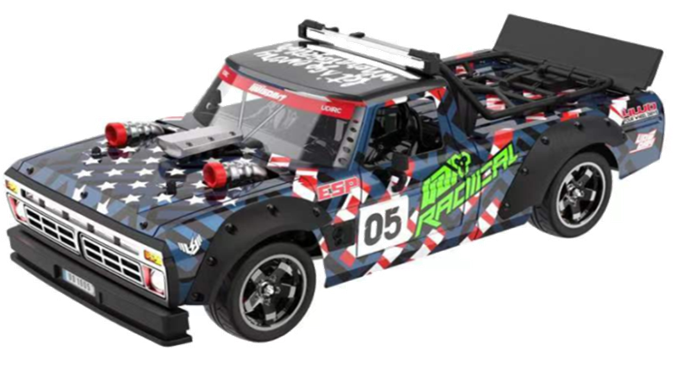

UDIRC Radical 1/10 Brushless Muscle Car 2/4WD RTR – UD1005

Experience the aggressive styling and exciting performance of the UDIRC Radical UD1005 1/10 Muscle Car.

Designed as a high-performance road racing and drifting RC car, the UD1005 combines a powerful 4500KV Hobbywing brushless motor, waterproof 60A Hobbywing ESC and selectable 2WD/4WD drivetrain.

The vehicle features realistic muscle-car styling, controllable LED lighting, independent suspension, oil-filled differentials and high-speed sealed ball bearings throughout. The result is an RC car that combines impressive scale appearance with fast and realistic driving dynamics.

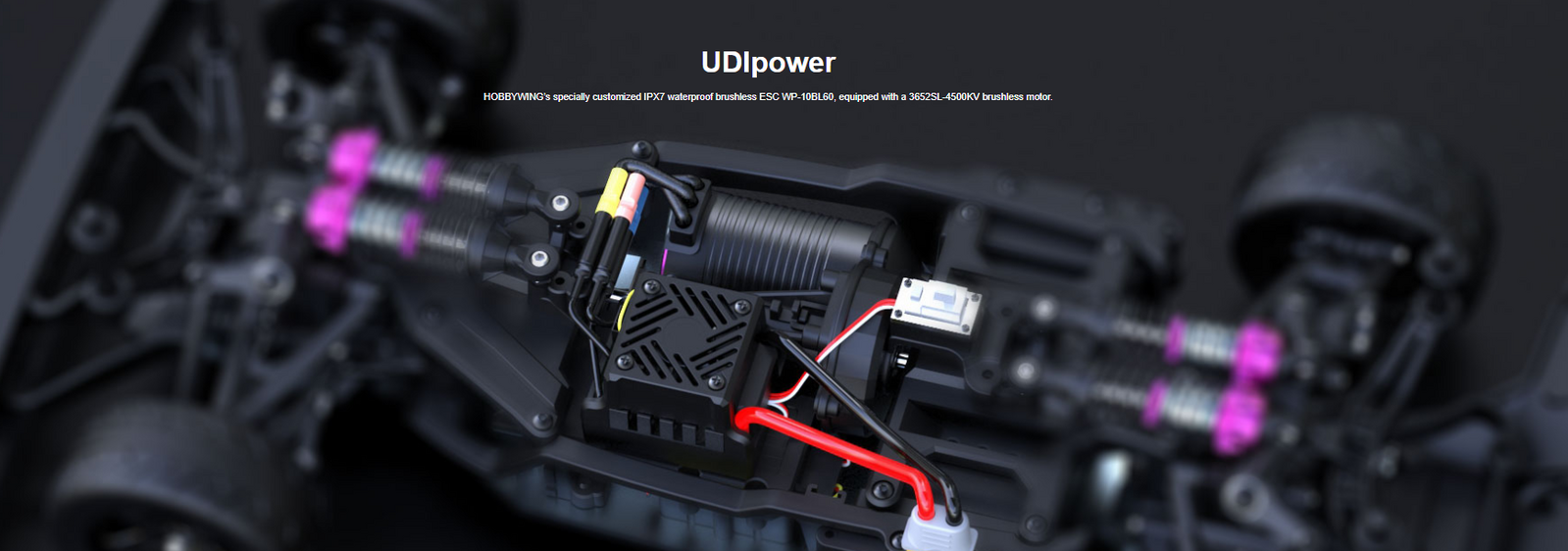

Powerful 4500KV Hobbywing Brushless Motor

The UD1005 is equipped with a Hobbywing 4500KV brushless motor, providing strong acceleration and high-speed performance.

The motor features:

• 4500KV output
• Brushless design
• 3.175mm output shaft
• 3.5mm bullet connectors
• Approximately 258.7g motor weight
• 52mm motor length
• 36mm motor diameter

The motor is matched with a Hobbywing 60A waterproof ESC for reliable performance.

Hobbywing 60A Waterproof ESC

The included Hobbywing WP-10BL60 60A brushless ESC provides reliable power for the high-performance brushless system.

Features include:

• 60A continuous current
• 2S–3S LiPo compatible
• 6.0V BEC
• 3A BEC current
• IPX7 waterproof rating
• Cooling fan

This allows the UD1005 to be operated with both 2S and 3S LiPo batteries.

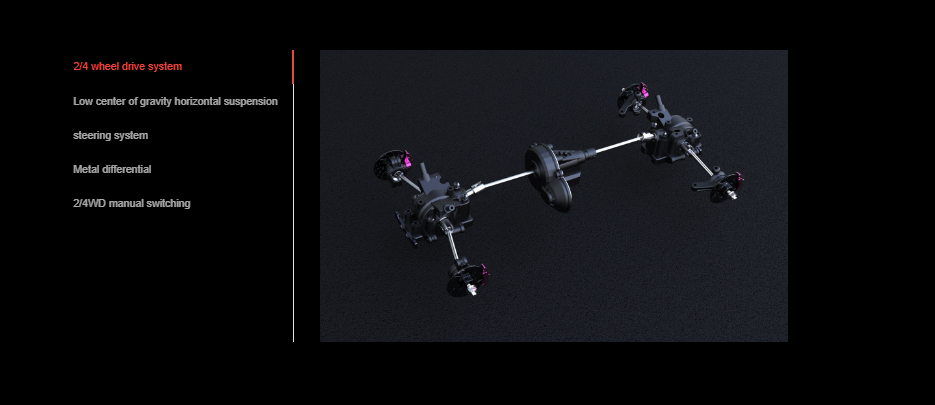

Selectable 2WD / 4WD

One of the standout features of the UD1005 is its 2WD/4WD selectable drivetrain.

The vehicle can be switched between:

• 2WD for rear-wheel-drive drifting and a more tail-happy driving experience
• 4WD for maximum traction and high-speed control

The 2/4WD selection is controlled through the vehicle's central gearbox. The official UDIRC manual specifically shows the selectable 2WD and 4WD system.

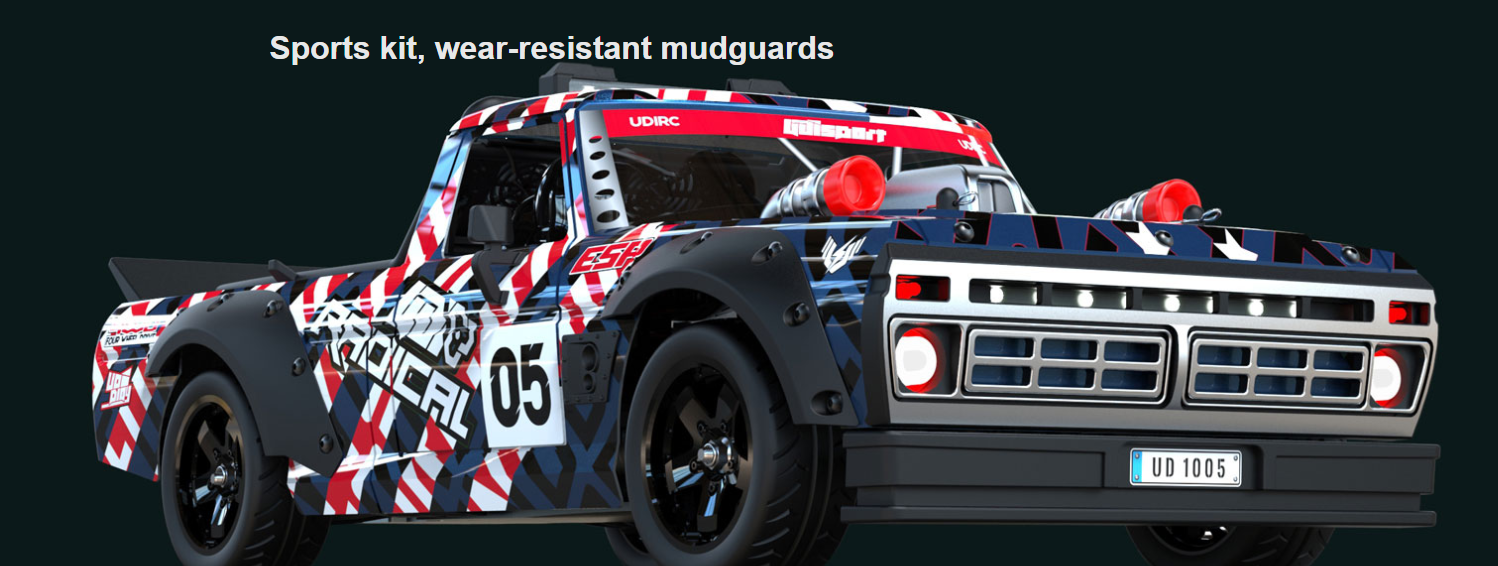

Realistic Muscle Car Styling

The Radical features a detailed PVC bodyshell designed to replicate the aggressive appearance of a modern muscle car.

Scale-inspired details include:

• Detailed muscle-car body
• Front bumper
• Rear bumper
• Simulated brake calipers
• Brake-disc style wheel adapters
• Simulated aerodynamic fan
• Large road tyres
• Detailed lighting system

The body combines realistic appearance with the durability required for high-performance RC driving.

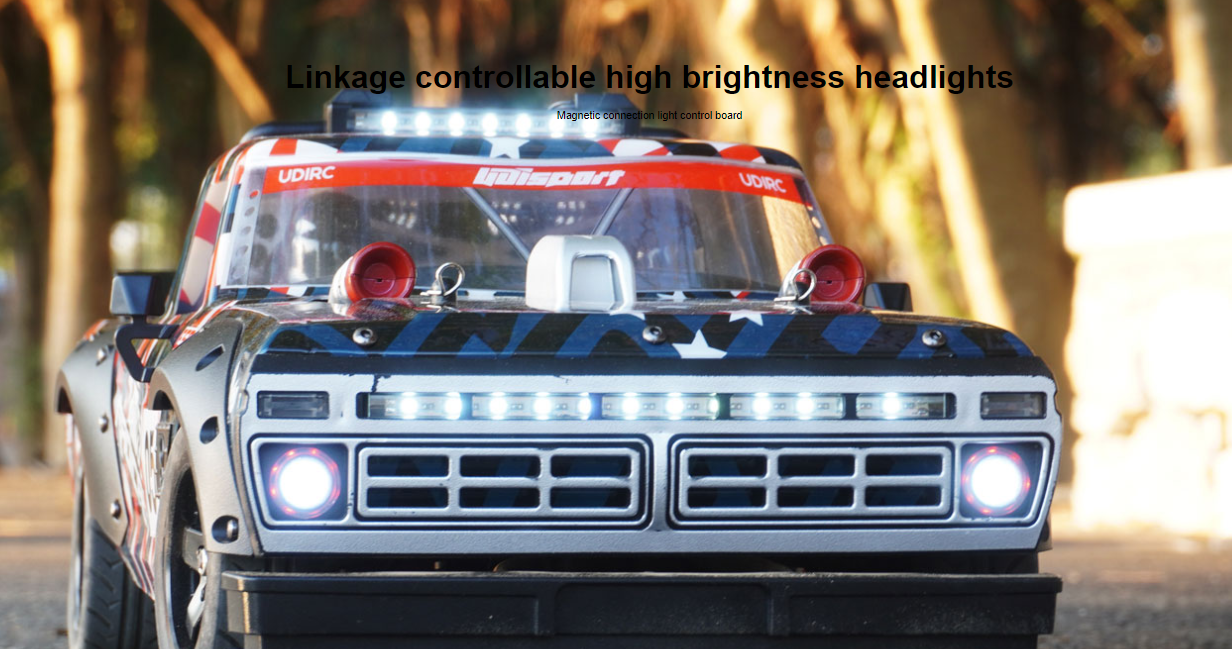

Advanced LED Lighting System

The UD1005 features an extensive lighting system for an impressive scale appearance.

The lighting system includes:

• Bright LED headlights
• Controllable roof lights
• Front lighting
• Rear lights
• Brake lights
• Reverse lights
• Working turn signals
• Fog lights

The lighting functions are controlled electronically and add to the realism of the vehicle when driving.

Realistic Drifting Performance

The UD1005 has been designed to provide proportional appearance and realistic drifting dynamics.

The combination of selectable 2WD/4WD, independent suspension and high-output brushless power allows the vehicle to be configured for different driving styles.

Run in 2WD for rear-wheel-drive drifting or switch to 4WD for improved traction and high-speed stability.

Independent Suspension

The vehicle uses independent suspension at the front and rear with damping systems designed to provide controlled handling.

The suspension is designed to keep the tyres planted while allowing the vehicle to absorb bumps and uneven surfaces.

Oil-Filled Differentials

The drivetrain incorporates oil-immersed front and rear differentials.

The oil-filled differential system helps distribute power smoothly between the wheels and improves handling during cornering and drifting.

High-Speed Sealed Ball Bearings

High-speed sealed ball bearings are used throughout the vehicle.

These bearings reduce friction in the drivetrain and suspension, helping provide smooth operation and efficient power transfer.

Strong Metal Drivetrain

The UD1005 uses metal drivetrain components designed to handle the power generated by the 4500KV brushless motor.

Features include:

• Metal driveshafts
• Steel driveshafts
• Heavy-duty splined front driveshaft
• Adjustable centre gearbox
• Oil-filled differentials
• Front and rear drivetrain components

6KG Digital Steering Servo

A 6KG digital steering servo provides the steering power required for the vehicle's large road tyres.

The steering system features:

• Dual bellcrank steering
• Bearing-supported steering
• Integrated servo saver
• Adjustable steering linkage

This provides precise steering control while helping protect the servo and steering components during impacts.

Key Features

• UDIRC Radical Muscle Car
• Product Code: UD1005
• 1/10 scale
• Road racing / drift car
• Brushless power system
• Hobbywing 4500KV brushless motor
• Hobbywing 60A waterproof ESC
• 2S–3S LiPo compatible
• Selectable 2WD / 4WD
• 6KG digital steering servo
• Oil-filled front and rear differentials
• Independent front and rear suspension
• Metal driveshafts
• Steel drivetrain components
• High-speed sealed ball bearings
• 63mm highway tyres
• Brake-disc style wheel adapters
• Simulated brake calipers
• PVC bodyshell
• Front and rear bumpers
• Extensive LED lighting
• Controllable headlights
• Roof lights
• Working turn signals
• Brake lights
• Reverse lights
• Fog lights
• Simulated aerodynamic fan
• 2.4GHz radio system
• RTR configuration

Specifications

• Brand: UDIRC
• Model: Radical Muscle Car
• Product Code: UDI-UD1005
• Model No.: 1005
• Scale: 1/10
• Vehicle Type: Road Racing / Drift Car
• Drive: 2WD / 4WD Selectable
• Motor: Hobbywing 4500KV Brushless
• ESC: Hobbywing WP-10BL60 60A Waterproof
• Battery: 2S–3S LiPo
• Steering Servo: 6KG Digital
• Differentials: Oil-Filled Front & Rear
• Suspension: Independent Front & Rear
• Tyres: 63mm Highway Tyres
• Length: 478mm
• Width: 209mm
• Height: 158mm
• Wheelbase: 275mm
• Front Track: 168mm
• Rear Track: 168mm
• Ground Clearance: 20mm
• Weight: Approximately 1.92kg
• Radio: 2.4GHz
• Drive Modes: Forward / Brake / Reverse
• Completion Level: RTR

What's Included

• UDIRC UD1005 Radical Muscle Car
• Hobbywing 4500KV brushless motor
• Hobbywing 60A waterproof ESC
• 6KG digital steering servo

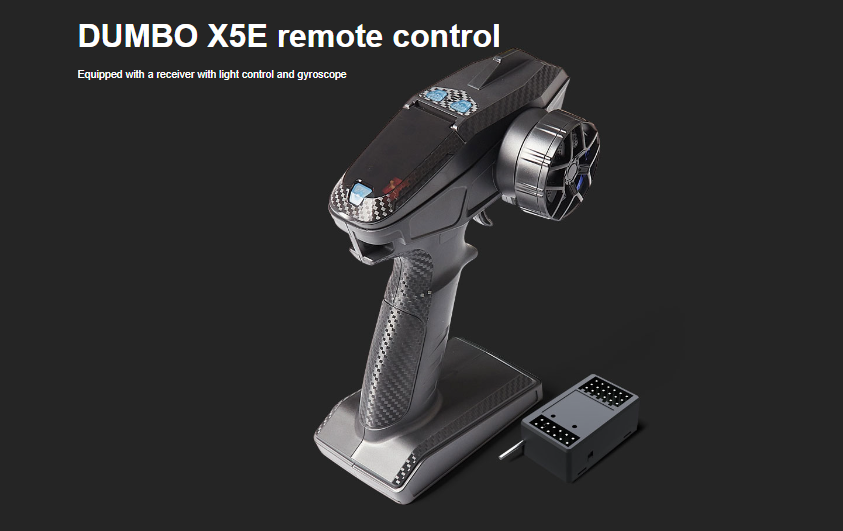

• 2.4GHz transmitter and receiver
• LED lighting system
• PVC bodyshell
• Highway tyres
• Operation guide
• Body stickers

Battery Required

The UD1005 is compatible with 2S–3S LiPo batteries.

The battery is not included in the standard UD1005 specification. Some retail packages may be supplied with a battery and charger, so please check the specific package contents before ordering.

You will also need:

• 4 × AA batteries for the transmitter
• Compatible LiPo charger

Ready-to-Run

The UD1005 is supplied as an RTR (Ready-to-Run) model, requiring only battery installation and basic preparation before driving.

The combination of brushless power, selectable 2WD/4WD and realistic lighting makes the Radical a versatile choice for both high-speed road driving and controlled drifting.

Please note: This is a high-performance RC model and should only be operated in a suitable open area away from people, vehicles and property. Actual speed and runtime will vary depending on battery, surface, gearing and driving conditions.
