Equipped with a power sharing function for the igniter
Equipped with an igniter power supply sharing function It is possible to share the igniter power supply using the receiver battery. As a result, two batteries can be consolidated into one.
Built-in kill switch function
It is possible to control the ON/OFF operation of the igniter power supply from the transmitter side. When the attached LED lamp is lit, the igniter power is turned on, and visibility is good and safe.
* The kill switch function of the KRG-01 is initially set to 5ch.
Equipped with engine speed recognition function
It utilizes the rotation sensor that comes with the engine to detect the engine speed at all times. By using a transceiver equipped with a telemetry function, the engine speed is displayed on the transmitter screen.
Built-in governor function
When mounted on a helicopter, the throttle governor function can be used. It suppresses engine rotation fluctuations and makes it easy to adjust.
* If you use the optional U2S-1, you can set the governor in more detail

• The igniter power supply can be shared with the receiver battery. Batteries that used to be two can be consolidated into one.
• By using a transceiver equipped with a telemetry function, the engine speed is displayed on the transmitter screen.
• U2S-1 (optional) Connected to a PC to be a governor, etc. You can change the configuration data (74001050)

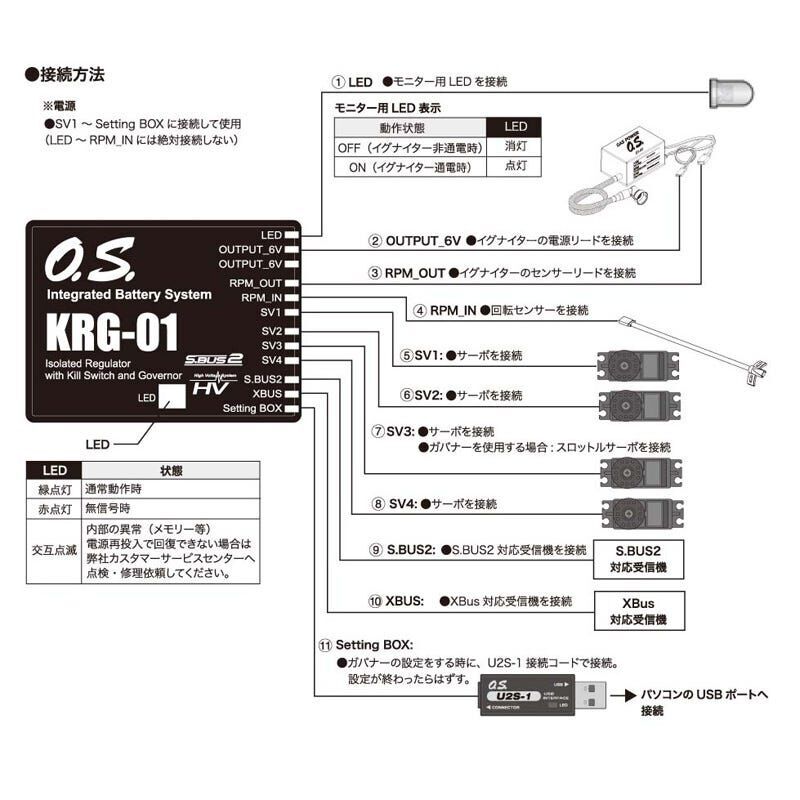

There are two types of operation of the KRG-01.
? Please refer to the following to set the transmitter side to which operation you want to perform.

Normal Mode
Use the switch to turn the igniter on and off.
How to set it up
Decide which channel and toggle switch to turn the igniter on or off.
? Use the endpoint function of the transmitter to set the operating amount to "100%" for both left and right sides. Turn on the power to the KRG-01.
? Operate the toggle switch on the transmitter side to check the direction of operation, etc.
? If you want to reverse the ON/OFF direction, please use the reverse function of the transmitter to change it.

Safe Mode
Two switch operations within 0.5 seconds turn the igniter on and off. (Prevention of erroneous operation)
How to set it up
Decide which channel and toggle switch to turn the igniter on or off.
? Use the endpoint function of the transmitter to set the operating amount to "50%" for both left and right sides.
? Turn on the power to the KRG-01.
? Operate the toggle switch on the transmitter side to check the direction of operation, etc.
? If you want to reverse the ON/OFF direction, please use the reverse function of the transmitter to change it.

Precautions
* If the neutral is shifted significantly with sub-trim, etc., it may not be possible to turn it on / off normally, so please set the sub-trim to "0".
? * If the toggle switch is set to ON after the transmitter is turned on, it will not turn on unless it is turned off once.
* After changing the value of the transmitter endpoint, be sure to turn the KRG-01 off and on again.
