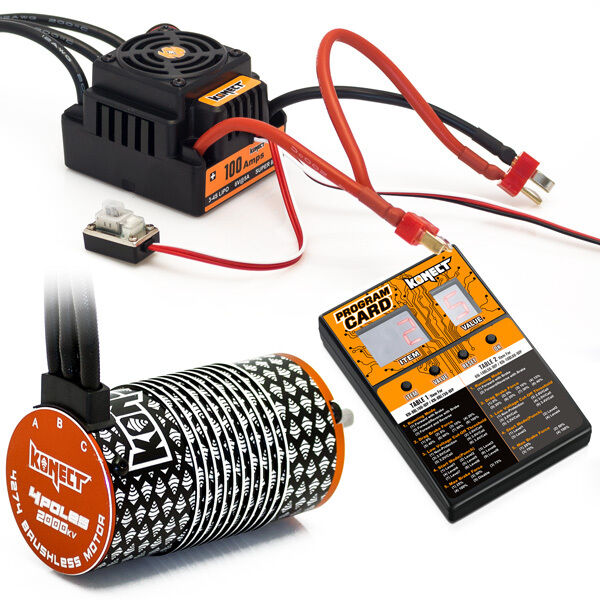

KONECT COMBO BRUSHLESS 1/8 100Amp WP + Motor 4P. 4274 2000KV+prog card - KN-COMBO-L2

Konect ESC 100Amp WP
Compatible with sensorless motor.
100A continuous power.
650A peak power.
Resistance 0.0008 ohm
Power supply 4 to 12 cells Ni-mh
Power supply 2 to 4S in Lipo (from 7.4 to 14.8v)
Dimensions 59.5 mm (L) x 48 mm (l) x 42 mm (H) with fan
Weight 173 gr


Konect 2000KV
Motor Type 4274 Brushless Motor 4 Poles 1/10 "Sensorless 2000KV
Motor shaft: 5 mm
Cage diameter: 42 mm
Motor length; 74 mm


Konect programming
card The programming card is plugged into the fan socket via a cable supplied in the box
It is possible to adjust:
- The operating mode: front + brake - front + rear + brake
- The drag brake: from 0 to 40%
- The cut-off voltage: from 2.8V to 3.4V per cell or no protection
- The punch at start-up : Level 1 to 4
- Braking force: 25, 50, 75 or 100%
